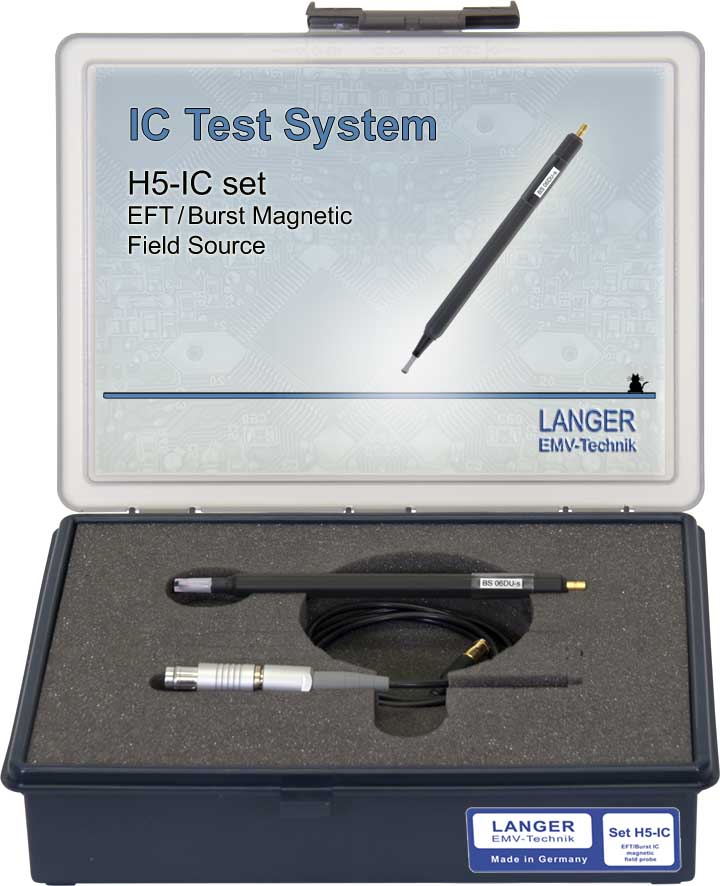

H5-IC set
电快速瞬变脉冲群磁场源组
-
-

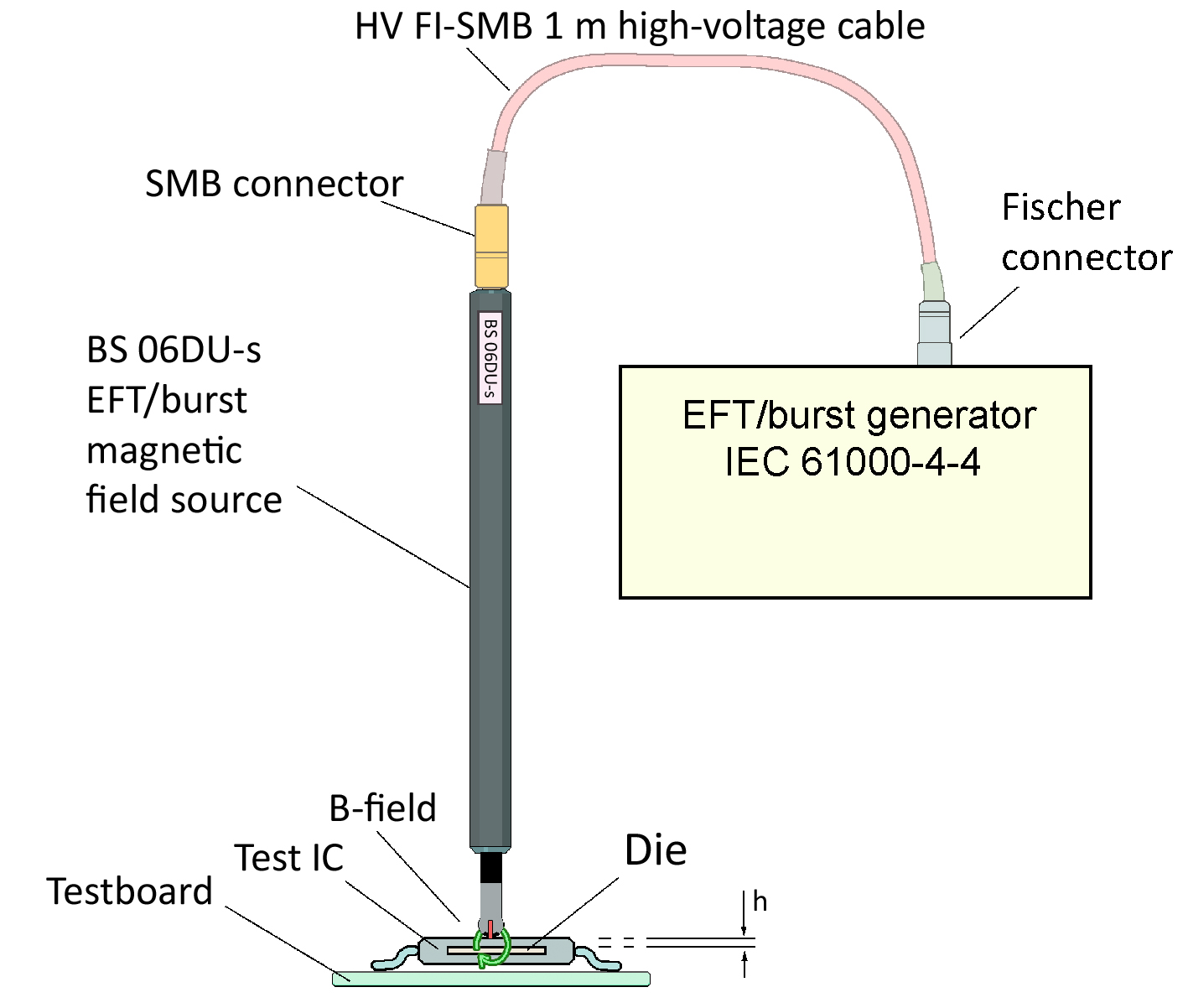

Principle of application with BS 06DU-s magnetic field source -

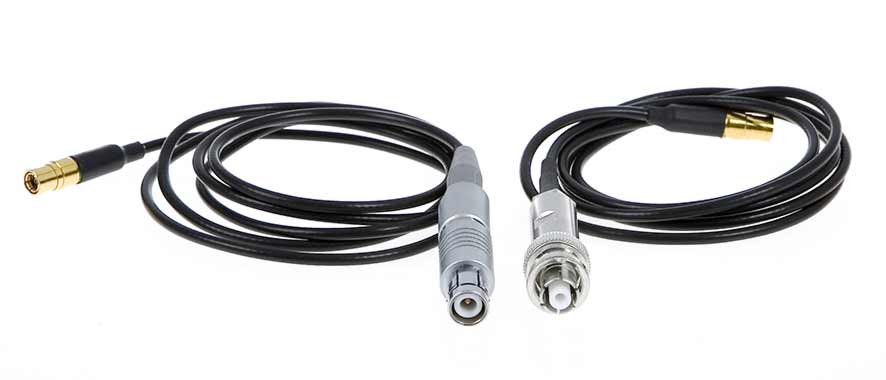

Fischer connector and SHV connector -
Scope of delivery with BS 06DU-s and HV SHV-SMB 1 m cable -

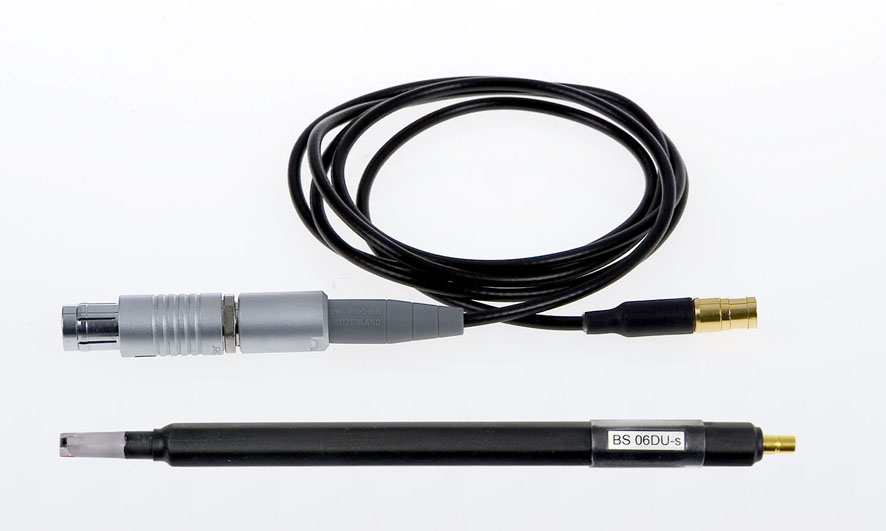

Scope of delivery with BS 06DU-s and HV FI-SMB 1 m cable
![H5-IC set, 电快速瞬变脉冲群磁场源组](/fileadmin/Bilder300/2020.04.24 Koffer H5-IC set wen.jpg?v=1721124529905)
![Principle of application with BS 06DU-s magnetic field source](/fileadmin/Bilder300/2020.04.07-04 BS 06DB-s Wirkungsweise en.jpg?v=1721124532028)
![Fischer connector and SHV connector](/fileadmin/Bilder300/2015.01.20 Fischer connector and SHV connector web.jpg?v=1721124532028)
![Scope of delivery with BS 06DU-s and HV SHV-SMB 1 m cable](/fileadmin/Bilder300/2020.05.05 H5-IC set BS 06DU-s mit SHV_Lieferumfang.jpg?v=1721124532028)
![Scope of delivery with BS 06DU-s and HV FI-SMB 1 m cable](/fileadmin/Bilder300/2020.05.05 H5-IC set BS 06DB-s mit Fischer_Lieferumfang.jpg?v=1721124532028)
Delivery content

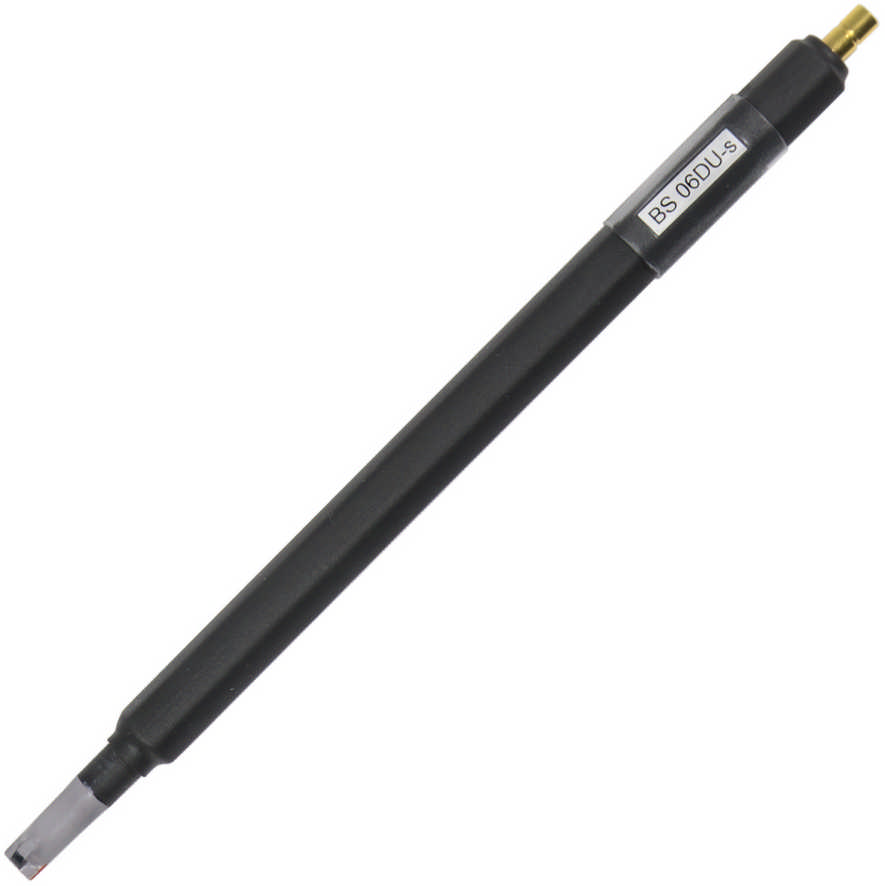

- 1x BS 06DU-s, 电快速瞬变脉冲群IC-磁场源
- 1x HV FI-SMB 1 m, SMB 高压电缆
- 1x H5-IC case
- 1x H5-IC m
Recommended products
Technical parameters
BS 06DU-s 电快速瞬变脉冲群磁场源 | |
探头尺寸 | (5 x 6) mm |
频率范围 | 0...560 MHz |
生成的最大磁感应强度 | 150 mT |
Waveform of the injected test pulse | IEC 61000-4-4 |
输出接口 | SMB, female, jack |
尺寸 (L x W x H) | (140 x 8 x 8) mm |
重量 | 15 g |
4 kV |
