| Type | Function |
|---|---|
| DB SA 11 | Magnetic field emission |
| DB SA 21 | Electric field emission |
| DB SF 11 | Susceptible to magnetic field |
| DB SF 21 | Susceptible to electric field |

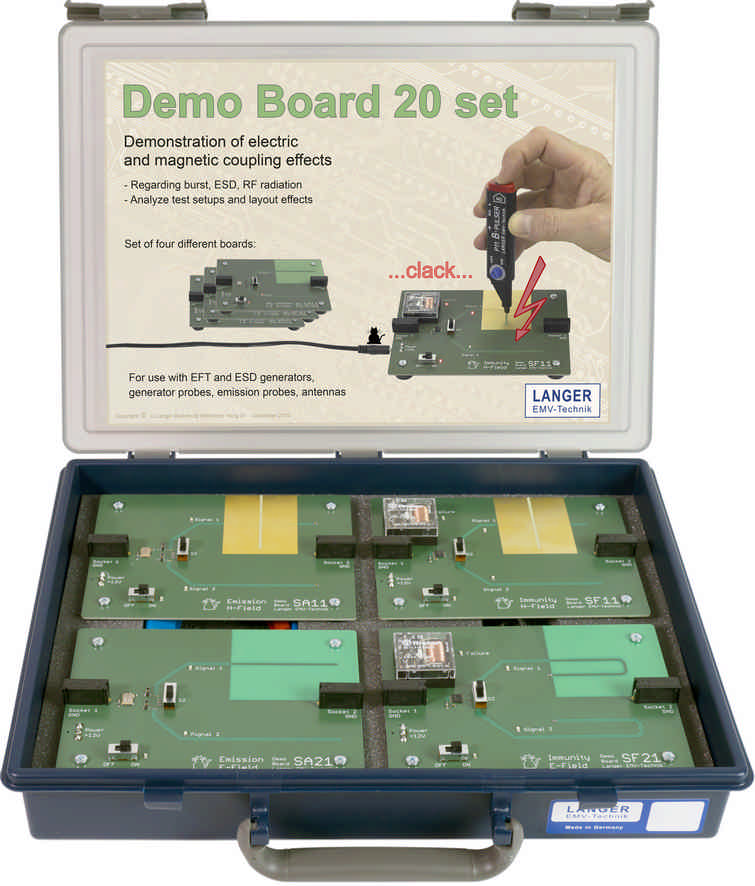

DB 20 set
-
-

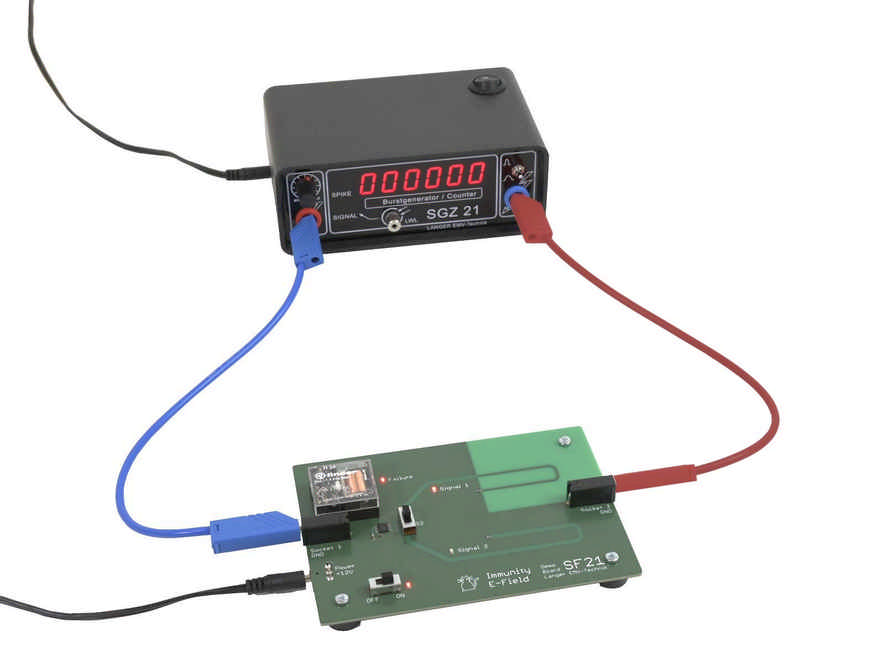

SF 21 demo board on SGZ 21 burst generator -

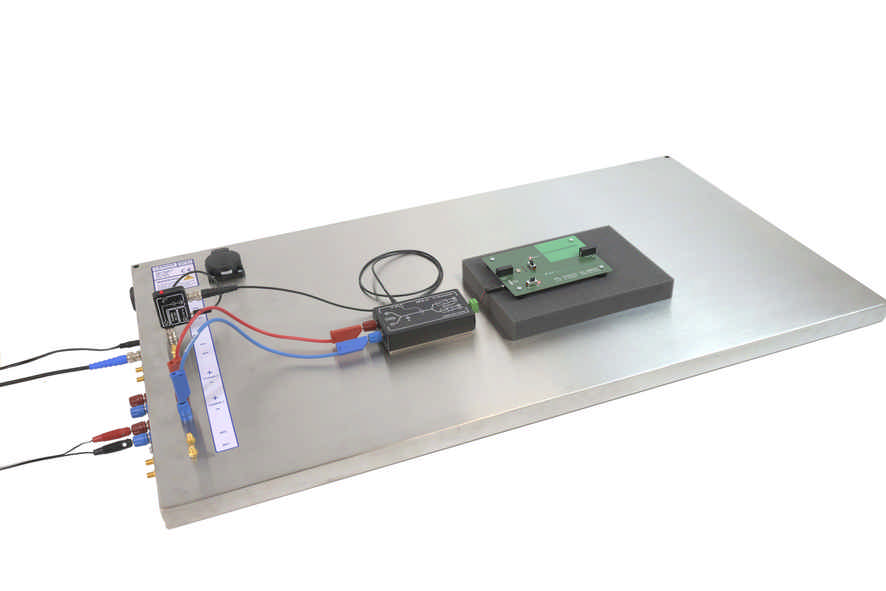

SA 21 demo board in application with ESA1 development system -

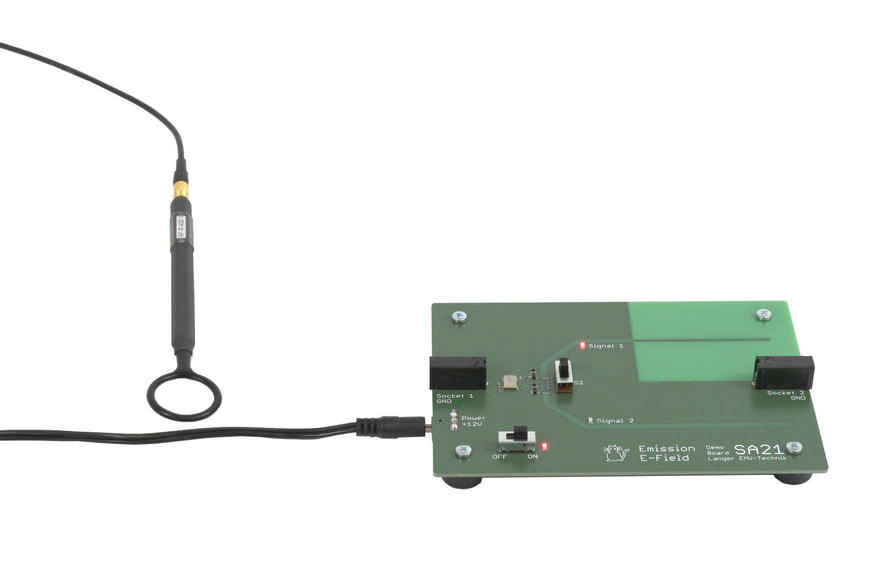

SA 21 demo board with RF-R 400 near-field probe on cable
The DB 20 set’s user manual presents various experiments and measurement set-ups using the development systems E1 Immunity and ESA1 Emission, the PT4 burst transformer and various near-field probes from Langer EMV-Technik GmbH.
These measurement set-ups are suggestions. The experiments and test set-ups can be simulated and modified in many ways with other measuring devices.
Delivery content
- 1x SA 11
- 1x SA 21
- 1x SF 11
- 1x SF 21
- 1x LK 25 cm bl, LK 25cm bl测试引线
- 1x LK 25 cm rt, LK 25cm rt 测试引线
- 1x NT FRI EU
- 1x Tape CuL
- 1x DB 20 m
- 1x A4 case
Recommended products
Technical parameters
| 尺寸 (L x W x H) | (338 x 57 x 260) mm |
