ICI-DP HH1000-15 set
-
-

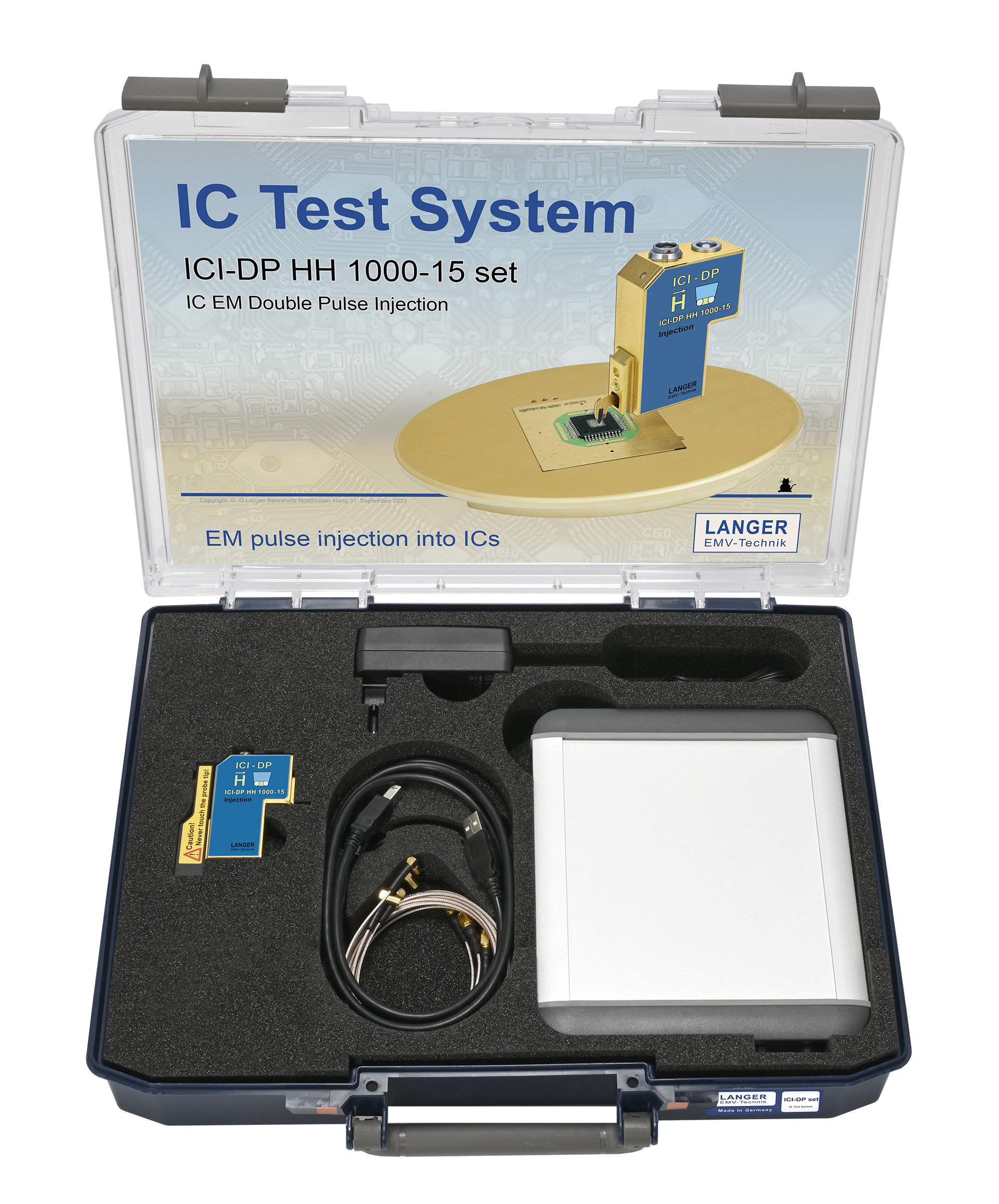

Contents of the case ICI-DP HH1000-15 set -
Schematic set-up with mover -
Fault injection measuring station with Langer IC scanner -
Scope of delivery

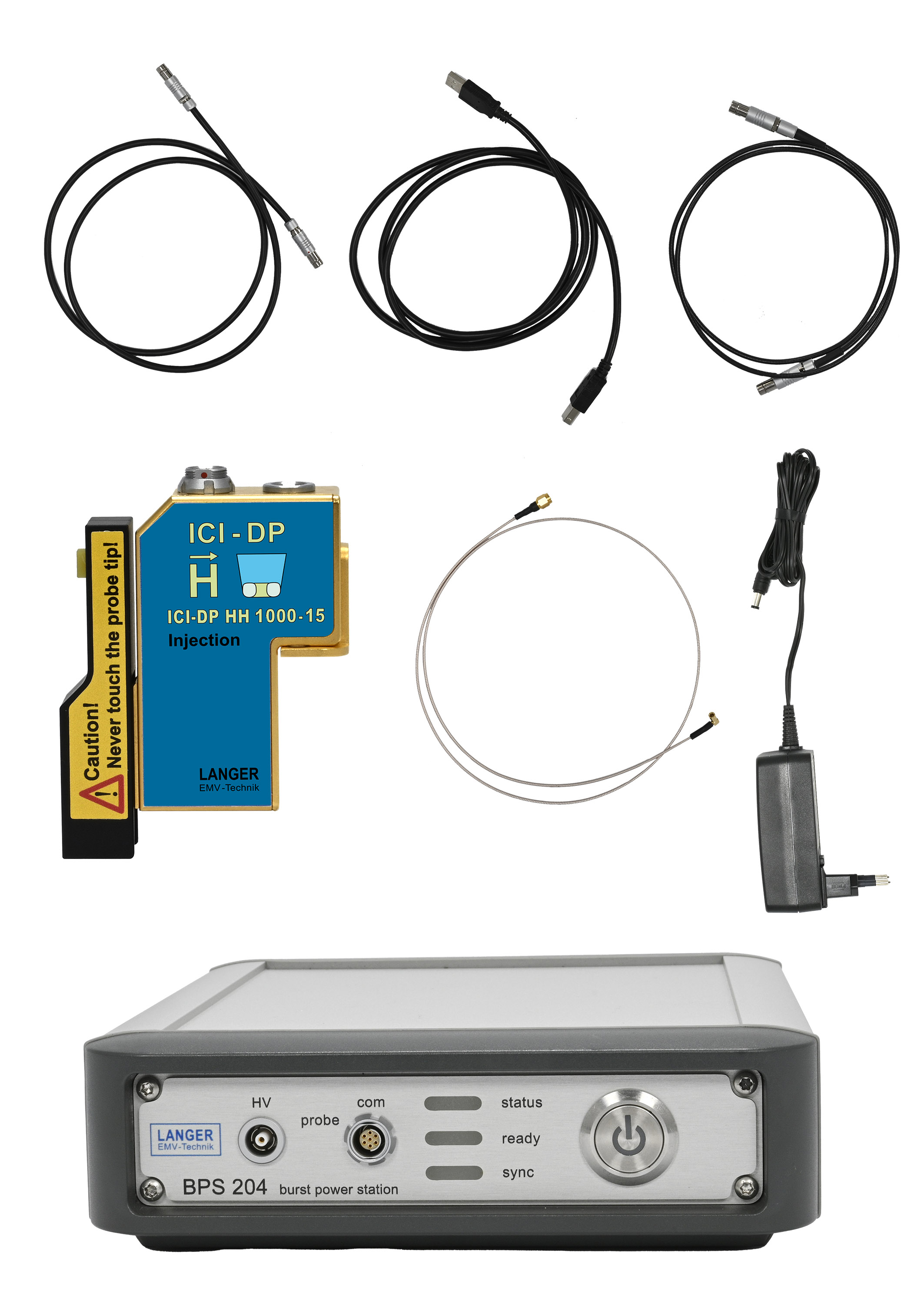

Delivery content

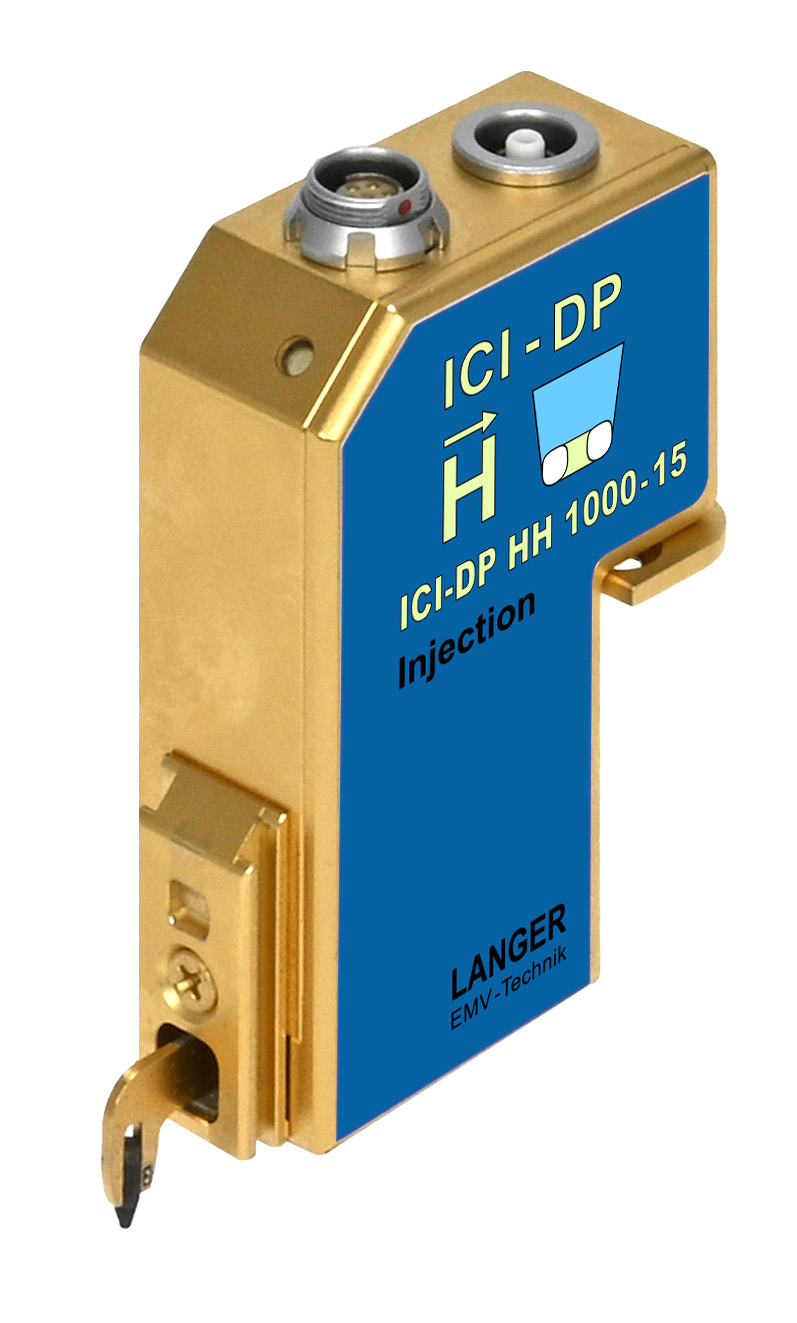

- 1x ICI-DP HH1000-15

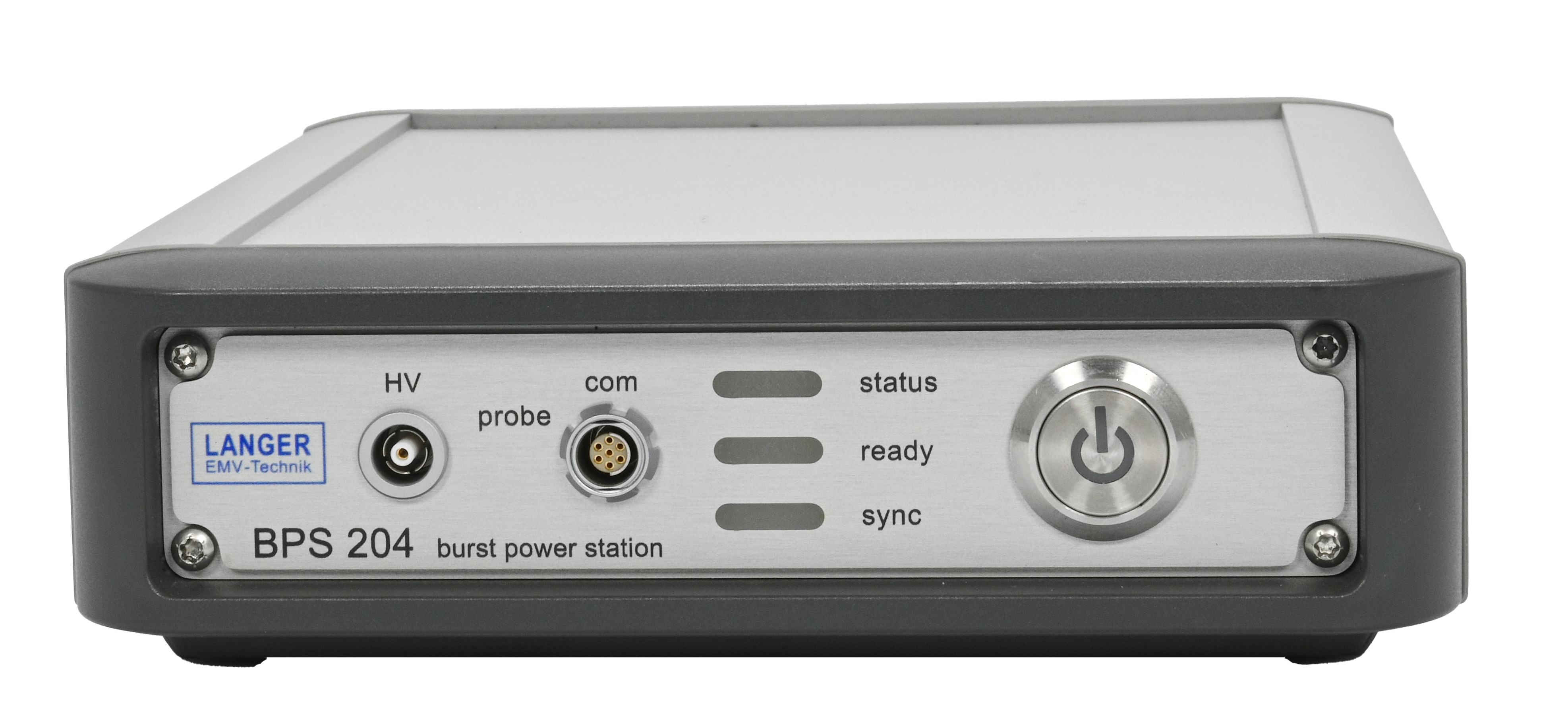

- 1x BPS 204

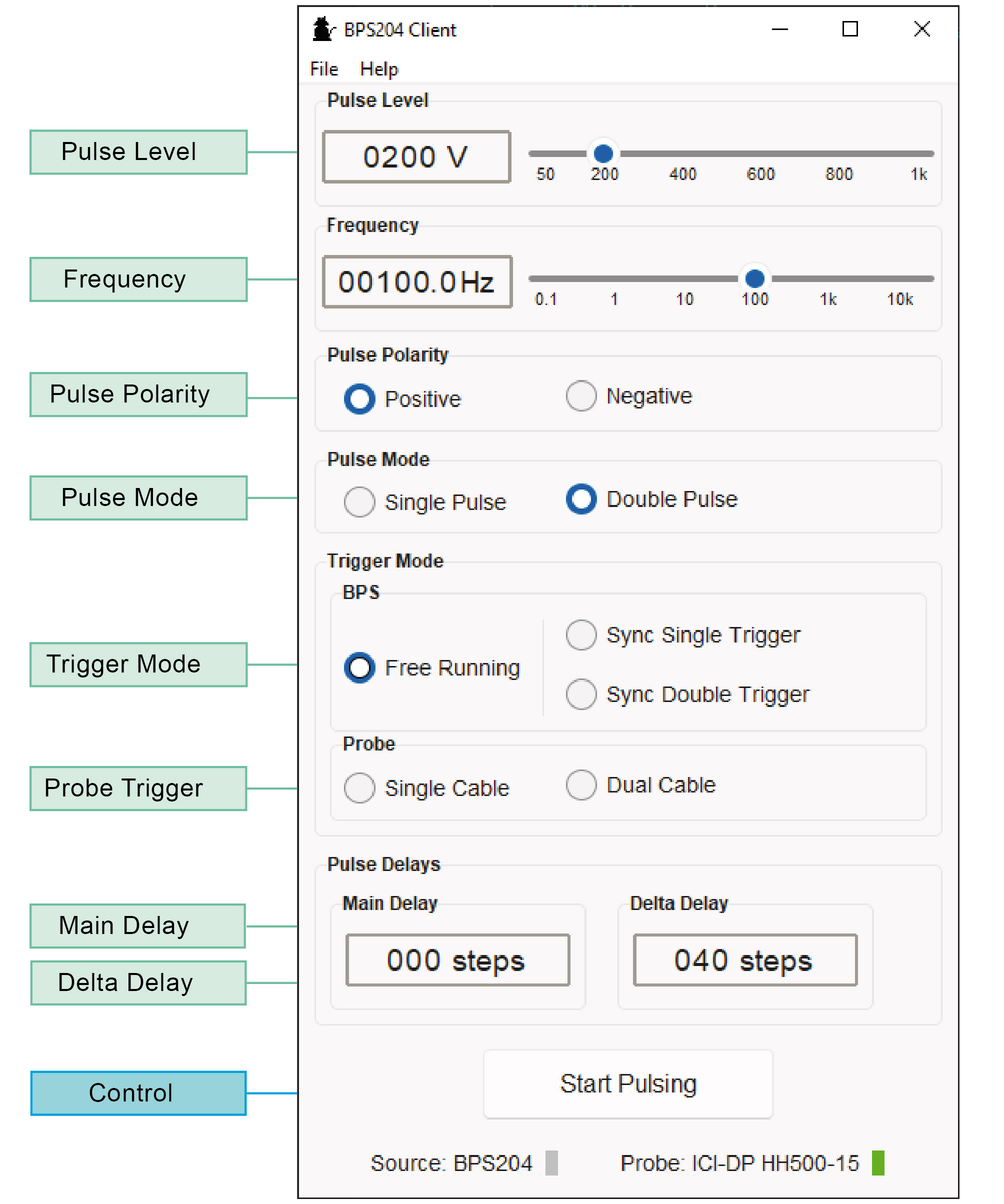

- 1x BPS 204-Client
- 1x HV FI-FI mini 1 m, 高压电缆
- 1x SK FI-FI mini 7P 1 m
- 4x SMA-SSMB 1 m
- 1x NT FRI EU 24V
- 1x USB-AB
- 1x ICI-DP case
- 1x ICI-DP set m
Technical parameters
| 探头尺寸 | Ø 1000 µm |
| 脉冲参数 | |
| 上升时间 | 2 ns |
| 25 ns (200 V) | |
| 极性 (set by software) | +/- |
| 电压 | 50 - 1000 V |
| max. Jitter (typ.) | ± 1 ns |
| Min. trigger pulse delay | 35 ns |
Delivery content details
