RF-R 400-1
磁场探头(30MHz-3GHz)
![RF-R 400-1, 磁场探头(30MHz-3GHz)](/fileadmin/Bilder300/Disturbance emission_near field probe_RF-R 400_function_en_wPZ.png?v=1723643593082)

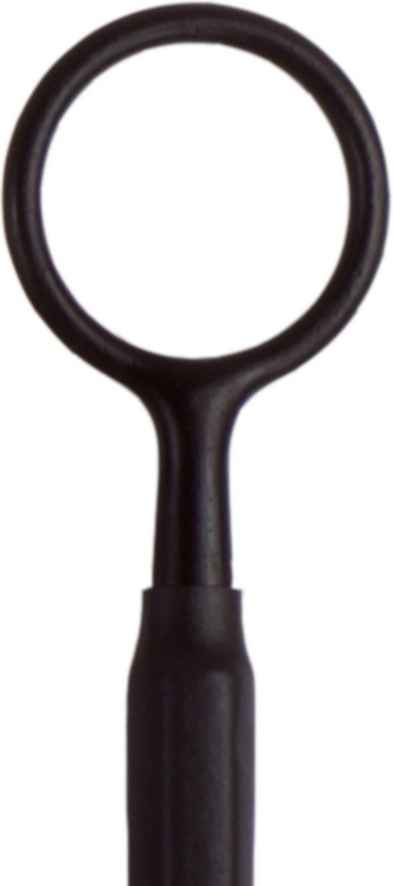

![Probe head](/fileadmin/Bilder300/2014.11.14 Sondenkopf RF-R 400-1_wPZ.jpg?v=1723643593082)
Short description
RF-R 400-1型磁场探头,由于其直径较大(25mm),因而灵敏度很高,适合在10cm以内的距离检测模块和设备。

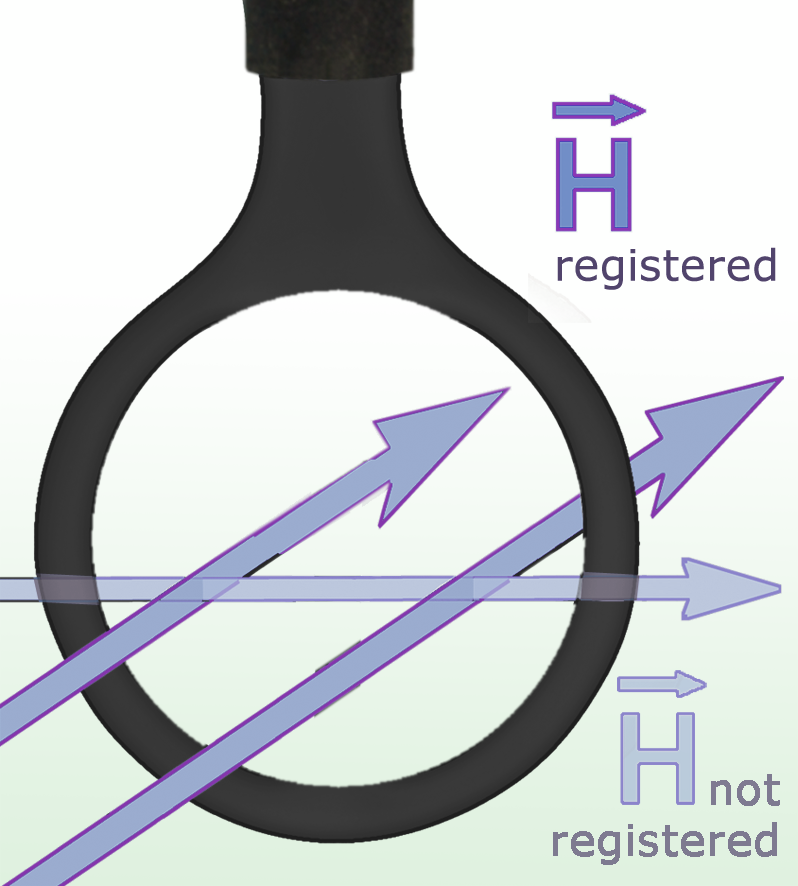

The RF-R 400-1 is a passive near-field probe. In principle it has the same structure as the probes RF-R 50-1 and RF-R 3-2. The near-field probe is small and handy. It has a current attenuating sheath and, therefore, is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. The H-field probe does not have an internal terminating resistance of 50 Ω.
