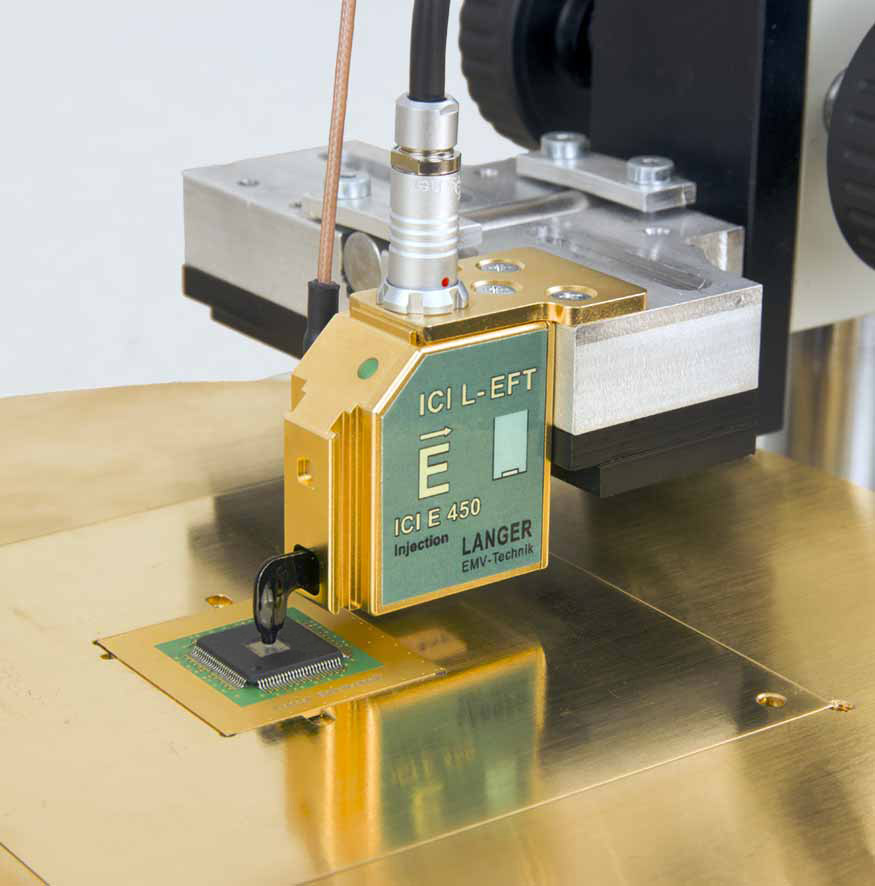

    Application of ICI E450 L-EFT pulse E-field source
ICI E450 L-EFT, Pulse E-Field Source Application of ICI E450 L-EFT pulse E-field source
  • ICI E450 L-EFT, Pulse E-Field Source
  • Application of ICI E450 L-EFT pulse E-field source
Short description

The ICI E450 L-EFT pulse electric field source couples fast transient pulses into a test IC (open die). This allows for side channel analysis or testing the immunity of individual areas of the IC.

Technical parameters
脉冲形状 横向扫描
探头尺寸 Ø 450 µm
Max. Displacement Current (Stripline 100 µm) 7 mA
脉冲参数
上升时间 < 2 ns
重复频率 0.1 Hz - 20 kHz
极性 (set by software) + / - / alternating
测量输出 50 Ω
触发器脉冲延迟 (Bypass Modus - Delay Line)
min. 触发器脉冲延迟 (typ.) 70 ns
max. 触发器脉冲延迟 (typ.) 420 ns
max. Jitter (typ.) ± 1 ns
电源电压 BPS 202
重量 70 g
尺寸 (L x W x H) (26 x 43 x 53) mm

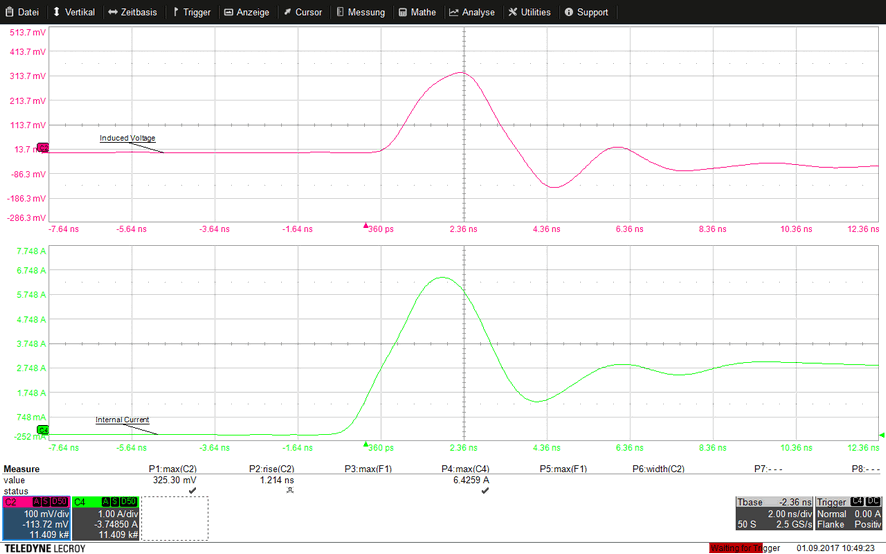

脉冲形状 脉冲形状

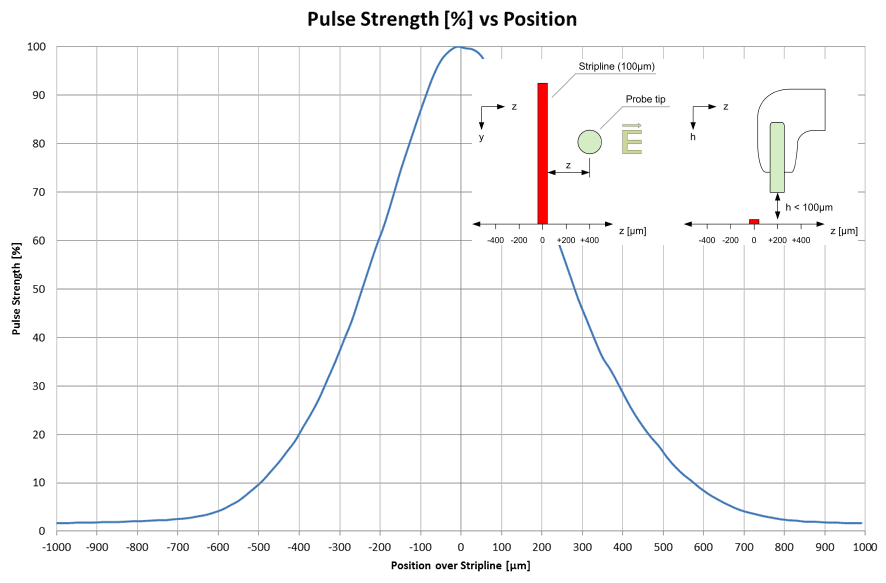

横向扫描 横向扫描

typ. - Refer to parameter sheet
