SX-E 03

电场探头（1GHz-10GHz）

Send enquiry Datasheet
  • SX-E 03, 电场探头（1GHz-10GHz）

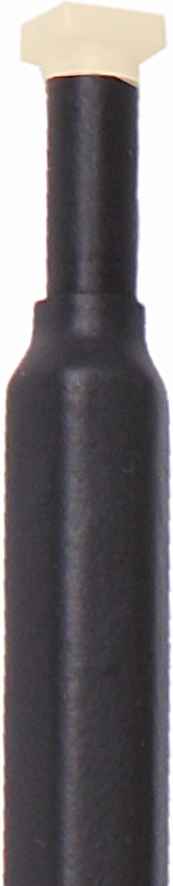

  • Probe head
    Probe head
SX-E 03, 电场探头（1GHz-10GHz） Probe head
  • SX-E 03, 电场探头（1GHz-10GHz）
  • Probe head
Short description

SX-E 03型探头底部的电极尺寸约为4x4mm，用于检测定位很小的电场源，例如导线、集成电路板上的单个元器件。

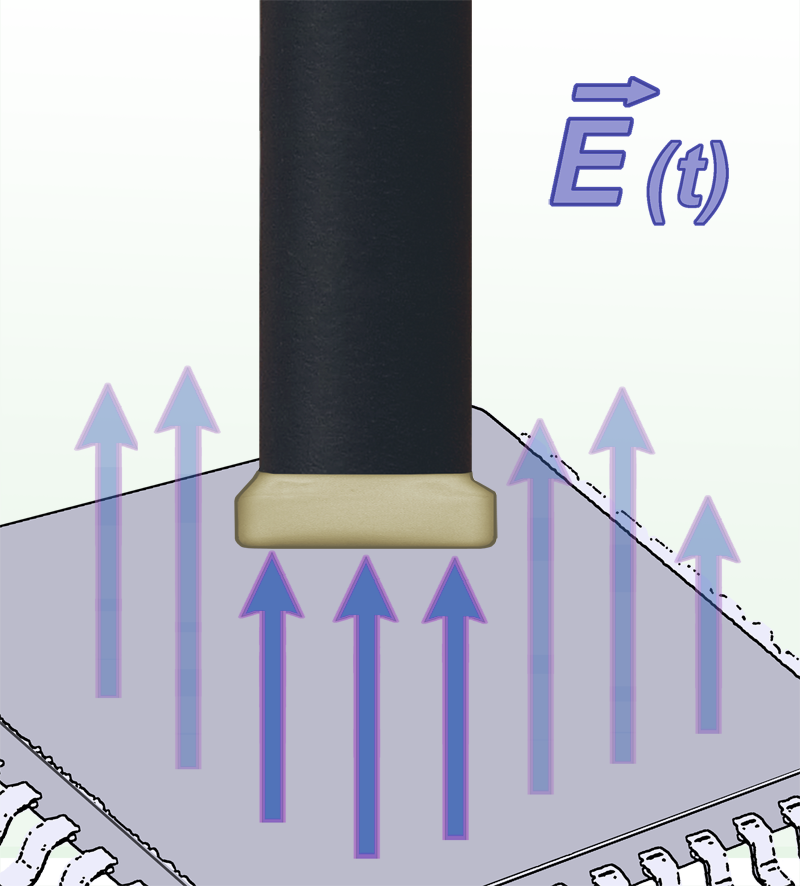

The SX-E 03 is a passive near-field probe. To measure, the probe head is positioned directly onto the measured object, due to higher electrical field strength at the measured object. The near-field probe is small and handy. It has a current attenuating sheath and its upper side is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input.

Technical parameters
频率范围 1 GHz ... 10 GHz
探头尺寸 ≈ (4 x 4) mm
输出接口 SMA, female, jack
频率特性 [dBµV] / [dBµV/mm] 频率特性 [dBµV] / [dBµV/mm] 频率特性 [dBµV] / [dBµV/mm]
电场校正曲线 [dBµV/mm] / [dBµV] 电场校正曲线 [dBµV/mm] / [dBµV] 电场校正曲线 [dBµV/mm] / [dBµV]
