P1401 / P1501 set
-
-

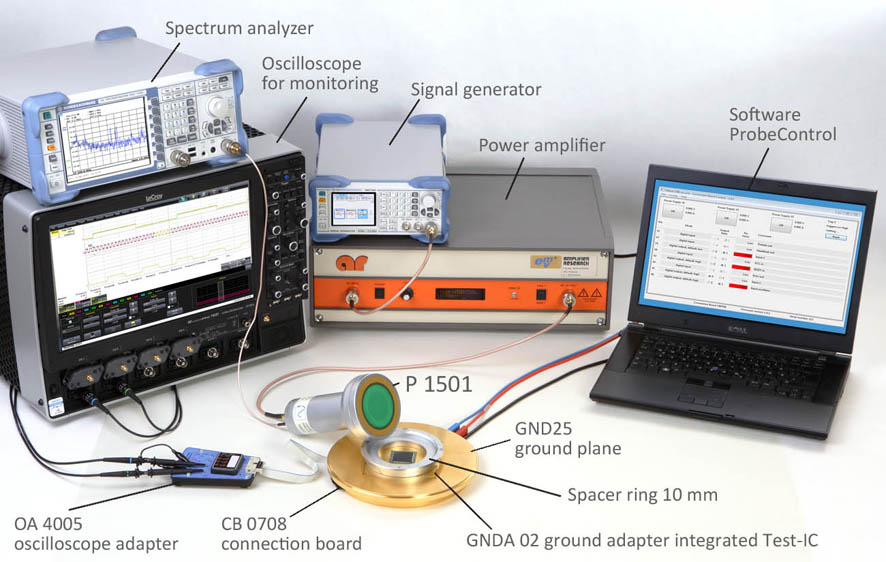

Measurement set-up with P1501 RF E-Field source -

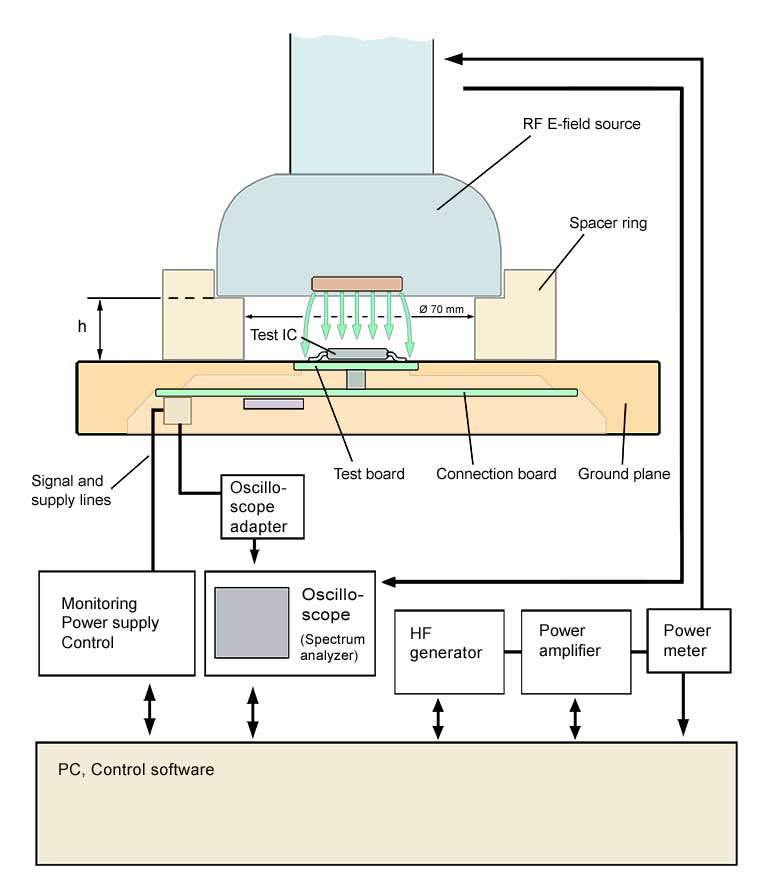

Measurement assembly with P1501 RF E-Field source (schematic) -
Scope of delivery Set 1401 / 1501 -
Measurement assembly to RF field injection
![P1401 / P1501 set](/fileadmin/Bilder300/2013.11.19 P1401 P1501 Koffer_freigestellt_wPZ.jpg?v=1721026804401)
![Measurement set-up with P1501 RF E-Field source](/fileadmin/Bilder300/IC disturbance immunity_RF coupling_field source_ P1501 set-up_eng_wGM.jpg?v=1721026806847)
![Measurement assembly with P1501 RF E-Field source (schematic)](/fileadmin/Bilder300/2018.03.26 HF-Messplatz P1500-e.jpg?v=1721026806847)
![Scope of delivery Set 1401 / 1501](/fileadmin/Bilder alt_neu/P1401_1501-201311.19-LU-weng.jpg?v=1721026806847)
![Measurement assembly to RF field injection](/fileadmin/Bilder300/IC disturbance immunity_RF coupling_field source_P1400 set-up scheme_eng_wGM.png?v=1721026806847)
Delivery content
- 1x P1401, 高频磁场源(~1GHz)
- 1x P1501, 高频电场源(~1GHz)
- 1x D70 h03
- 1x D70 h10
- 2x SMA-SMB 1 m, SMA-SMB 测量电缆
- 1x P1401 / P1501 case, System case
- 1x P1400 / P1500 m
Delivery content details
-
P1401
高频磁场源(~1GHz)
P1401型磁场源检测集成电路在高频磁场下的抗干扰性。受测集成电路处于工作状态。P1401型磁场源与功率放大器和高频信号发生器连接使用。
-
P1501
高频电场源(~1GHz)
P1501型电场源检测集成电路在高频电场下的抗干扰性。受测集成电路处于工作状态。P1501型电场源与功率放大器和高频信号发生器连接使用。
