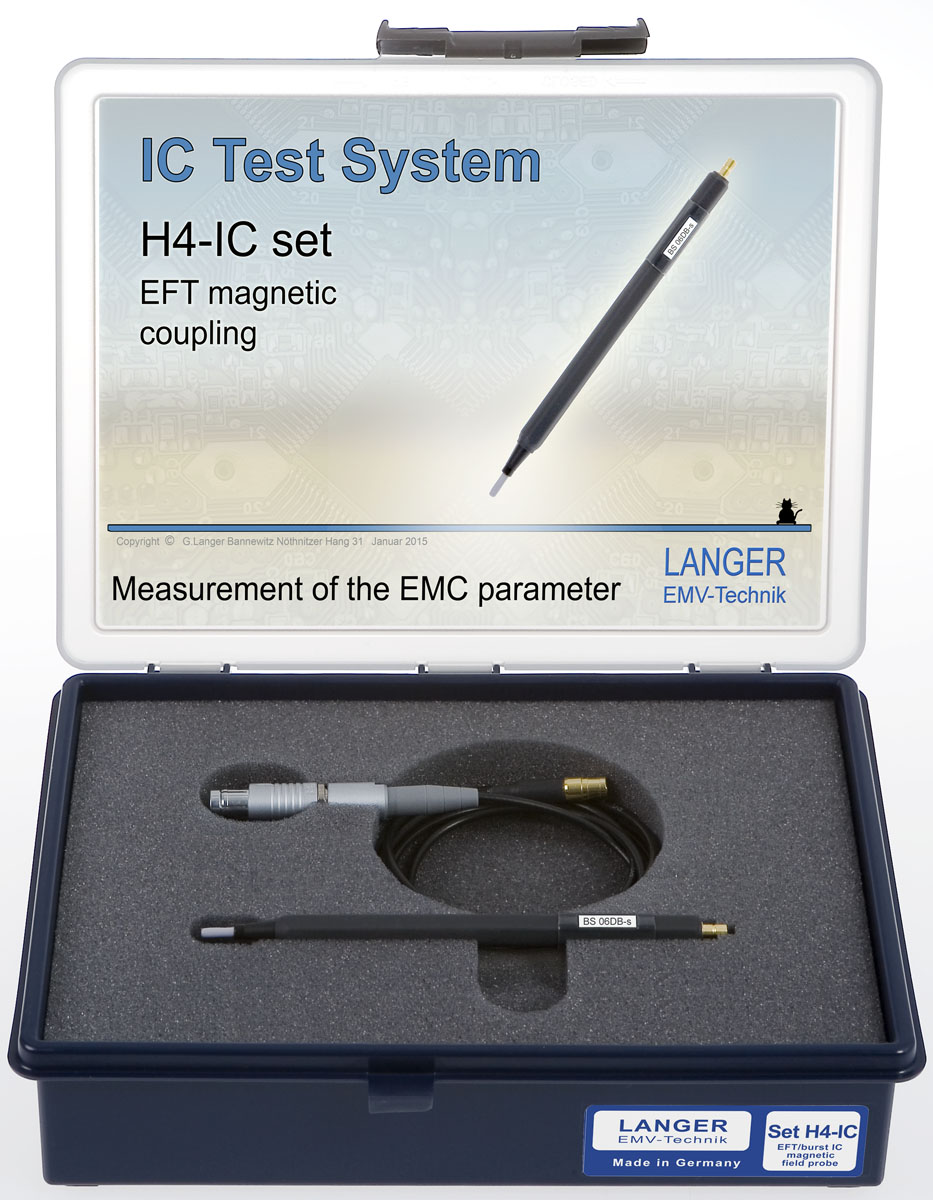

H4-IC set

电快速瞬变脉冲群磁场源组

Send enquiry Datasheet
  • H4-IC set, 电快速瞬变脉冲群磁场源组
  • Application with BS 06DB-s

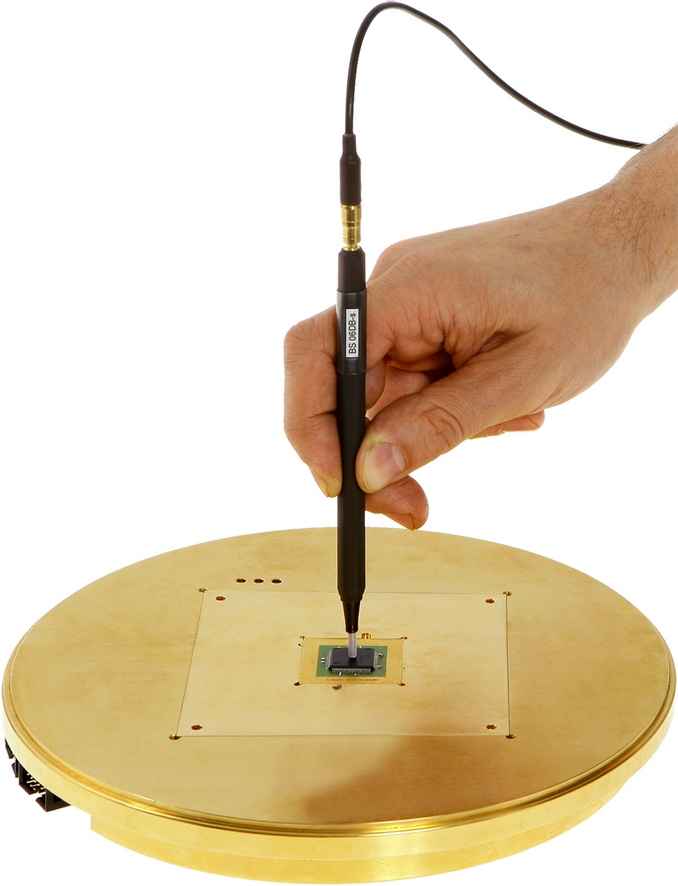

    Application with BS 06DB-s
  • Fischer connector and SHV connector

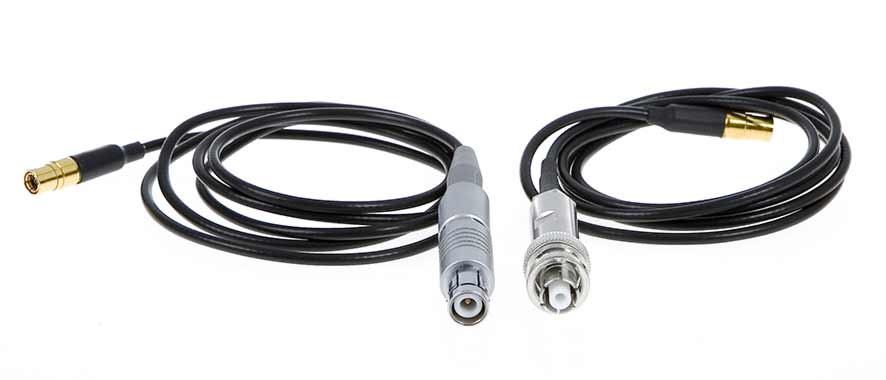

    Fischer connector and SHV connector
  • Scope of delivery with BS 06DB-s and HV SHV-SMB 1 m cable

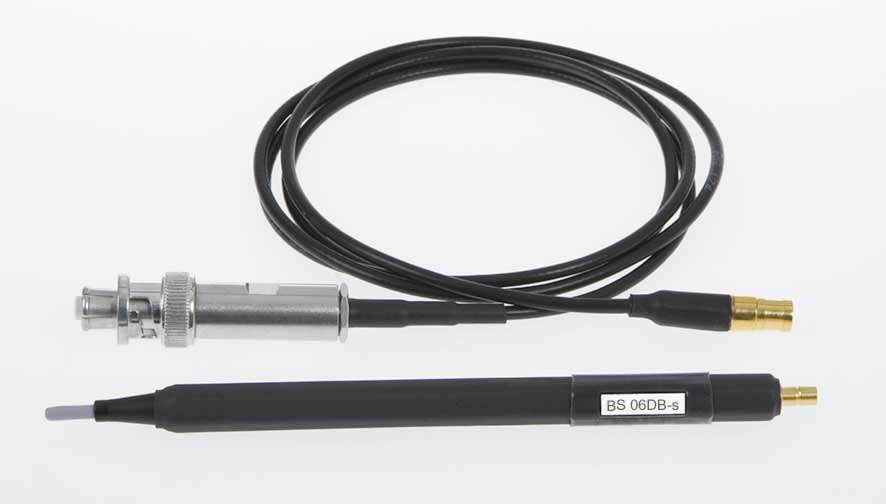

    Scope of delivery with BS 06DB-s and HV SHV-SMB 1 m cable
  • Scope of delivery with BS 06DB-s and HV FI-SMB 1 m cable

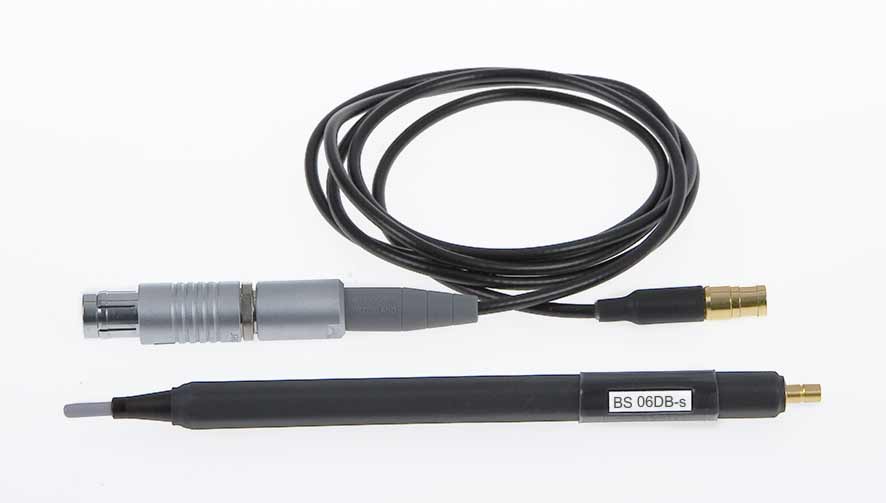

    Scope of delivery with BS 06DB-s and HV FI-SMB 1 m cable
H4-IC set, 电快速瞬变脉冲群磁场源组 Application with BS 06DB-s Fischer connector and SHV connector Scope of delivery with BS 06DB-s and HV SHV-SMB 1 m cable Scope of delivery with BS 06DB-s and HV FI-SMB 1 m cable
  • H4-IC set, 电快速瞬变脉冲群磁场源组
  • Application with BS 06DB-s
  • Fischer connector and SHV connector
  • Scope of delivery with BS 06DB-s and HV SHV-SMB 1 m cable
  • Scope of delivery with BS 06DB-s and HV FI-SMB 1 m cable
Short description

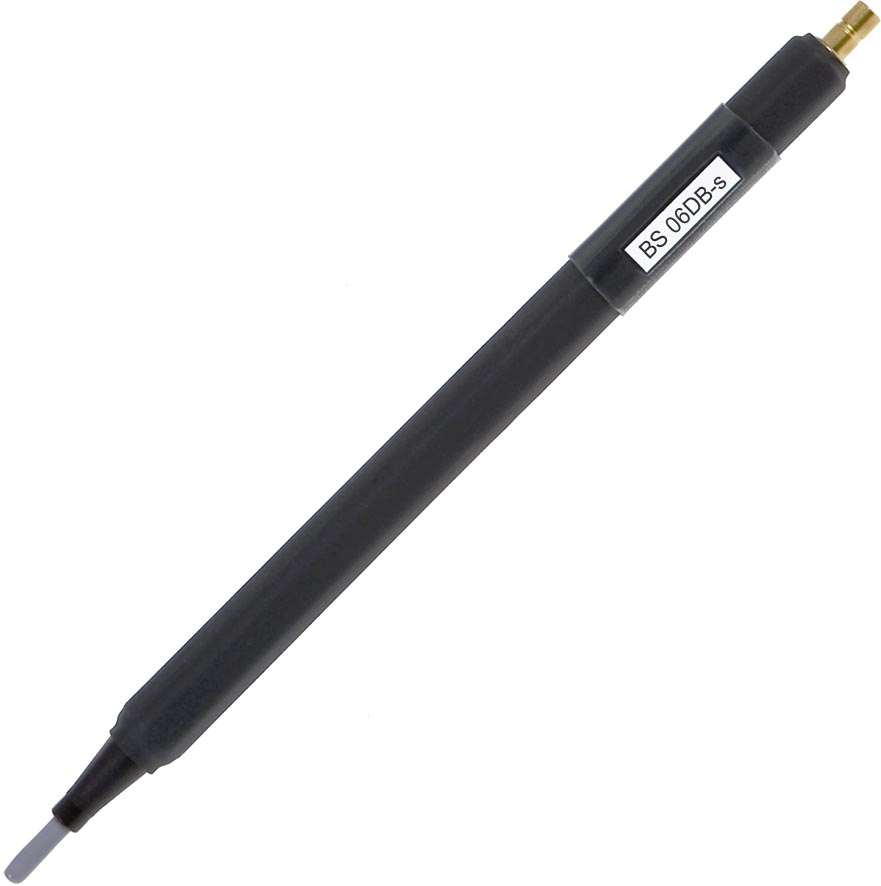

BS 06DB-s型磁场源用于生成电快速瞬变脉冲群磁场。通过一根高压电缆和电快速瞬变脉冲群发生器（IEC 61000-4-4），将电快速瞬变脉冲群电流信号注入到该场源，能够产生极小面积（2.54 mm²）的高强磁场（约 200mT），因此特别适合向IC进行场耦合。该场源既可用于扫描仪，也可用于手持操作。标准配置中还包括一根连接电缆，两端分别为 SMB（SMB 场源输出端）和 Fischer插头 S103A023。

Delivery content
Technical parameters
BS 06DB-s 电快速瞬变脉冲群磁场源
频率范围 0...66 MHz
分辨率 2.54 mm²
生成的磁场磁感应强度 2.37 mT/A
探头尺寸 Ø 1.8 mm
生成的最大磁感应强度 200 mT
输出接口 SMB, female, jack
4 kV
Delivery content details
