OA 4005
示波器适配器
![OA 4005, 示波器适配器](/fileadmin/Bilder300/IC measurement_oscilloscope adapter_OA 4005_eng_wPZ.jpg?v=1723643593082)

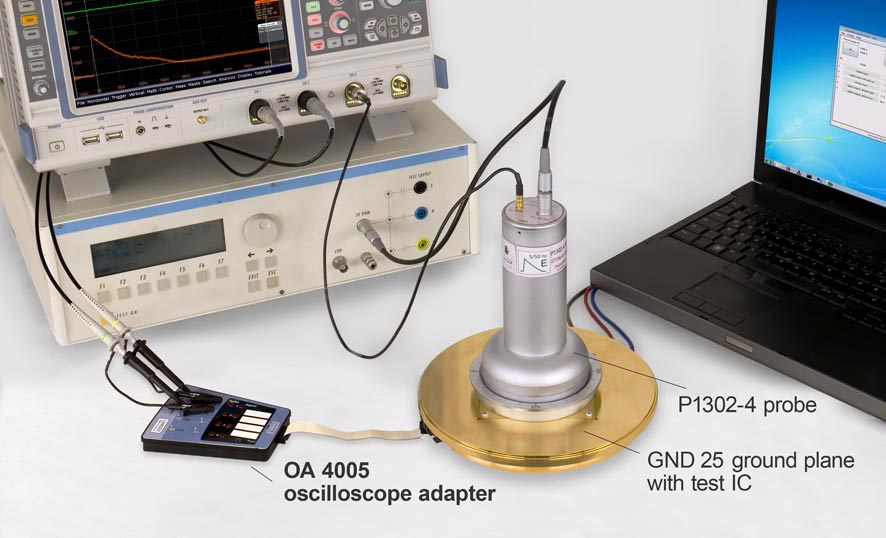

![Measurement set-up](/fileadmin/Bilder300/IC measurement_oscilloscope adapter_OA 4005_set-up_eng_wPZ.jpg?v=1723643593082)
Short description
示波器适配器OA 4005用于监测受测集成电路,并使检测到的信号可视化。它通过扁形带装电缆与连接板CB 0708相连。发光二极管signal1-4和spike1-4显示从受测电路检测到的信号。此外,它对示波器探头有四种可选的连接方式CH1-CH4.
The flat ribbon cable from the connection board ensures the power supply to the OA 4005.
Technical parameters
截止频率 | 45 MHz sine wave |
截止频率 | 1 MHz rectangle wave |
最大射频输入电压 | 50 V |
