ICI-DP HH500-15
-
-

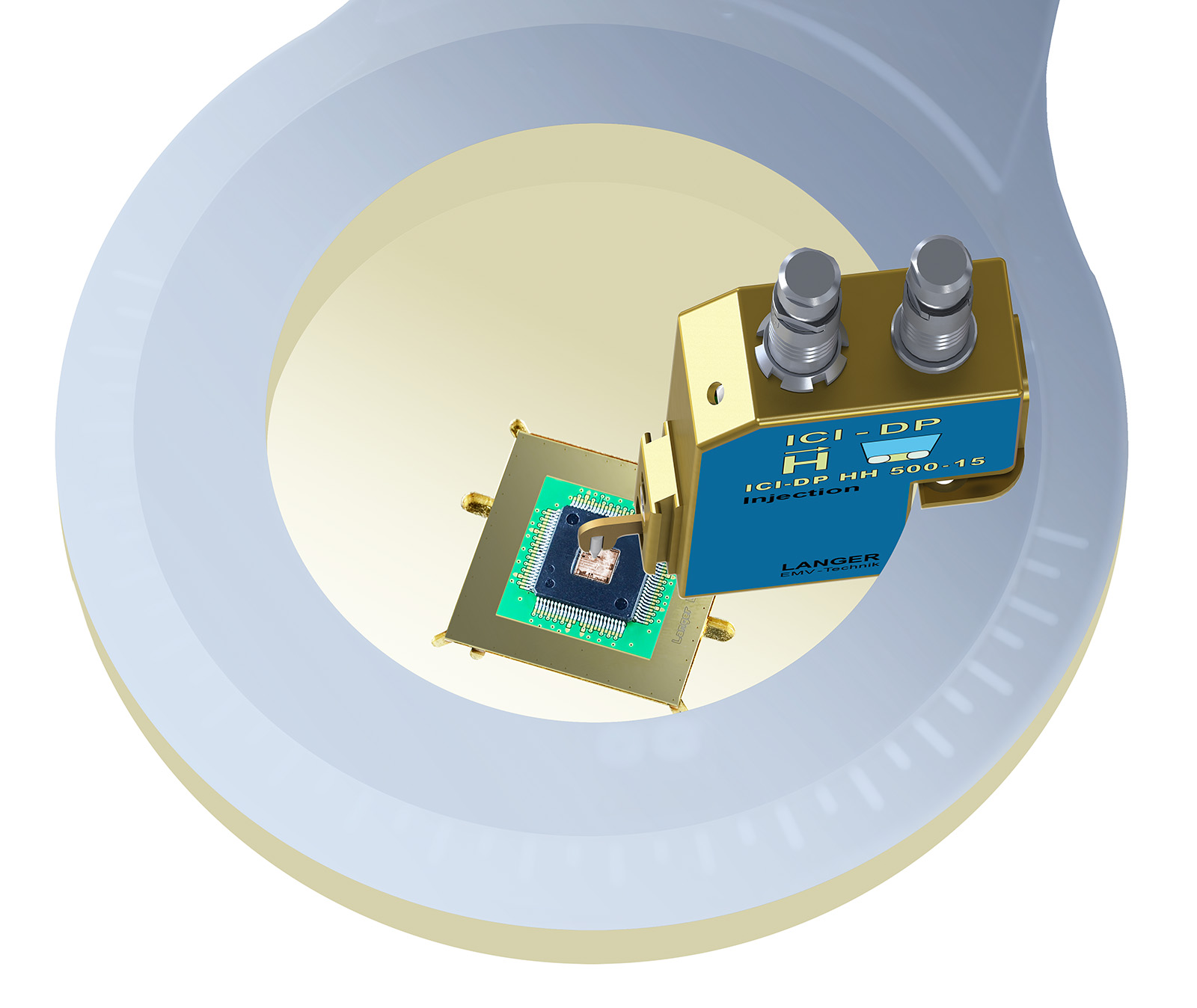

Application of ICI-DP HH500-15 douple pulse magnetic field source -

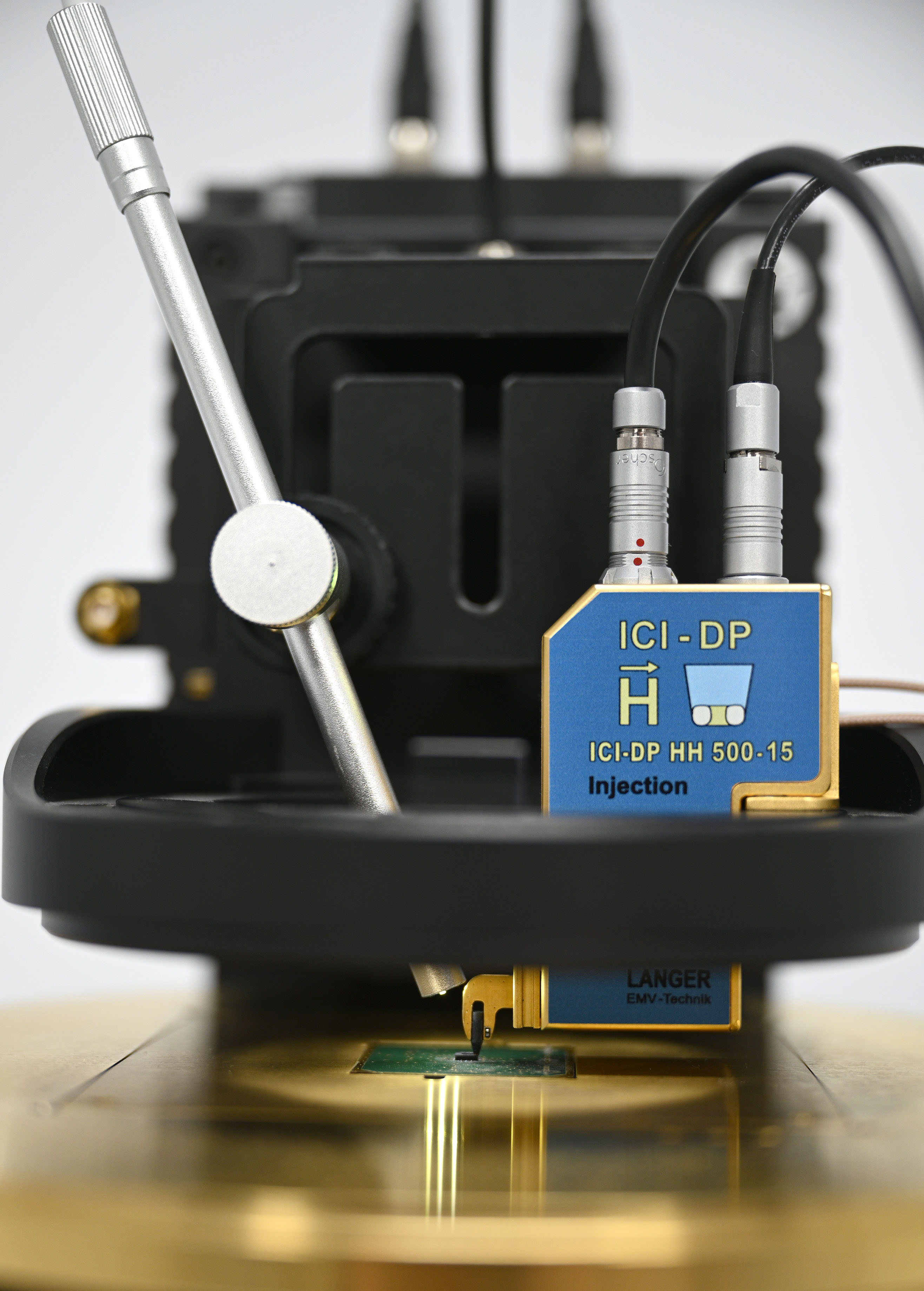

Measurement with ICI-DP double pulse magnetic field source using a ICS 105 Langer IC scanner -

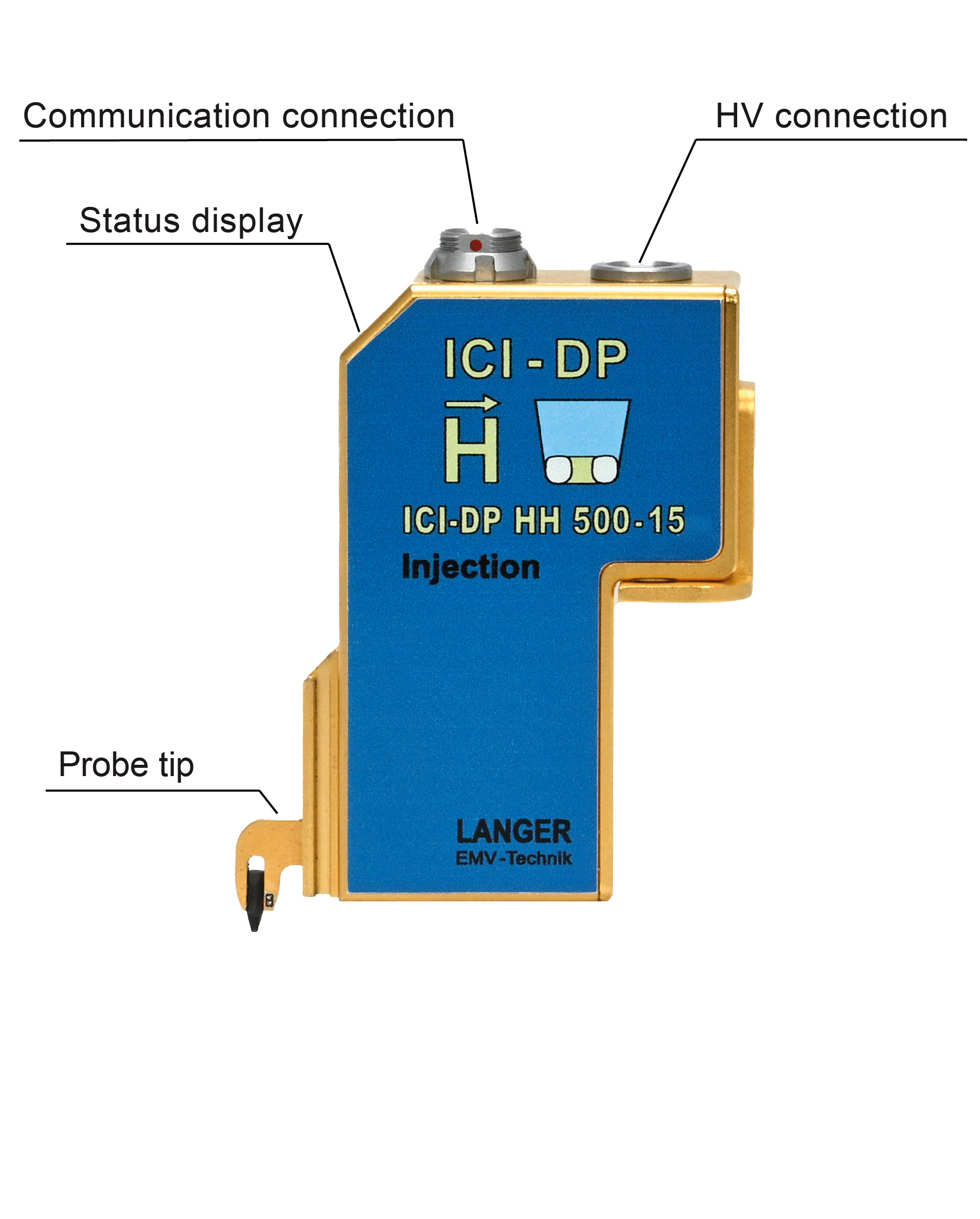

Probe with connections -

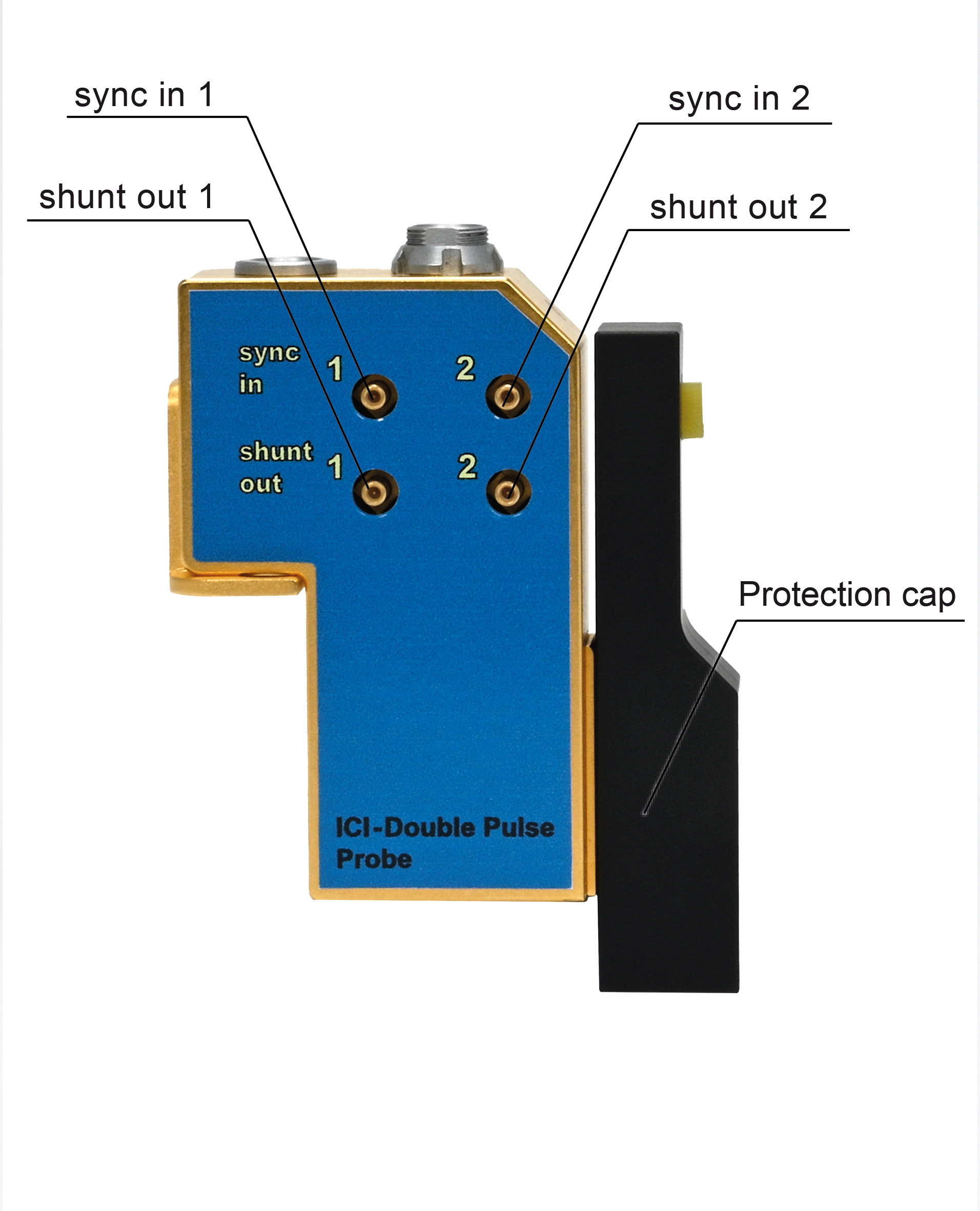

Probe with protection cap - rear view
Technical parameters
| 探头尺寸 | Ø 500 µm |
| 脉冲参数 | |
| 1000 V | |
| 上升时间 | 2 ns |
| 最大脉冲电流 | 16 A |
| Max. magnetic flux density | 200 mT |
| 脉冲宽度 | 10 ns |
| 25 ns | |
| 重复频率 | 0.1 Hz - 15 kHz (single pulse, < 500 V) 0.1 Hz - 7.5 kHz (double pulse, < 500 V) |
| 极性 (set by software) | + / - ( no polarity change within a double pulse) |
| Min. trigger pulse delay | 35 ns |
| Additional trigger pulse delay (Delay-Line) | Controlled by BPS 204 supply |
| 电源电压 | BPS 204 |
| 重量 | 190 g |
| 尺寸 (L x W x H) | (26 x 54 x 71) mm |
