ES 05D-h
电场源
![ES 05D-h, 电场源](/fileadmin/Bilder alt_neu/ES05D-Grafik.jpg?v=1721124529905)
![Application with ES 05D](/fileadmin/Bilder300/ES 05D application web.jpg?v=1721124532028)
Short description

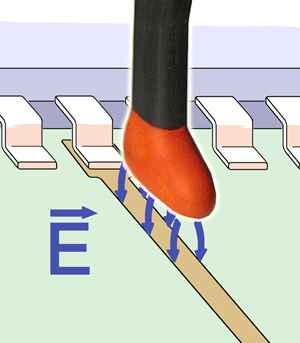

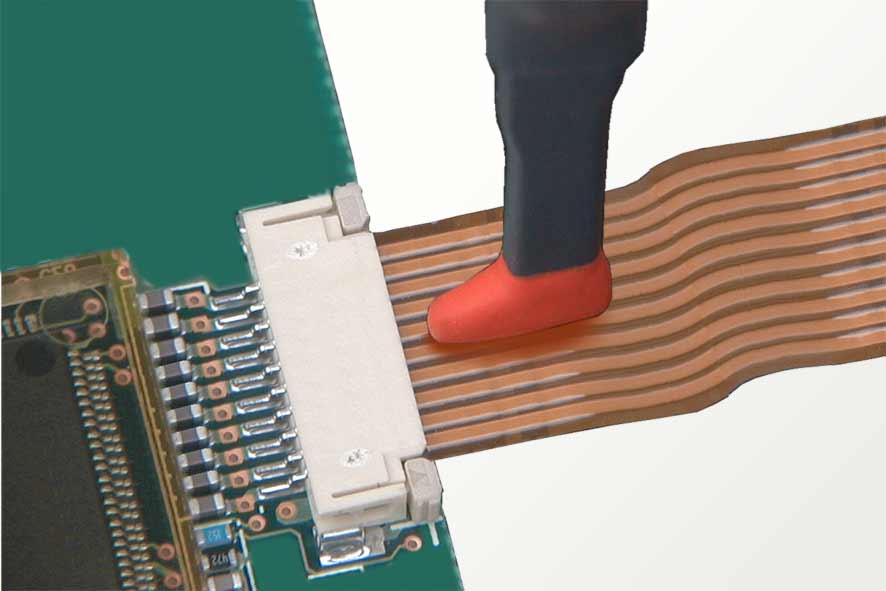

ES 05D-h型电场源的探头内有一个狭窄的去耦合电极。因此适合于想导线、小型元件机器连接器、线缆及单个的元件施加电场。它还可以用于测量那些单个的插接件或扁平带状电缆的芯线。
The field source is powered by an EFT/ burst generator. The generator is connected to the 4.4 kV, high-voltage resistant SMB plug of the field source via a high-voltage cable (HV SMB 1 m or SMB-BNC 1 m).
