BS 04DB-h
磁场源



Short description

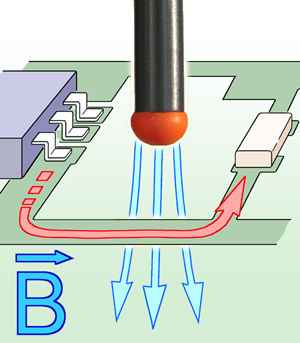

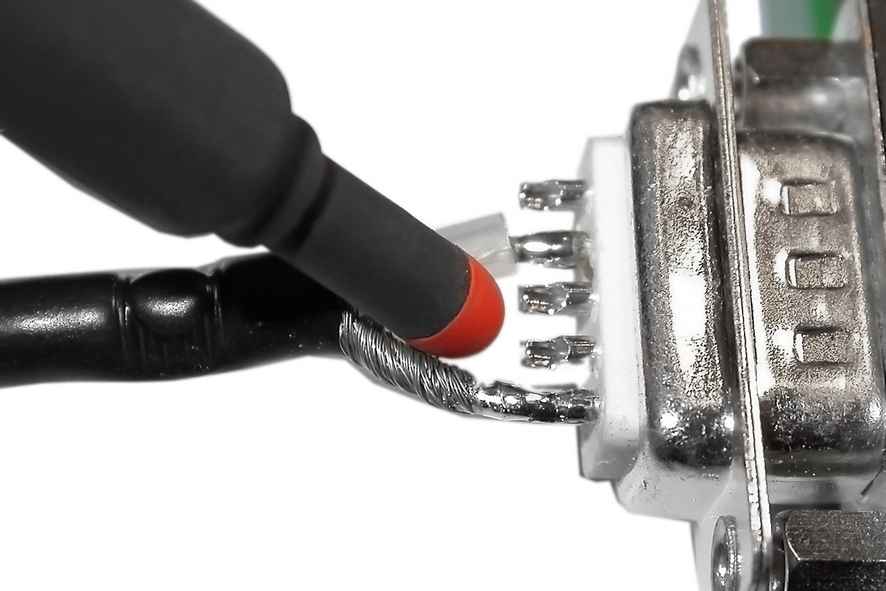

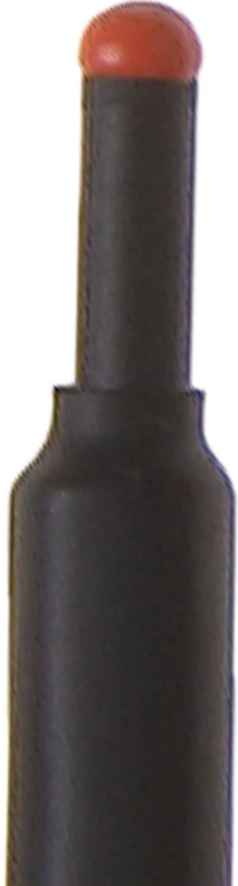

BS 04DB-h型磁场源产生直径大约为3mm的磁场。借助其正面发出的磁场可以对印刷电路板的表面进行采样,这样就能消除电路布局和装配区域内的磁薄弱点。还可以定位关键的导体段,关键的组件和这些组件的连接。
The field source is powered by an EFT/ burst generator. The generator is connected to the 4.4 kV, high-voltage resistant SMB plug of the field source via a high-voltage cable (HV SMB 1 m or SMB-BNC 1 m).
