PT4
猝发变压器
-
-

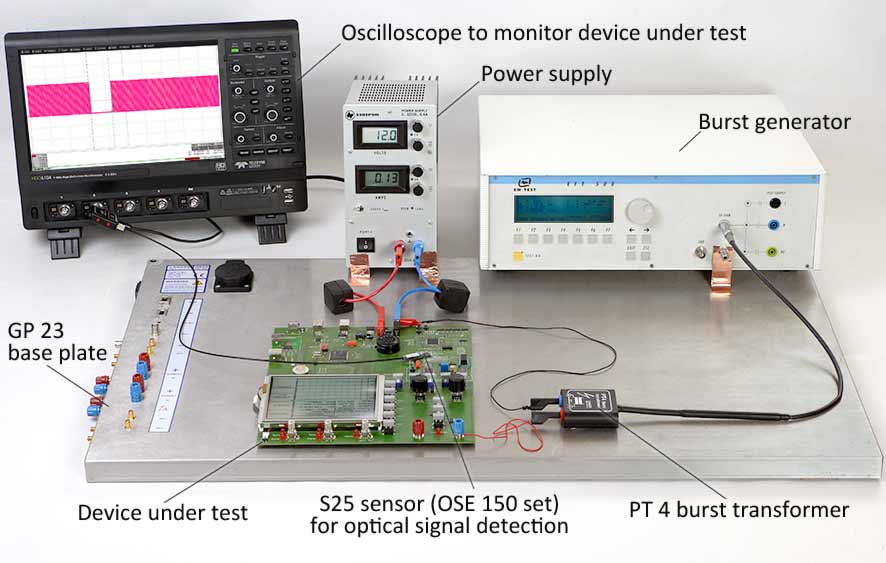

Application with PT4
Short description

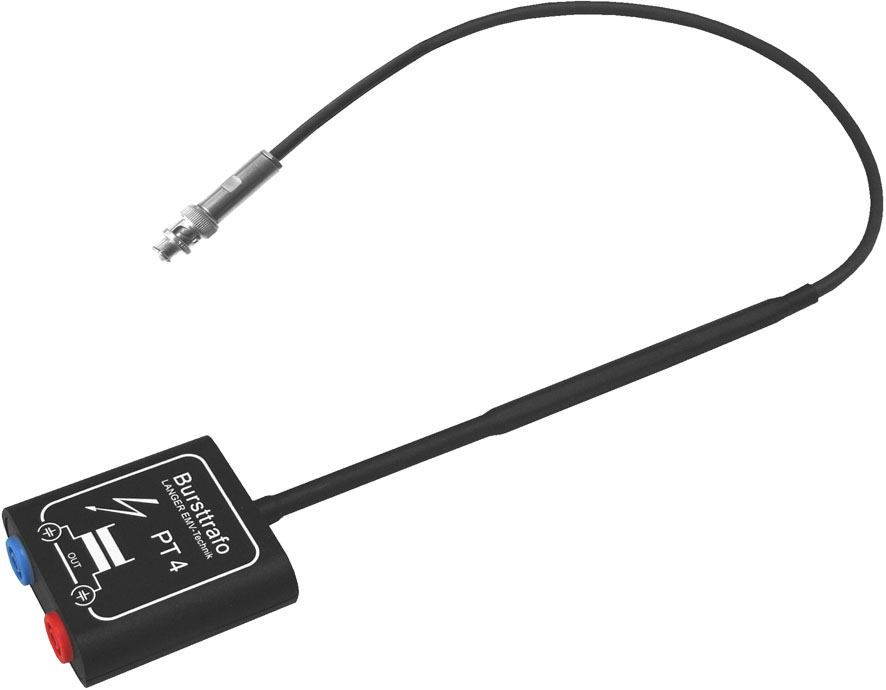

PT 4型猝发变压器按照IEC 61000-4-4标准从发电机中分离出EFT/爆冲发生器的输出脉冲。它发出的对称的输出信号能以不同的路径耦合到受测物上。经过测试，可以确定与受测物上单个印刷电路板或插接件相对应的故障。
Inside the connection cable of the PT4 are damping elements, which prevent high-frequency common mode currents from the EFT/burst generator entering the device under test as good as possible.
The PT4 comes either with an SHV plug (HV SHV-SMB 1 m) or a Fischer plug (HV FI-SMB 1 m). Please choose a plug when ordering.
Technical parameters
| 4,5 kV | |
| 变换系数 | 1:1 |
| 输出端耐压强度 | 500 V / DC, AC 50 Hz |
| 输出接口 | SHV-BNC |
