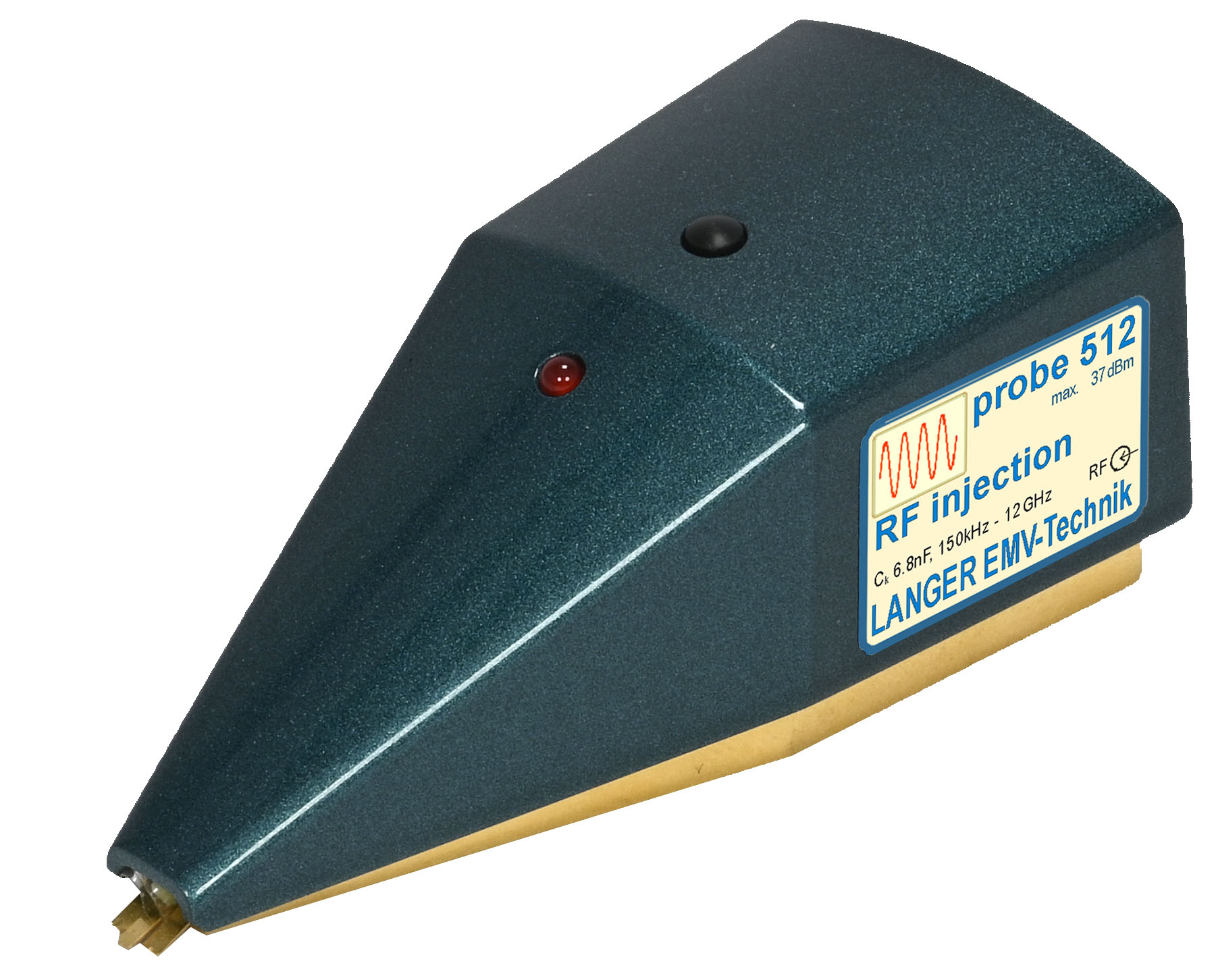

P512 set
-
-

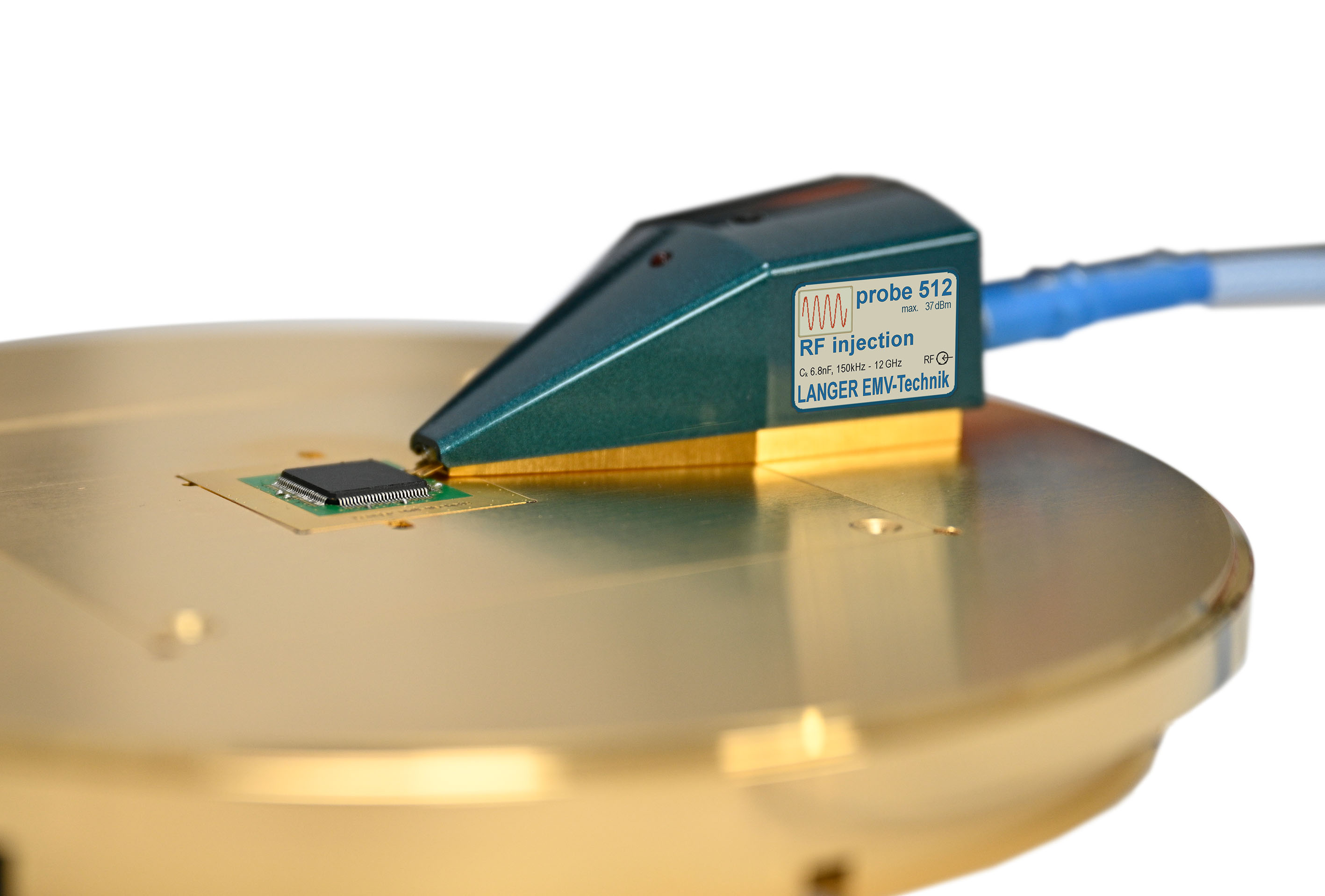

DPI measurements with sample P512 on ground plane GND25 -

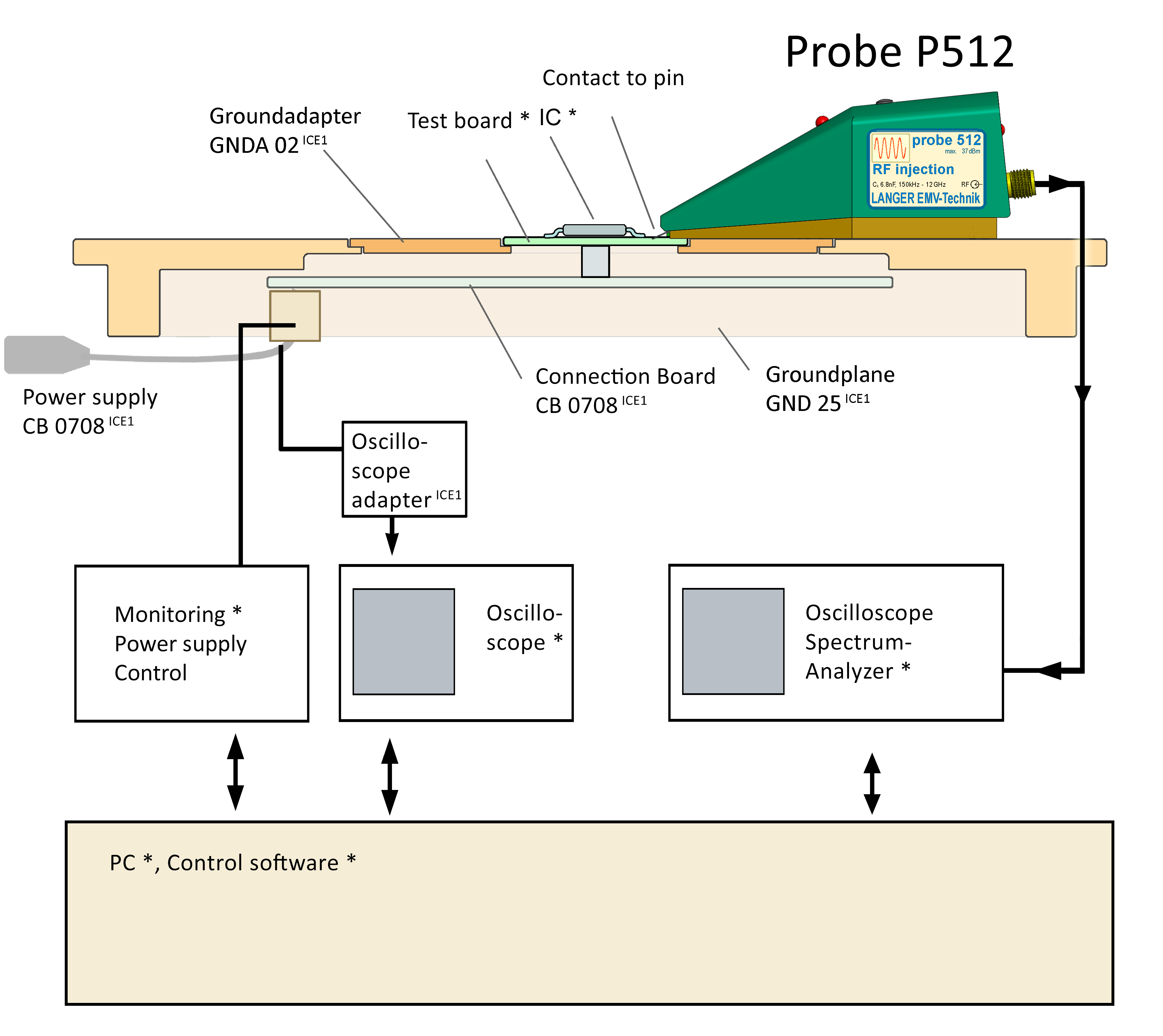

Schematc measurement setup for RF measurements with P512 probe -

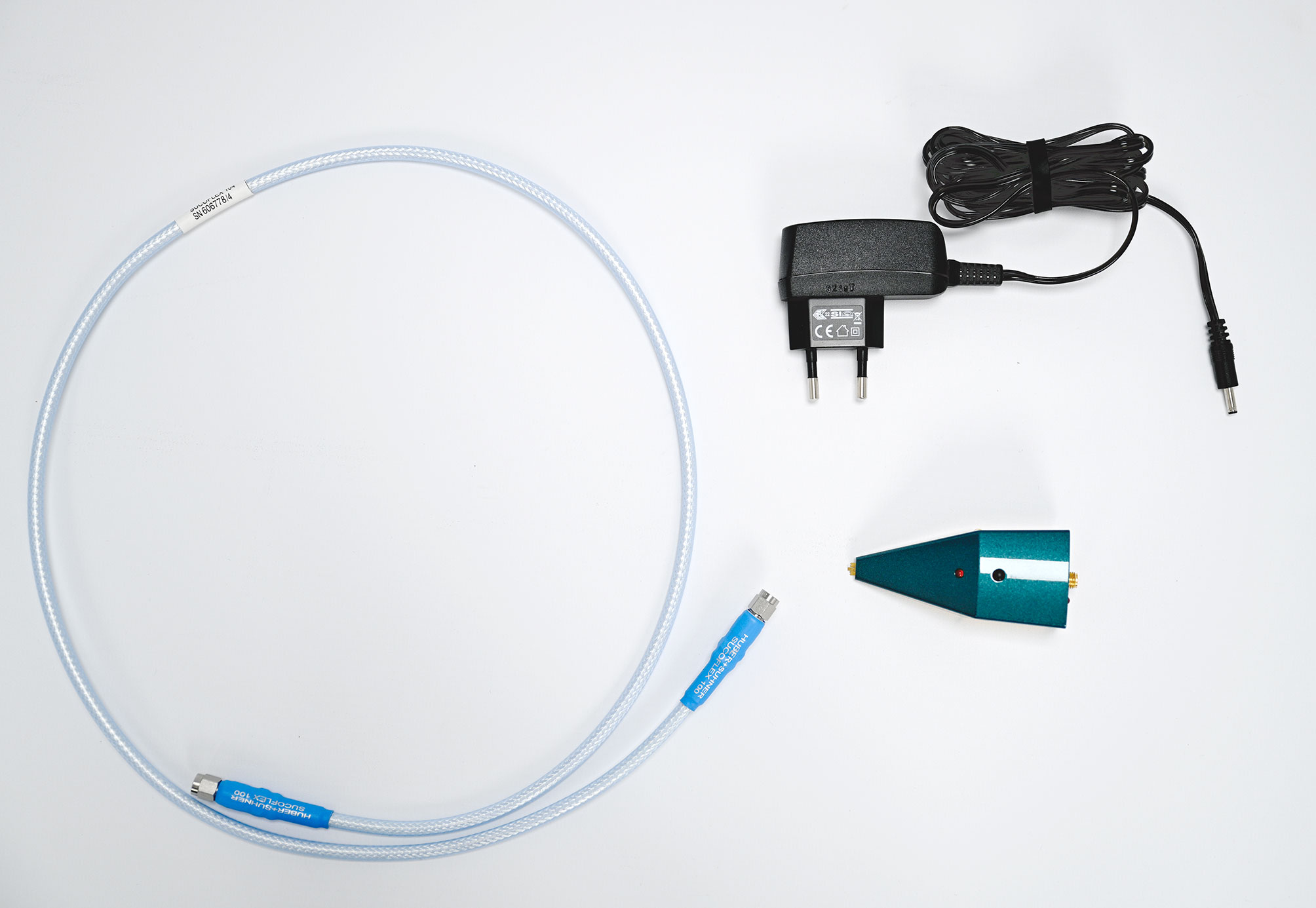

P512 set scope of delivery -

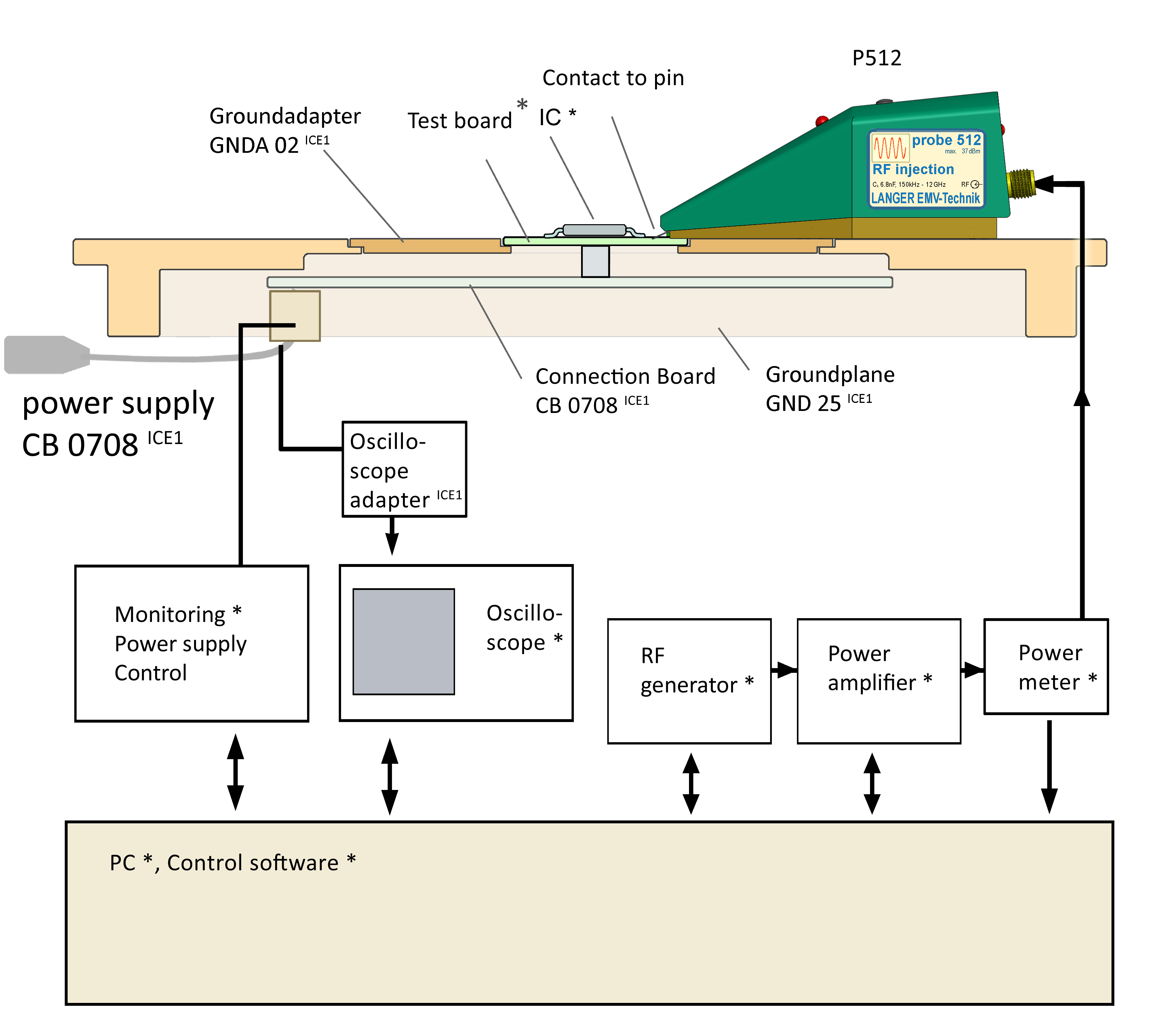

Schematc measurement setup with P512 probe





** Order coupling capacity as desired or limit externally.
The coupling capacitance of the integrated network can be adapted once to customer requirements. The contact detection signals the contact of the measuring tip with the DUT and thus helps to ensure correct measurement results.
Delivery content
- 1x P512
- 1x SMA-SMA 1m 18GHz HS
- 1x NT FRI EU
Technical parameters
频率范围 | ... 12 GHz |
Supply voltage | 12 V |
Adjustment | 50 Ohm |
耦合电容的容量 | 6.8 nF |
