P512 set
RF Power Injection and Measurement IEC 62132-4 up to 12 GHz
-
-

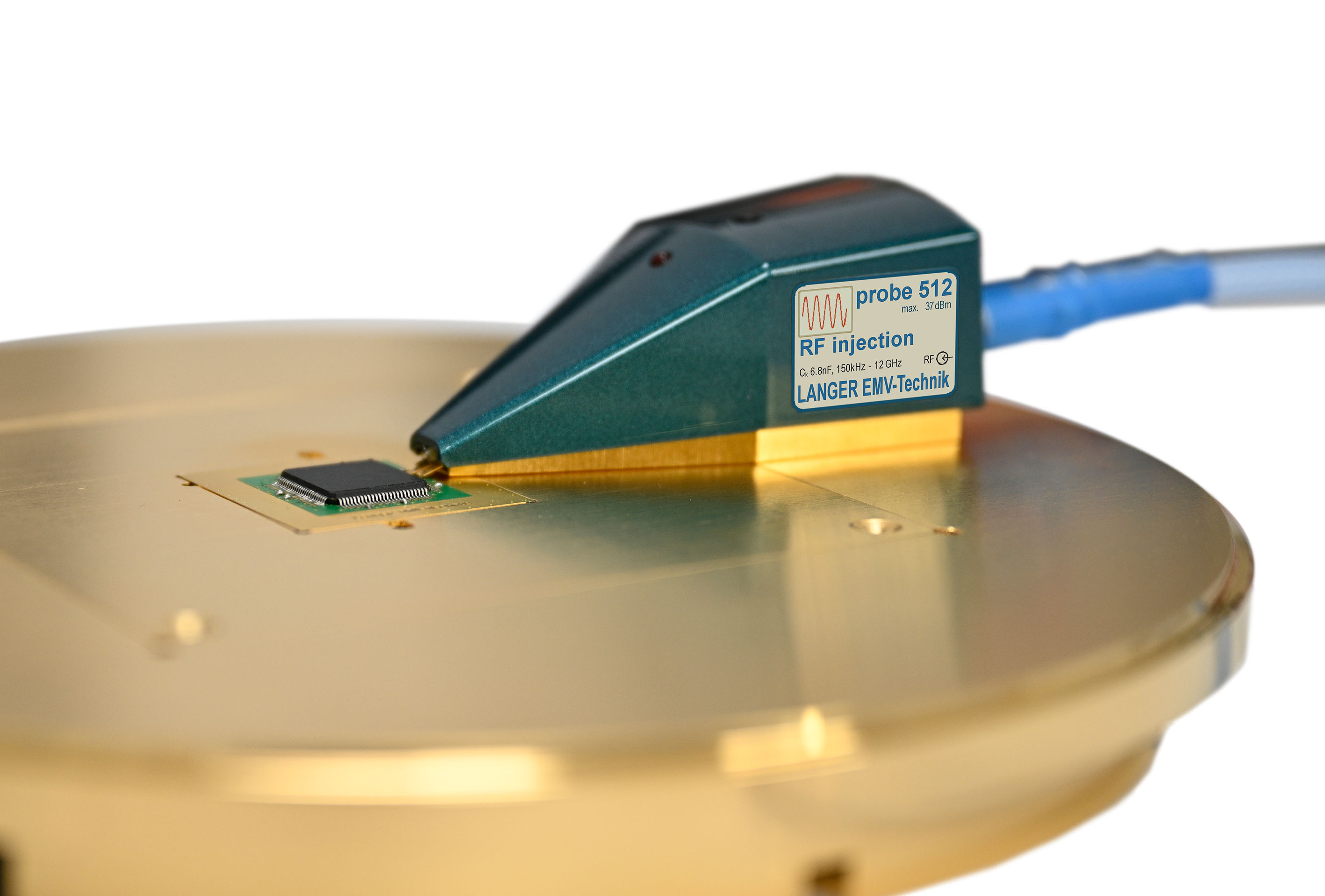

DPI measurements with sample P512 on ground plane GND25 -

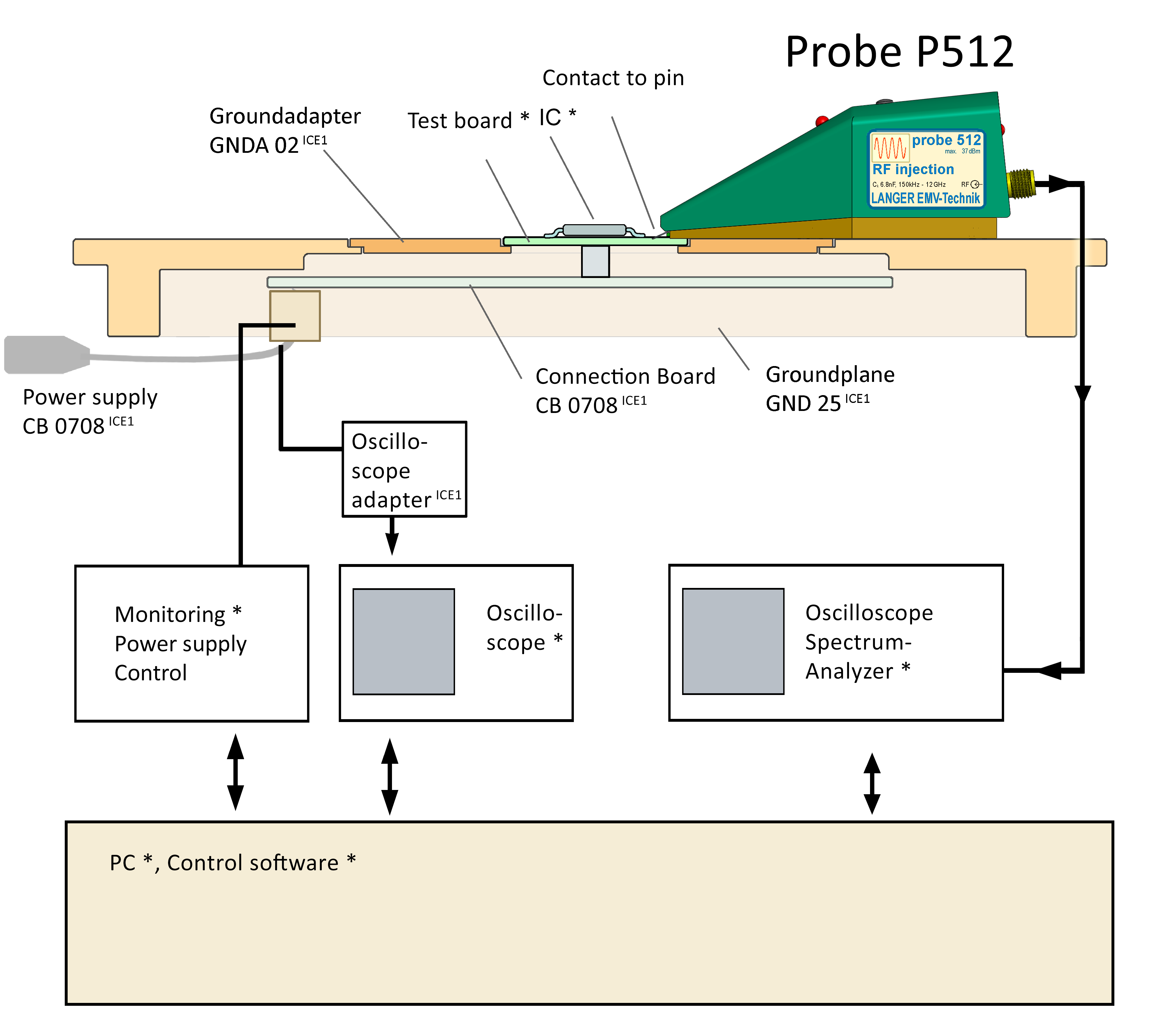

Schematc measurement setup for RF measurements with P512 probe -

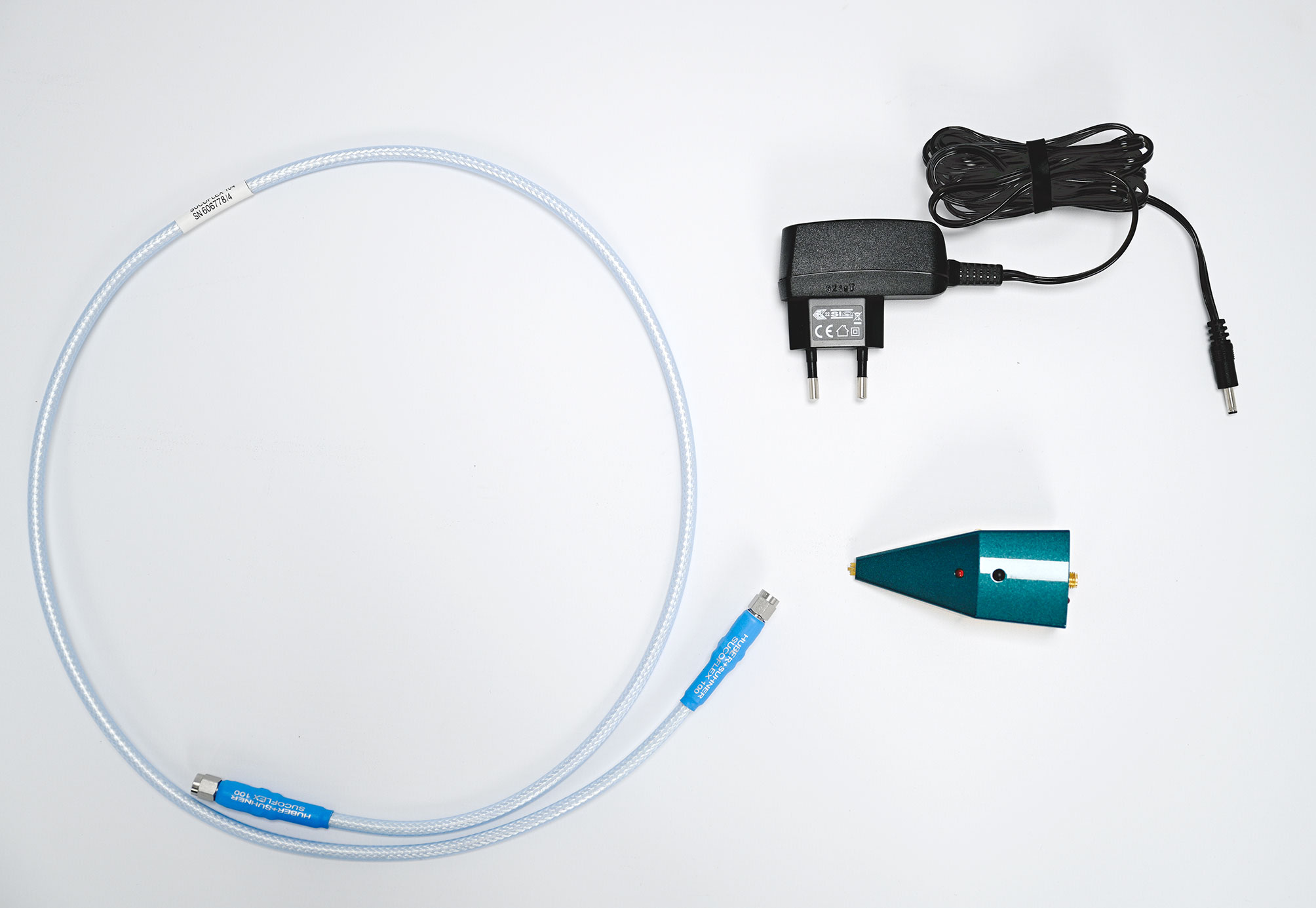

P512 set scope of delivery -

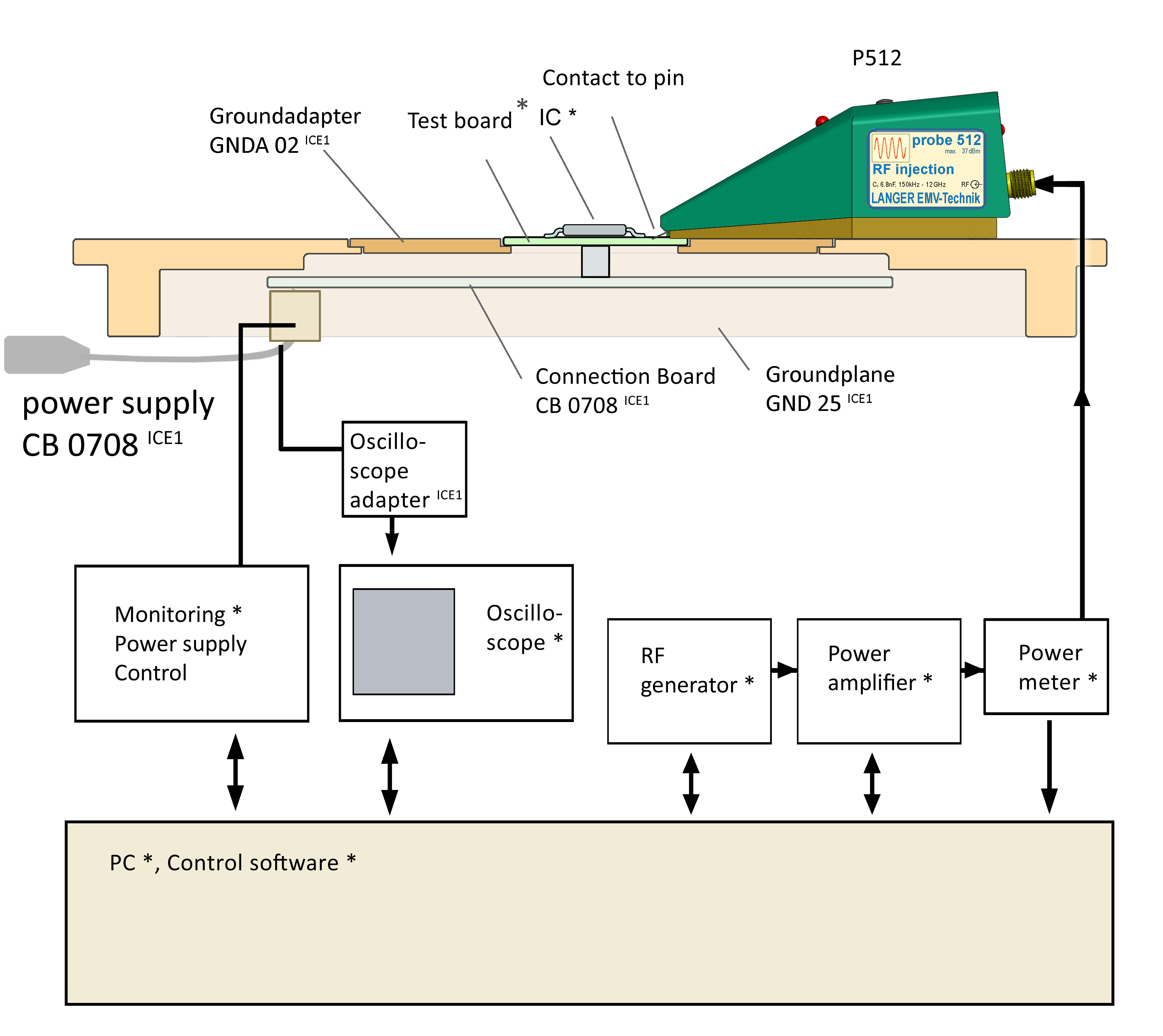

Schematc measurement setup with P512 probe
Short description

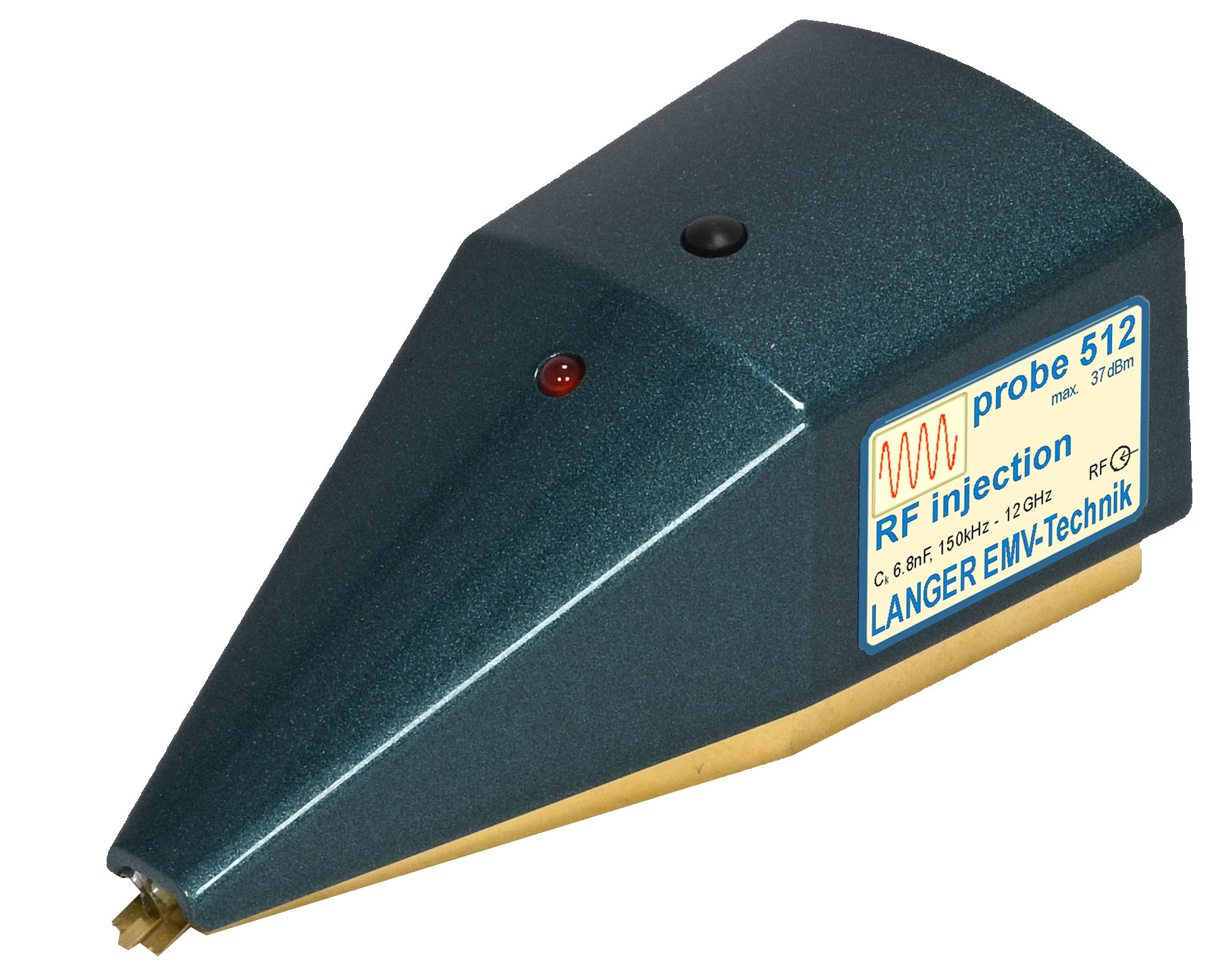

The RF probe 12 GHz P512 is used for power injection (DPI) into IC pins according to IEC 62132-4.
Due to the special design of the probe tip, the probe can be used as a coupling network for DPI as well as an RF probe and thus DPI investigations and RF measurements up to 12 GHz can be performed.
** Order coupling capacity as desired or limit externally.
The coupling capacitance of the integrated network can be adapted once to customer requirements. The contact detection signals the contact of the measuring tip with the DUT and thus helps to ensure correct measurement results.

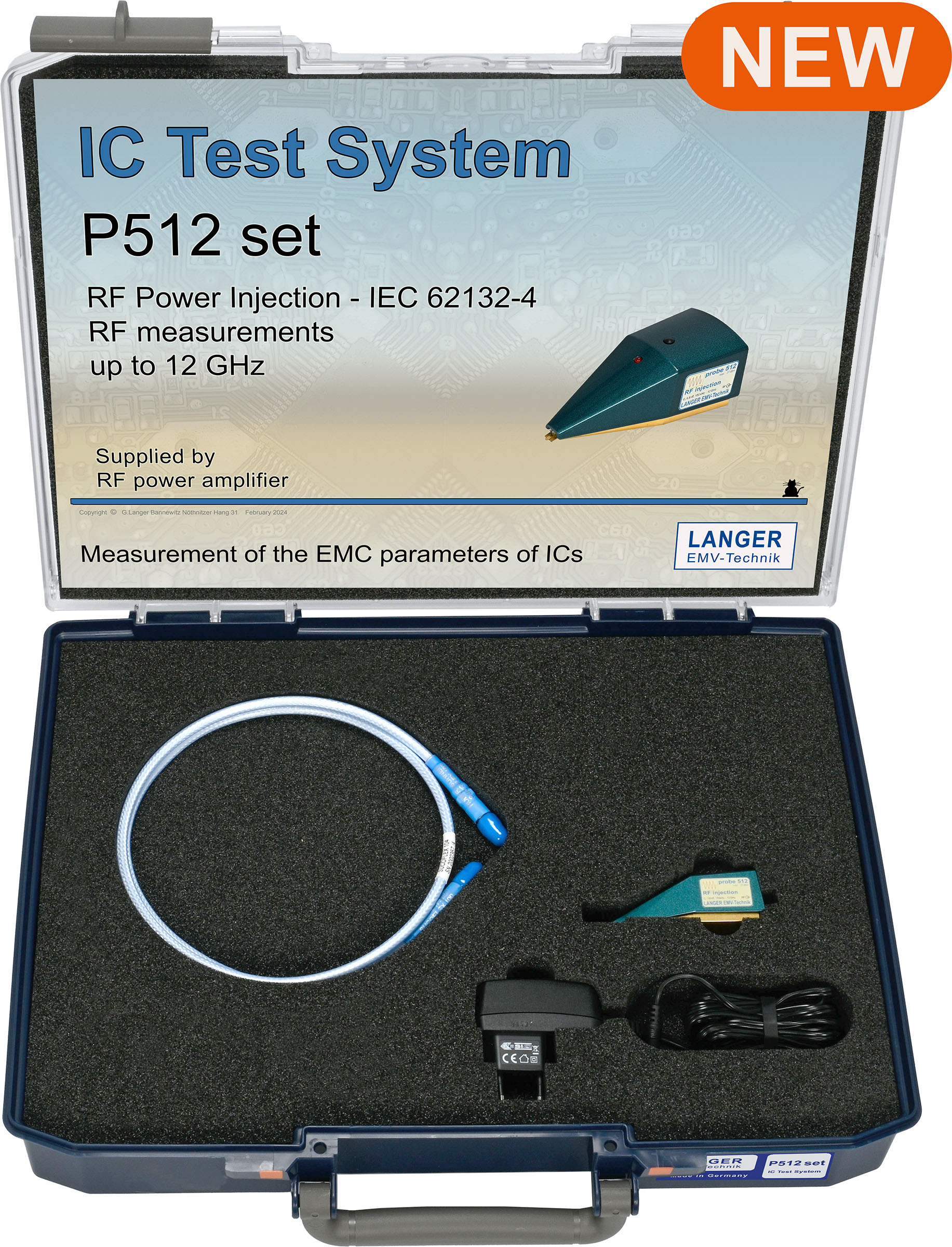

Scope of delivery
- 1x P512, RF probe
- 1x SMA-SMA 1m 18GHz HS, high performance microwave cable with SMA
- 1x NT FRI EU, Power Supply Unit
Technical parameters
| Frequency range | ... 12 GHz |
| Supply voltage | 12 V |
| Adjustment | 50 Ohm |
| Coupling capacity | 6.8 nF |
