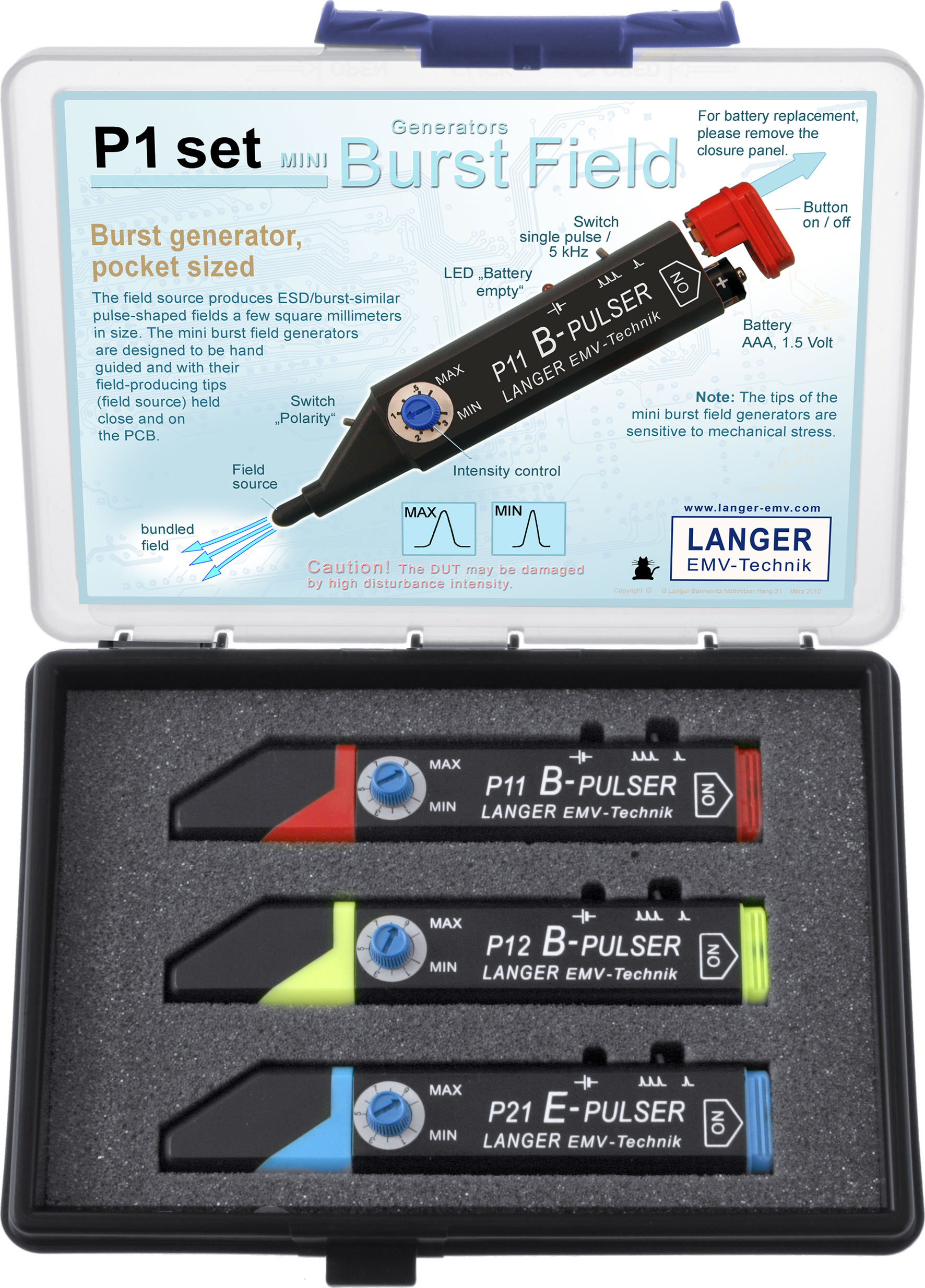

P1 set

Mini Burst Field Generators

The mini burst field generators are particularly small. They are used to identify and eliminate weak points in electronic assemblies in the development phase. They generate a burst or an ESD field at their tip. The mini burst generators are guided by hand across the equipment under test (e.g. printe…

P23 set

Mini Burst Field Generator (E)

The P23`s interference pulse runs through and couples to the digital IC inputs under test, like Reset, Clock, Quartz or the respective signal lines. The coupling takes place capacitively inside the field generator. The tip of the P23 mini burst field generator is positioned galvanically on the pin o…

P11t set

Mini Burst Field Generator (B, Trigger)

The P11t mini burst field generator is a development accompanying tool for interference immunity analysis. The fast transient magnetic fields, which emerge out of its tip, are used for detecting weak spots on the assemblies. The mini burst field generator has a TTL trigger input. Signals from the de…

P12t set

Mini Burst Field Generator (B, Trigger)

During the development phase the P12t mini burst field generator can be used to detect weak spots on assemblies. Fast transient magnetic field flows from the tip that follows the principle of a coupling clamp. The mini burst field generator has a TLL trigger input. Signals from out of the device und…
