A200-1 set

Optical Fiber Probe 1-channel, 500 kHz

Send enquiry Datasheet
  • A200-1 set, Optical Fiber Probe 1-channel, 500 kHz

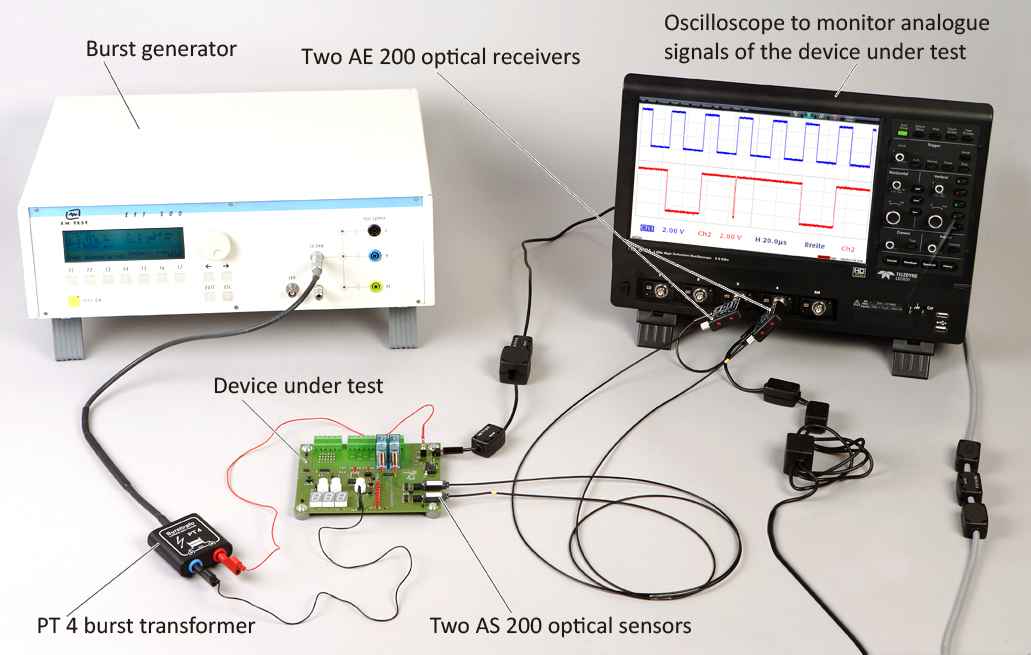

  • Application with Set AS200
    Application with Set AS200

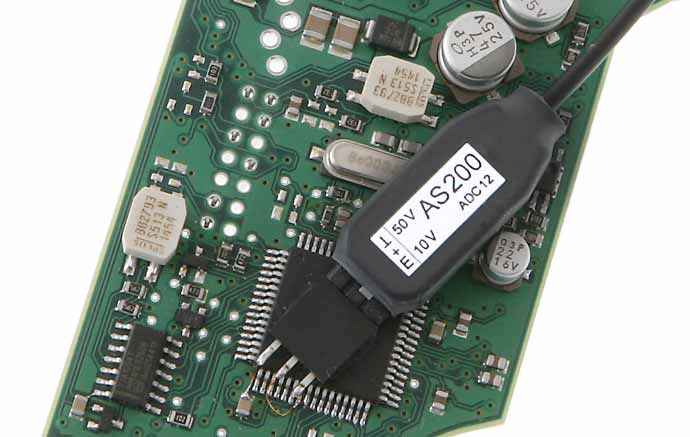

  • Application with optical sensor AS200
    Application with optical sensor AS200

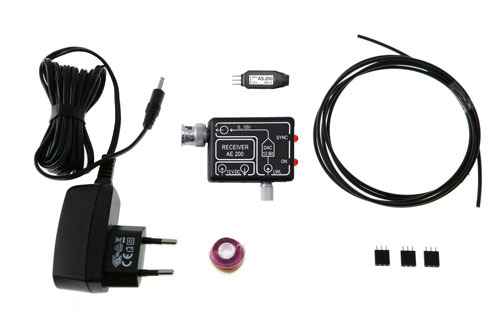

  • Scope of delivery AS200
    Scope of delivery AS200
A200-1 set, Optical Fiber Probe 1-channel, 500 kHz Application with Set AS200 Application with optical sensor AS200 Scope of delivery AS200
  • A200-1 set, Optical Fiber Probe 1-channel, 500 kHz
  • Application with Set AS200
  • Application with optical sensor AS200
  • Scope of delivery AS200
Short description

The A200-1 set consits of a sensor, which allows for oscilloscopically displaying analog signals under EFT/ESD/RF interference potential free. Disturbed signals can be easily detected. In the device under test the sensor transforms the measured analog signals into optical signals. The optical signals are transmitted via a fiber optical cable to the optical receiver which transforms them into electrical signals. These can be seen with an oscilloscope or can be used for controlling other devices. The system is suitable for monitoring a device under test in an anechoic chamber or for EMC optimizing of hard- and software.

Scope of delivery
Technical parameters
Bandwidth DC ... 500 kHz
Sampling rate 3 Msps
Resolution 12 Bit

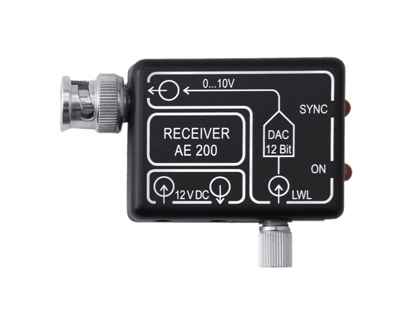

AE 200 Optical Receiver
Bandwidth DC ... 500 kHz
Voltage range - output 0 V ... 10 V
Optical input: Optical fiber Ø 2.2 mm
Supply voltage 12 V ... 16 V
Current input ≈ 100 mA

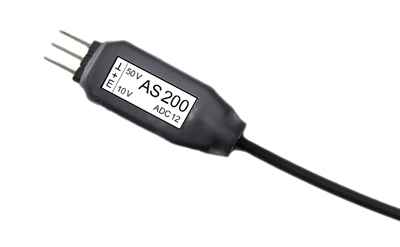

AS 200 Optical Sensor
Bandwidth DC ... 500 kHz
Measuring range 0 V ... 50 V / 0 V ... 10 V DC (switchable)
Input resistance 100 kΩ
Radiated immunity > 100 V/m
Supply voltage 3 V ... 16 V
Current input ≈ 30 mA
Optical fibre length 1 m ... 20 m
Scope of delivery details
