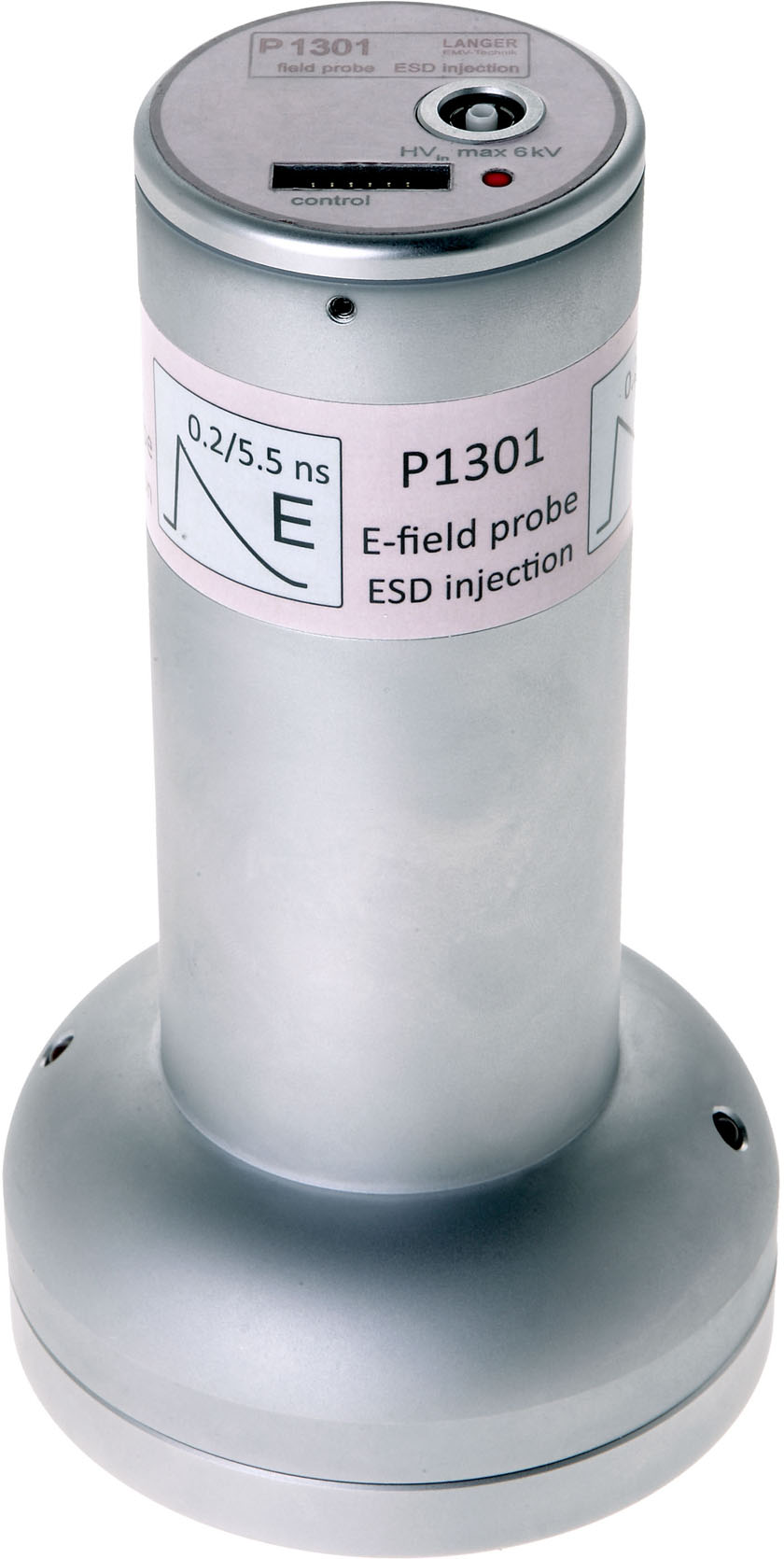

P1301 L-ESD
ESD E-Field Source Langer Pulse 0.2/5.5 ns
Short description
The P1301 field source generates an ESD electric field and is designed for a defined and reproducible field coupling into ICs. The P1301 generates a pulse shaped E-field with an edge steepness of approx. 200 ps for reproducing high frequency ESD transient responses. The probe can only be operated in combination with the BPS 203 burst power station.
The BPS 203 povides high voltage and the control signals for the probe. The operation is carried out via a PC user interface.
Technical parameters
| Pulse parameter | |
| Shape | 0.2 / 5.5 ns |
| Frequency | 0.1 Hz - 10 Hz |
| Voltage | ± (0.1 - 6) kV |
| Voltage probe | |
| Frequency range | (0 ... 2) GHz |
| Correction factor | 60 dB |
| Measurement output | 50 Ω, SMB |
| Connector - input | 50 Ω Fischer (D103A023) |
| Sizes (L x W x H) | (180 x 96 x 96) mm |

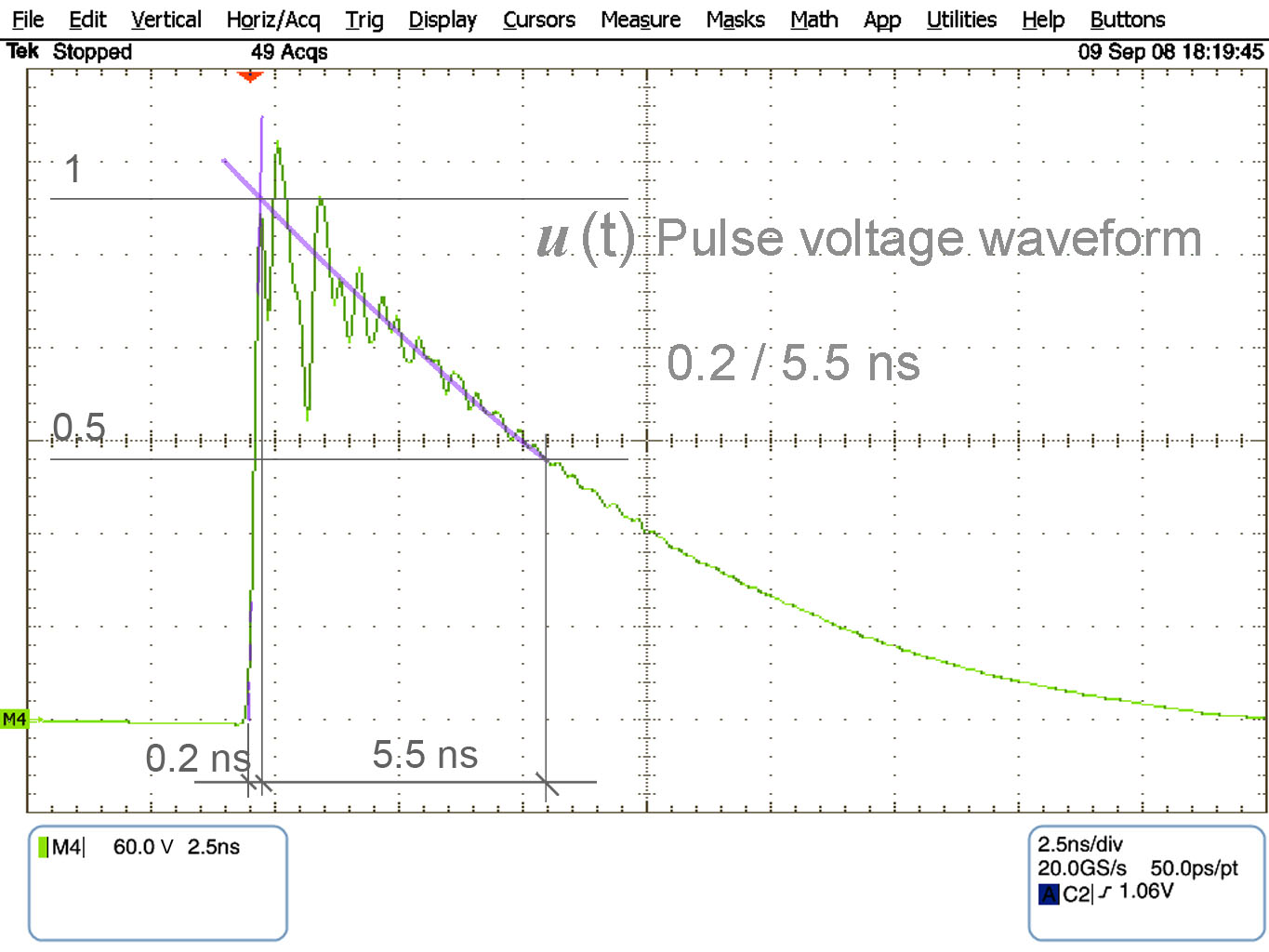

| Pulse voltage characteristic |
|

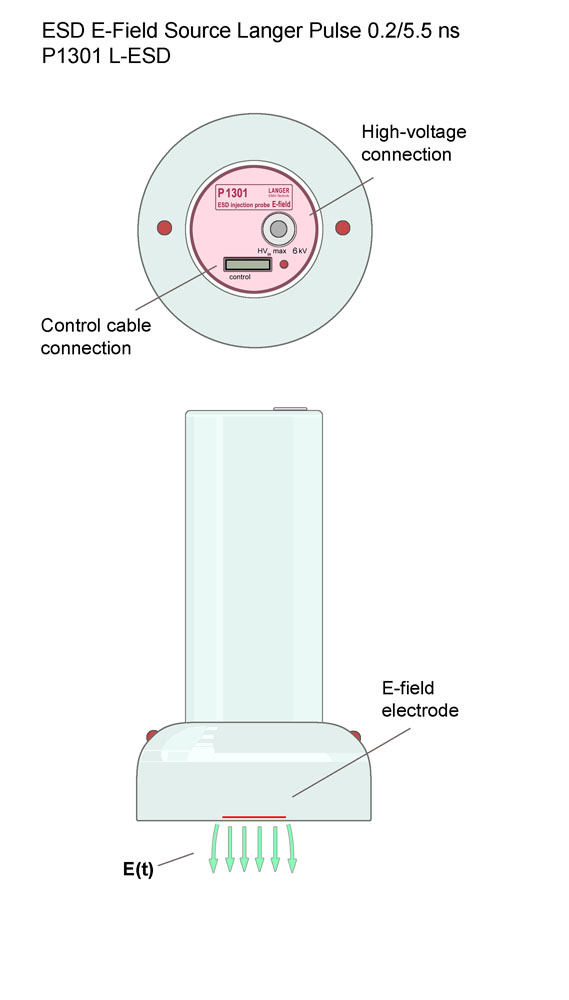

| Design, view 1 |
|
