NNB 21 set
Line Impedance Stabilisation Network

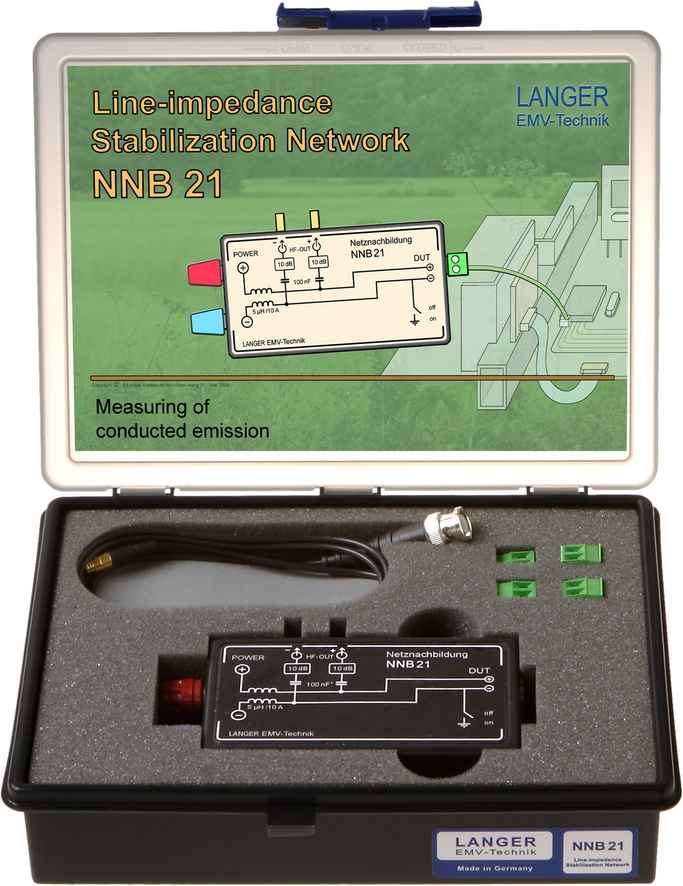

![NNB 21 set, Line Impedance Stabilisation Network](/fileadmin/Bilder300/2013.06.27_Case NNB21.jpg?v=1721026804401)

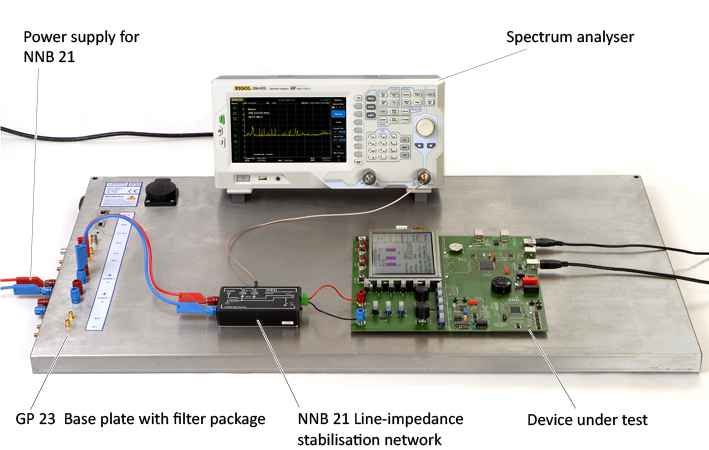

![Application with NNB 21](/fileadmin/Bilder300/2020.09.11 NNB 21 -Messaufbau A 485_en.jpg?v=1721026806847)

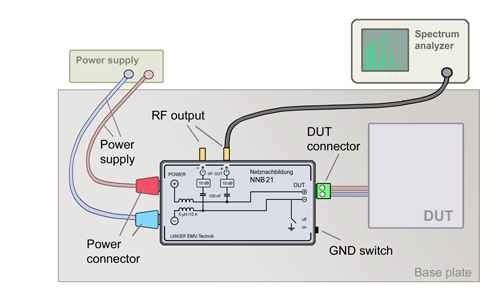

![Measurement with NNB21](/fileadmin/Bilder300/NNB21-02 Messaufbau-e.png?v=1721026806847)
![Scope of delivery Set NNB 21](/fileadmin/Bilder300/2020.09.11_LU NNB 21 en_web.jpg?v=1721026806847)
Short description
The NNB 21 line impedance stabilisation network is designed for measuring conducted
disturbance emission of a device under test according to the standard CISPR 25/ISO 7637.
It measures the RF interference, which couples into the vehicle electrical system. Measurements during the development in a frequency range from 100 kHz to 1GHz can be carried out.

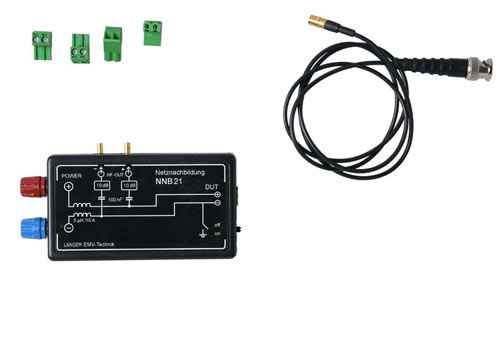

Scope of delivery
- 1x NNB 21, Line Impedance Stabilisation Network
- 1x SMB-BNC 1 m, SMB-BNC Measurement Cable
- 1x NNB 21 acc, Accessories
- 1x NNB 21 case, System Case
- 1x NNB 21 m, NNB 21 Set User Manual
Technical parameters
Frequency range | 100 kHz - 1 GHz |
DC resistance | < 20 mΩ |
Internal attenuation | 10 dB |
Measuring channels | 2 |
Continuous power rating | |
Current | 10 A |
Dielectric strength | 50 V |
Weight | 400 g |
