P11t

Mini Burst Field Generator (B, Trigger)

  • Short description
  • Technical parameters
Send enquiry Datasheet
  • P11t, Mini Burst Field Generator (B, Trigger)
  • Design of P11t mini burst field generator

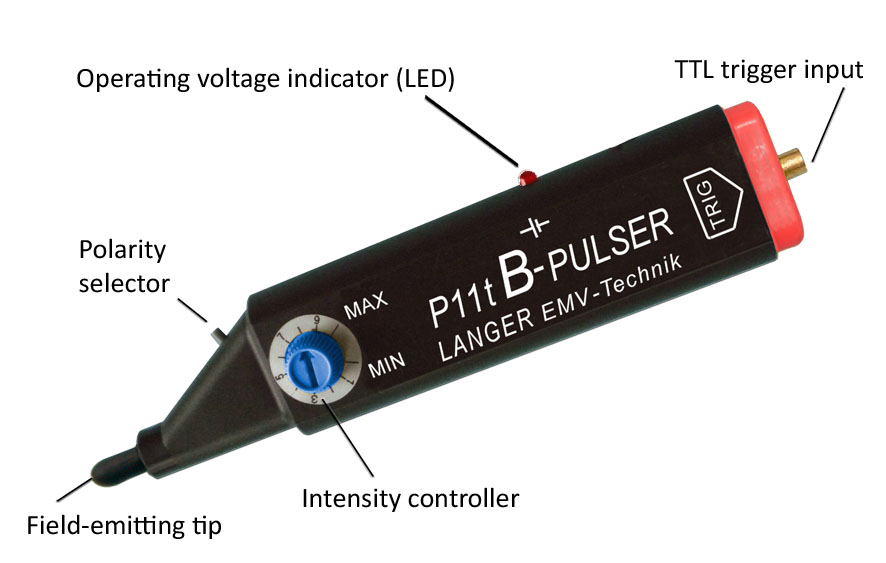

    Design of P11t mini burst field generator
P11t, Mini Burst Field Generator (B, Trigger) Design of P11t mini burst field generator
  • P11t, Mini Burst Field Generator (B, Trigger)
  • Design of P11t mini burst field generator
Short description

The P11t mini burst generator creates a magnetic disturbance field of approx. 3 mm diameter on its tip. The field and its signals from devices under test or external signal generators can be synchronized via the TTL trigger input. Sensitive parts of conducting paths, components and component connectors can be localized with P11t.

Triggering the disturbance field allows the P11t to precisely analyze the noise immunity of complex electronic circuits during certain operating conditions. Conventional generators and test stations can be used to determine whether a device complies with the standard noise immunity required by law. However, weak spots on an assemby can not be presicely located. Detailed information about their location, susceptibility, and type of action (E or B field susceptibility) are required to easily and efficiently locate them on the printed circuit board and eliminate them. Mini burst field generators are handy and can be used at the electronic developer’s workspace.

Technical parameters
Generator voltage 400 V
External trigger input SMB, male, jack; 5 V TTL
Generated magnetic flux density ca. 1 mT
Pulse parameter
Pulse width 2 ns ... 8 ns
Frequency single ... 10 kHz
Polarity switchable
Trigger-pulse delay 3 µs
Supply voltage 6.5 V ... 15 V
Current input 50 mA @ 6.5 V
Weight 20 g
Sizes (L x W x H) (125 x 24 x 20) mm
Measuring principles Measuring principles Measuring principles
Pulse shape (maximum intensity) Pulse shape (maximum intensity) Pulse shape (maximum intensity)
Pulse shape (minimum intensity) Pulse shape (minimum intensity) Pulse shape (minimum intensity)
Pulse shape (measured) Pulse shape (measured) Pulse shape (measured)
