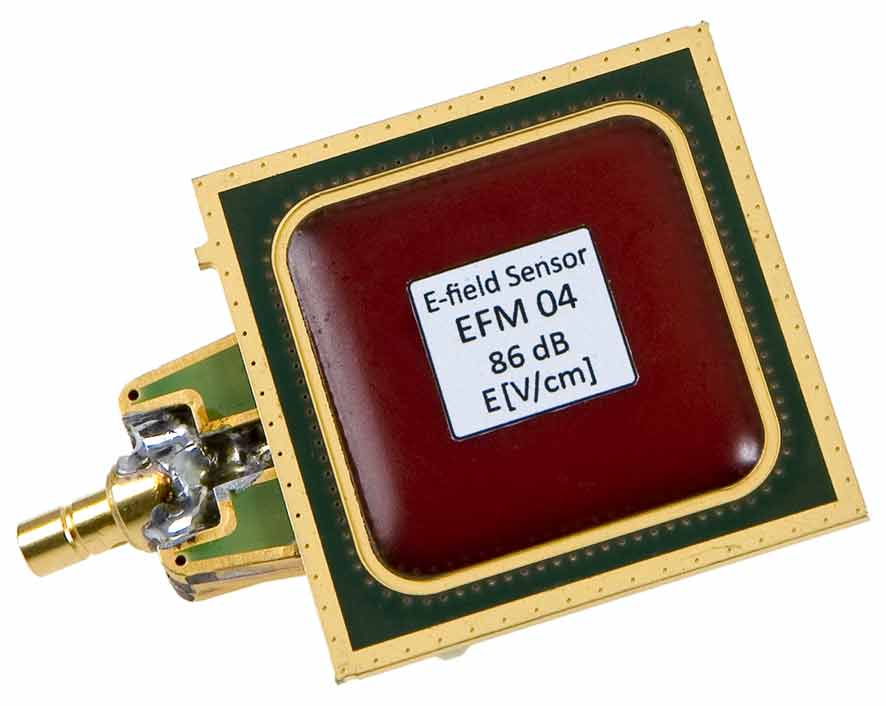

EFM 04
E-Field Meter
Short description
The EFM 04 field meter is used to measure fast transient fields or RF fields. Time responses or frequency responses can be detected for a bandwidth up to 3 GHz. In connection with the ICE1 IC test environment the EFM 04 is used as a measurement- and calibration bench for field sources of the IC test system. For general purpose measurements, e.g. the measurement of ESD generator’s electric fields, the EFM 04 can also be used as measurement and calibration bench.
Technical parameters
| Frequency range | 1 MHz ... 3 GHz |
| Measuring output | 50 Ω, SMB |
| Correction oscilloscope | E [V/cm]: UAV ∙ 20 ∙ 10³ |
| Correction oscilloscope | dE/dt [V/cm ∙ s]: 20 ∙ 103 ∙ dUAV / dt |
| Correction spectrum analyser | E [V/cm]: UAV + 86 dB |
| Correction spectrum analyser | dE/dt [V/cm ∙ s]: UAV + 86 dB + 20 ∙ log ω |
| Max. RF-field strength | 1 kV / cm |
| Max. pulse field strength | 100 kV / cm |

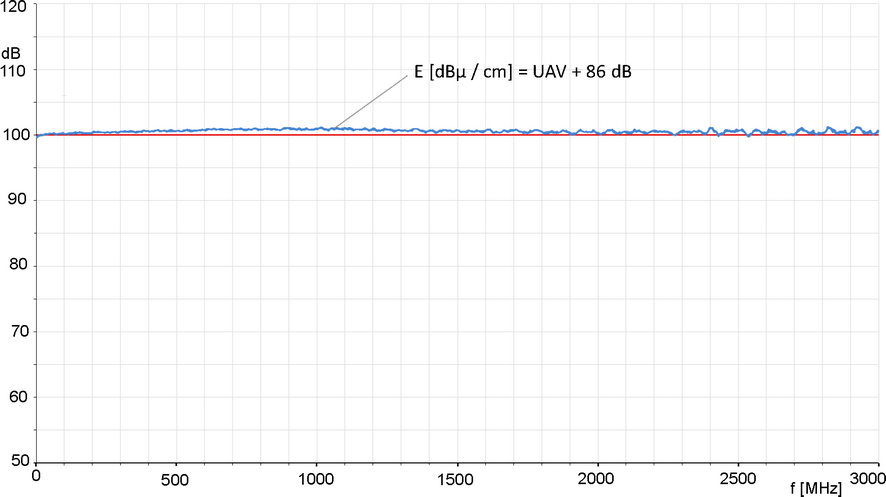

| Frequency response |
|
