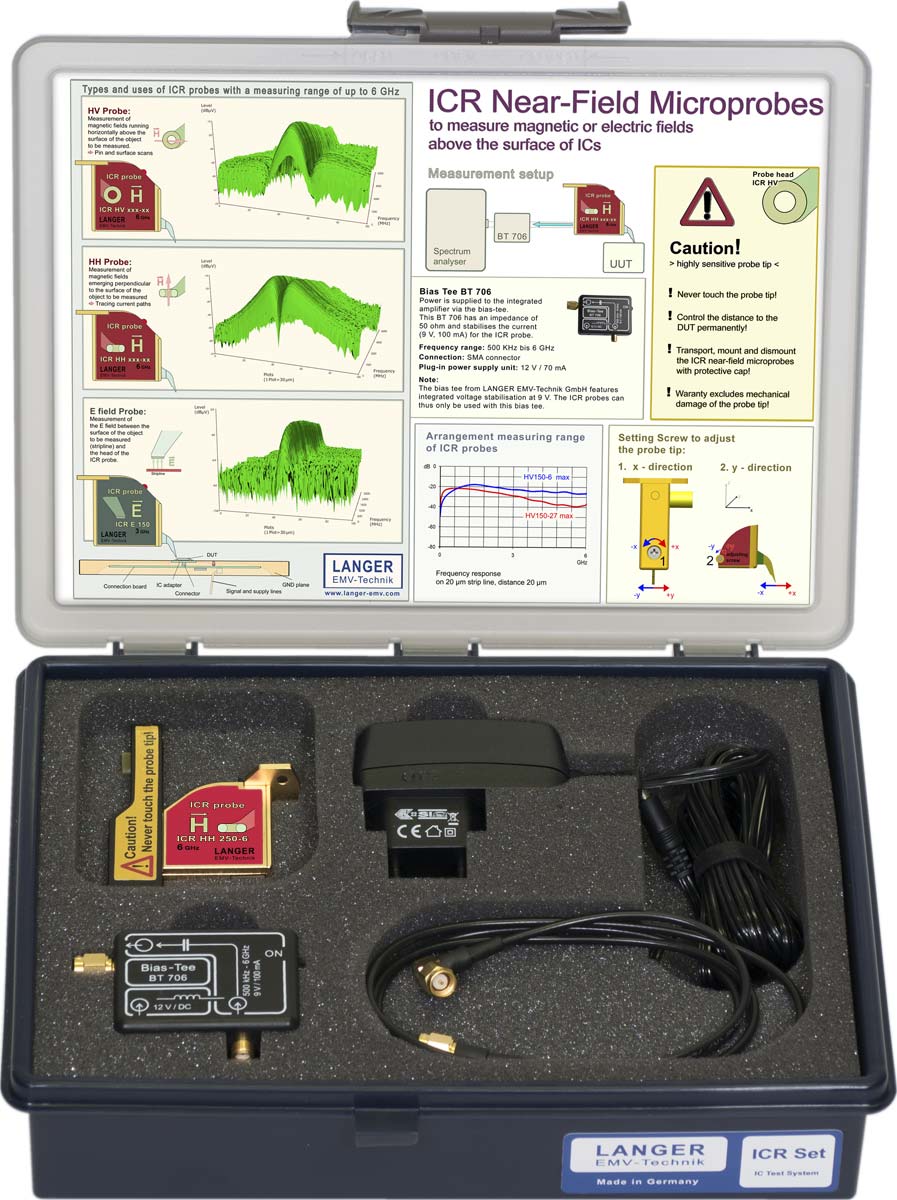

Near-Field Microprobe Sets ICR HH H Field
The ICR HH set contains one ICR near-field microprobe for magnetic field measurement. The measuring coil is horizontal in the probe head. The ICR probes are operated with a positioning system (Langer Scanner).
-
ICR HH100-6 set
Near-Field Microprobe 2.5 MHz - 6 GHz
The near-field microprobe is designed for a high-resolution measurement of magnetic near fields. With the ICR H probe the following measurements can be performed: - Surface Scan via IC according to IEC 61967-3 - Volumenscan via IC - Pin Scan The measuring coil at the ICR RF probe head is horizonta…
-
ICR HH100-27 set
Near-Field Microprobe 1.5 MHz - 6 GHz
The near-field microprobe is designed for a high-resolution measurement of magnetic near fields. With the ICR H probe the following measurements can be performed: - Surface Scan via IC according to IEC 61967-3 - Volumenscan via IC - Pin Scan The measuring coil at the ICR RF probe head is horizonta…
-
ICR HH150-6 set
Near-Field Microprobe 2.5 MHz - 6 GHz
The near-field microprobe is designed for a high-resolution measurement of magnetic near fields. With the ICR H probe the following measurements can be performed: - Surface Scan via IC according to IEC 61967-3 - Volumenscan via IC - Pin Scan The measuring coil at the ICR RF probe head is horizonta…
-
ICR HH150-27 set
Near-Field Microprobe 1.5 MHz - 6 GHz
The near-field microprobe is designed for a high-resolution measurement of magnetic near fields. With the ICR H probe the following measurements can be performed: - Surface Scan via IC according to IEC 61967-3 - Volumenscan via IC - Pin Scan The measuring coil at the ICR RF probe head is horizonta…
-
ICR HH250-6 set
Near-Field Microprobe 2.5 MHz - 6 GHz
The near-field microprobe is designed for a high-resolution measurement of magnetic near fields. With the ICR H probe the following measurements can be performed: - Surface Scan via IC according to IEC 61967-3 - Volumenscan via IC - Pin Scan The measuring coil at the ICR RF probe head is horizonta…
-
ICR HH250-75 set
Near-Field Microprobe 0.5 MHz - 2 GHz
The near-field microprobe is designed for a high-resolution measurement of magnetic near fields. With the ICR H probe the following measurements can be performed: - Surface Scan via IC according to IEC 61967-3 - Volumenscan via IC - Pin Scan The measuring coil at the ICR RF probe head is horizonta…
-
ICR HH500-6 set
Near-Field Microprobe 2 MHz - 6 GHz
The probe is designed for a high-resolution measurement of magnetic near fields. With the ICR H probe the following measurements can be performed: - Surface Scan via IC according to IEC 61967-3 - Volumenscan via IC - Pin Scan The measuring coil at the ICR RF probe head is horizontally aligned to t…
-
ICR HH500-75 set
Near-Field Microprobe 200 kHz - 1 GHz
The probe is designed for a high-resolution measurement of magnetic near fields. With the ICR H probe the following measurements can be performed: - Surface Scan via IC according to IEC 61967-3 - Volumenscan via IC - Pin Scan The measuring coil at the ICR RF probe head is horizontally aligned to t…
