GND 25

Ground Plane

Send enquiry Datasheet
  • GND 25, Ground Plane
  • CB 0708 designation
    CB 0708 designation
GND 25, Ground Plane CB 0708 designation
  • GND 25, Ground Plane
  • CB 0708 designation
Short description

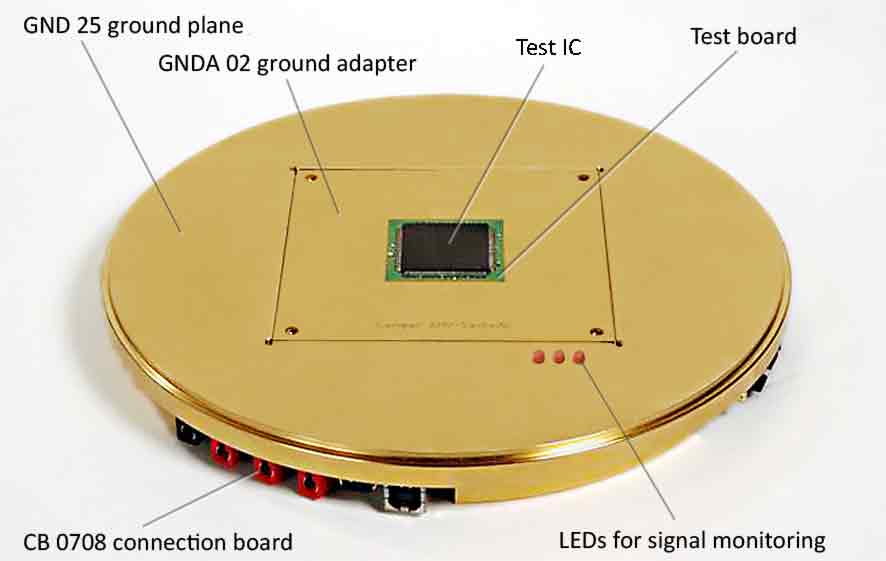

The GND 25 ground plane ensures the RF-compatible contacting of the probe during an EMC measurement at a test IC. The GND 25 consists of steel with a gold plated surface. The recess (103 mm x 103 mm) is designed for the placement of GNDA ground adapters (GNDA 01-04) and TEM cell prints (100 mm x 100 mm).

The CB 0708 connection board is placed into the undersite of the ground plane. On the ground plane there are three openings for LEDs.

Technical parameters
Design, view 1
Height 24 mm
Depth of the recess 1.7 mm
Diameter 218 mm
Opening (103 x 103) mm
Weight 2 kg
Design, view 1 Design, view 1
