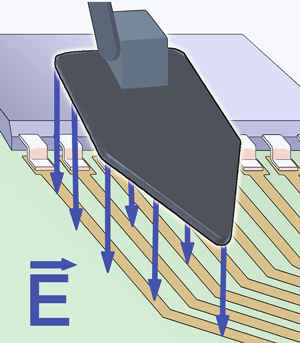

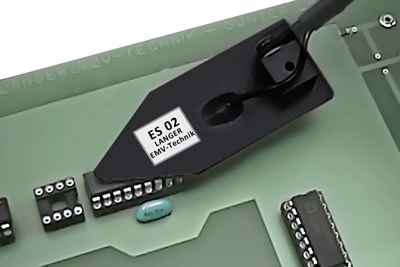

The surface of the E field source head allows the extensive coupling into housing surfaces and interior areas, connection technology and assemblies with conducting path structures and ICs ( e.g. bus systems, LCD displays). Furthermore its tip can be used for the localization of small E- field sensitive weak spots (conducting paths, quartz crystal, pull-up resistance, ICs).
