P331 L-ESD set
Langer ESD Pulse 0.2/5 Injection
-
-

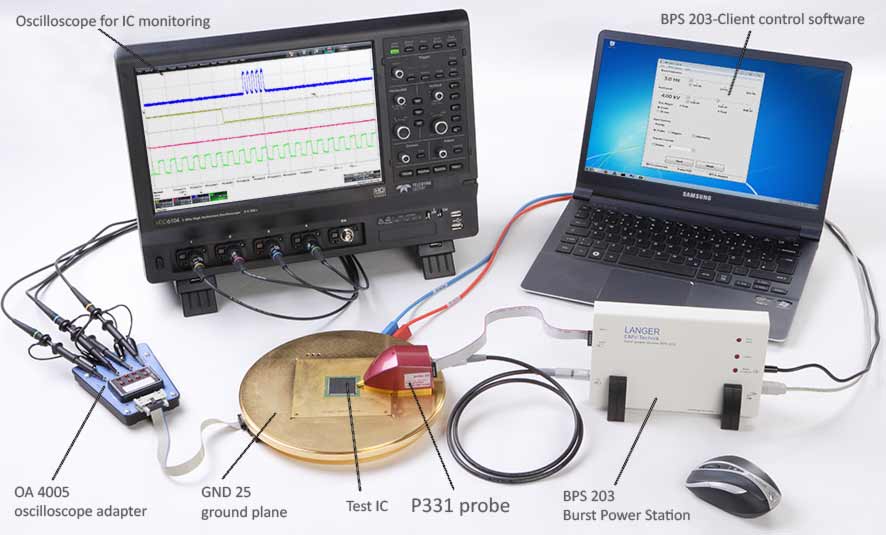

Measurement set-up with P311 -

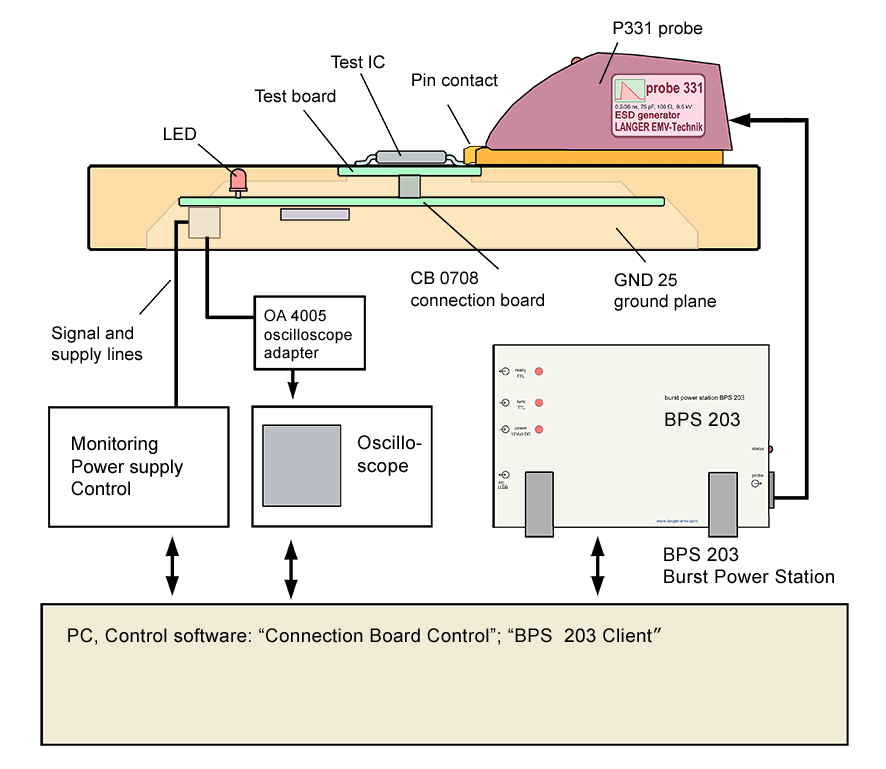

Scheme measuring set-up with P331 -

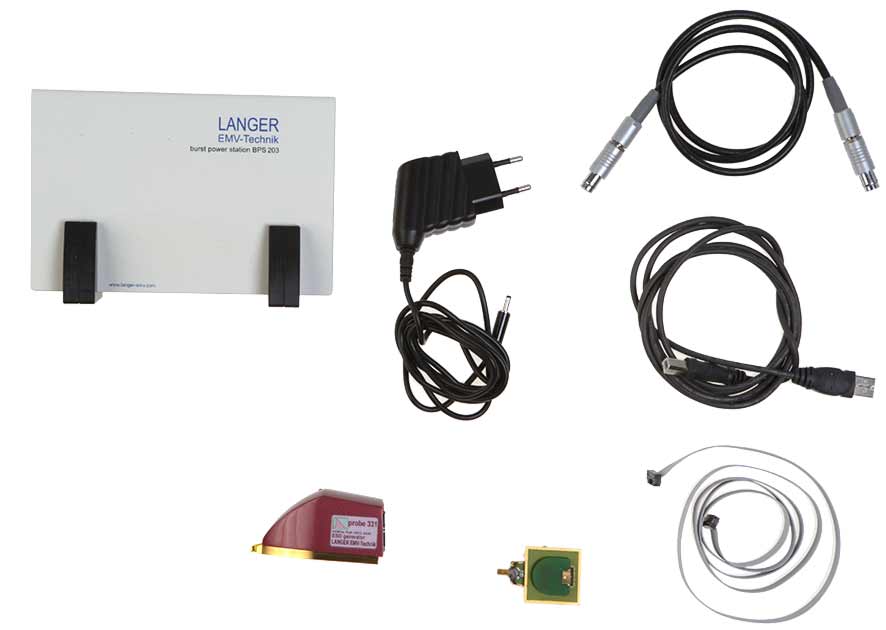

Scope of delivery Set 331
Short description
The P331 L-ESD probe set is used for conducted coupling of Langer ESD pulses (200 ps rise time) into ICs. The P331 L-ESD probe sizing orientates itself by mechanisms of the ESD coupling into electronic assemblies. BPS 203 powers and controls the probe.
Scope of delivery
- 1x P331 L-ESD, ESD Generator Langer Pulse 0.2/5 ns
- 1x BPS 203, Burst Power Station
- 1x BPS 203-Client, Control Software
- 1x SMA-SMB 1 m, SMA-SMB Measuring Cable
- 1x HV FI-FI 1 m, High-Voltage Cable, Fischer-Fischer
- 1x FBK 12P 1m, Control Cable
- 1x USB-AB, USB Cable Type A-B
- 1x NT Ex EU, Power Supply Unit

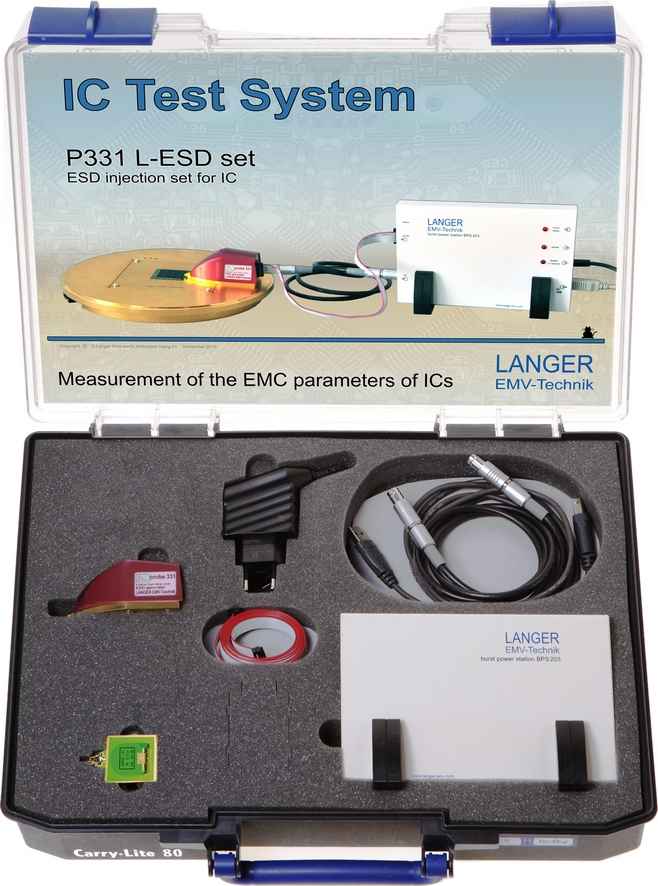

- 1x P331 case, System Case
- 1x P331 m, P331 Set User manual
- 1x P331 acc, Accessories
Recommended products
Scope of delivery details
-

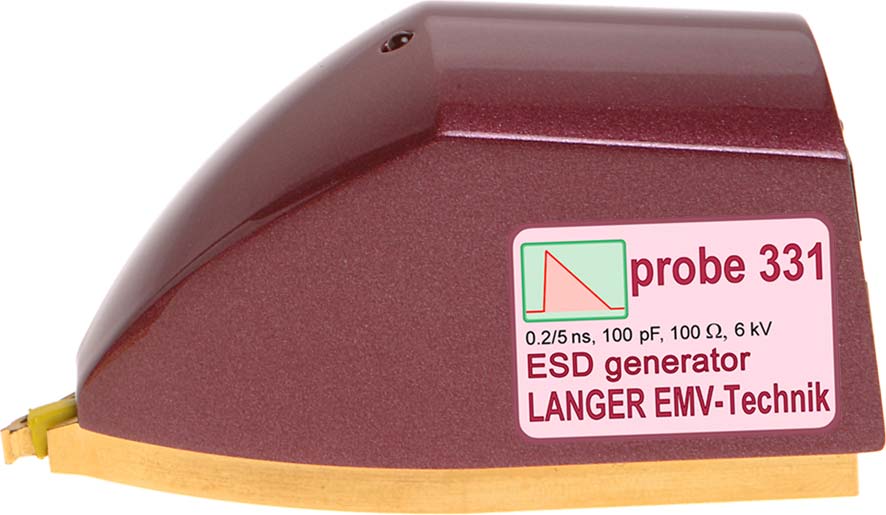

P331 L-ESD
ESD Generator Langer Pulse 0.2/5 ns
-
BPS 203
Burst Power Station
The BPS 203 Burst Power Station is used as high voltage supply and control unit for ESD-probes. The unit control is connected to the user PC via an USB-interface. The control is realized by the BPS 203-client software.
-
BPS 203-Client
Control Software
The BPS 203-client software is used to control the BPS 203 Burst Power Station and thereby the connected probe. The software is installed on the user PC.
-
P331 acc
Accessories
The accessories are essential for the use of the probe set. They include a high-voltage cable with the Fischer-Fischer connectors, a flat ribbon cable for connecting the probe with BPS 203 and a wall plug transformer.
