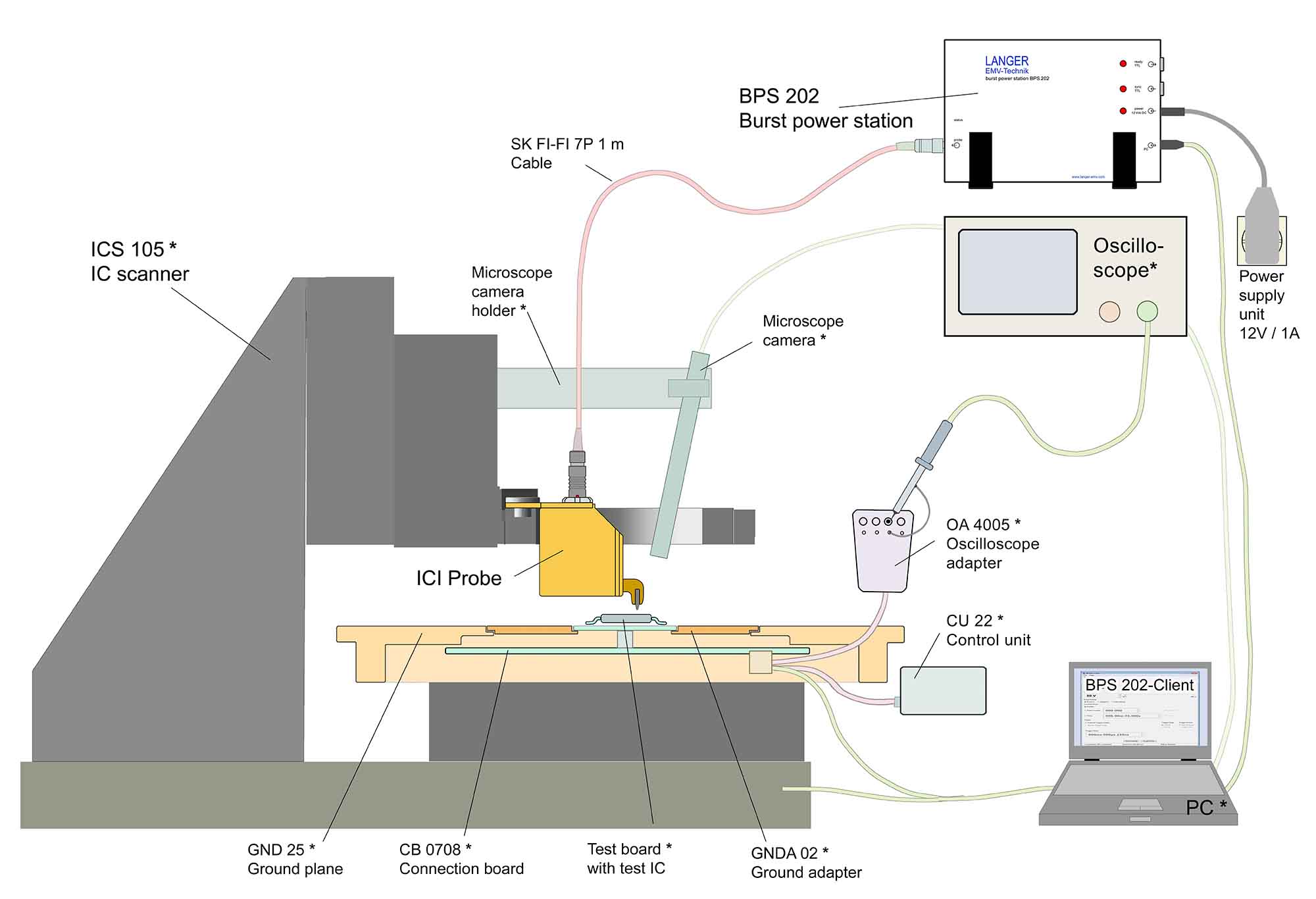

  • Schema of measurement set-up
    Schema of measurement set-up
ICI I900 L-EFT set, Pulse Current Probe set Contents of the case ICI I900 L-EFT-set Application of ICI I900 L-EFT Pulse Current Source Schematic set-up with mover Schema of measurement set-up
  • ICI I900 L-EFT set, Pulse Current Probe set
  • Contents of the case ICI I900 L-EFT-set
  • Application of ICI I900 L-EFT Pulse Current Source
  • Schematic set-up with mover
  • Schema of measurement set-up
Short description

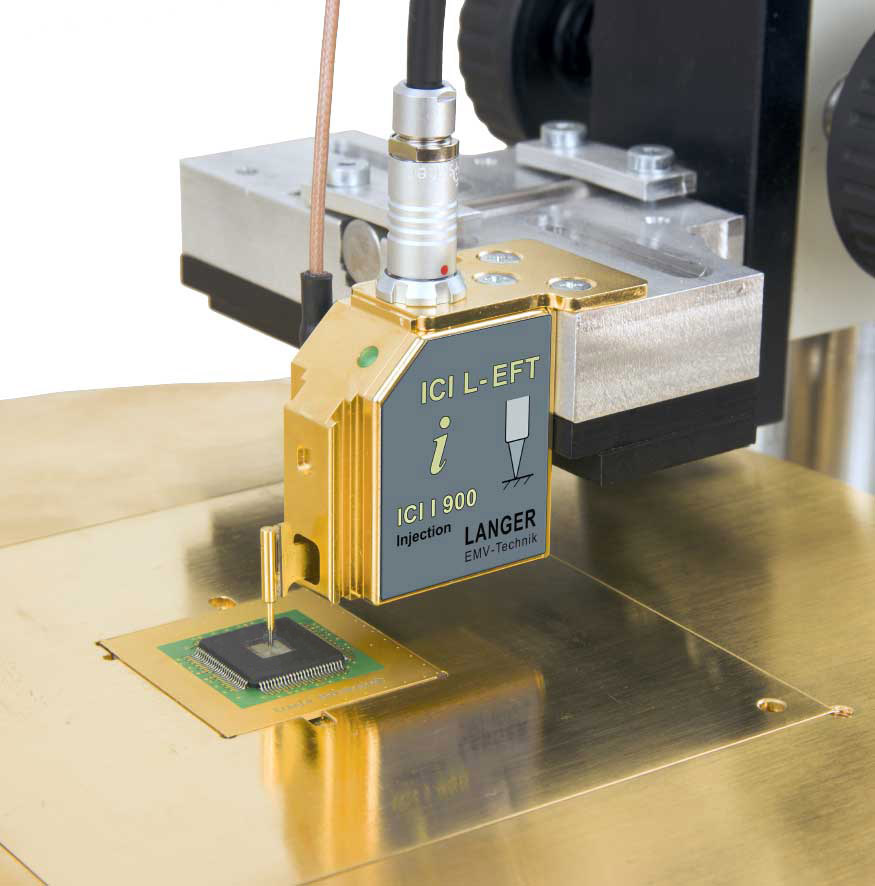

The ICI I900 L-EFT set includes an ICI pulse current source that emits current pulses. This allows very accurate and high resolution IC analysis and body biased injection to be performed, e.g. for testing safety-critical circuits. Special features are the high-resolution tip (for testing extremely small areas) and a very low trigger-to-pulse jitter (to specifically disturb the program flow).

Scope of delivery
Technical parameters
Pulse parameter
Rise time < 2 ns
Repetition frequency 0.1 Hz - 20 kHz
Polarity (set by software) + / - / alternating
Trigger-pulse delay (Bypass Mode - Delay Line)
min. Trigger-pulse delay (typ.) 100 ns
max. Trigger-pulse delay (typ.) 450 ns
max. Jitter (typ.) ± 1 ns
Supply voltage BPS 202
Software BPS 202-Client / DLL (32 Bit / 64 Bit)
Win XP SP3 or higher
