EPM 02
dE/dt Field Meter
Short description
The EPM 02 is suitable for the measurement of fast transients with a bandwidth up to 3 GHz. The dE/dt field meter doesn’t have a lower limit frequency. Depending on the noise limit of the used measuring device the usage of the EPM 02 is limited in the lower frequency range. For example, at a noise limit of 126 nV and a field strength of 100 V/cm the measurement limit of the EPM 02 is 1 kHz at the lower frequency. The attenuation of the dE/dt field meter decreases proportionally to the frequency.
Technical parameters
| Frequency range | 3 GHz |
| Measuring output | 50 Ω, SMB |
| Correction oscilloscope | E [V/cm]: 3,55 ∙ 1012 ∙ ∫UAV dt |
| Correction spectrum analyser | E/dB(µV/cm): u / dB(µV) + 251 - 20 log_10 (ω/Hz) |
| Correction spectrum analyser | E/dB(µV): u / dB(µV) +251 -16 - 20 log_10 (f/Hz) |
| Max. RF-field strength | < 1 kV/cm |
| Max. pulse field strength | < 100 kV/cm |

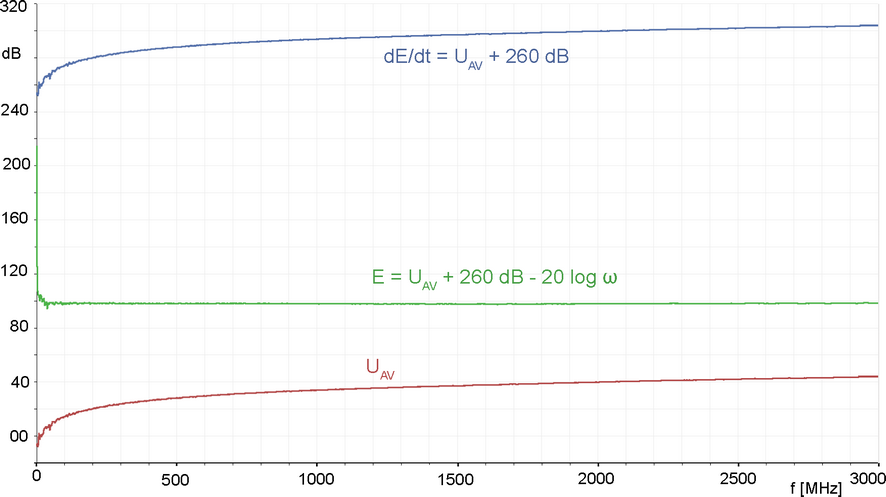

| Frequency response |
|
