PA 306 SMA set

Preamplifier 100 kHz up to 6 GHz

Short description

The PA 306 SMA serves for amplifying measurement signals, for example weak signals from high-resolution near-field probes. The PA 306 is connected to the 50 Ω input of a spectrum analyzer or oscilloscope and supplied via the plug-in power supply unit included in delivery.

Scope of delivery

1x Case 5, System Case Near-Field Probes for 5 Probes
1x PA 306 SMA, Preamplifier 100 kHz up to 6 GHz
1x NT FRI EU, Power Supply Unit

Technical parameters

Frequency range	100 kHz - 6 GHz
Gain	30 dB
Weight	400 g

Scope of delivery details

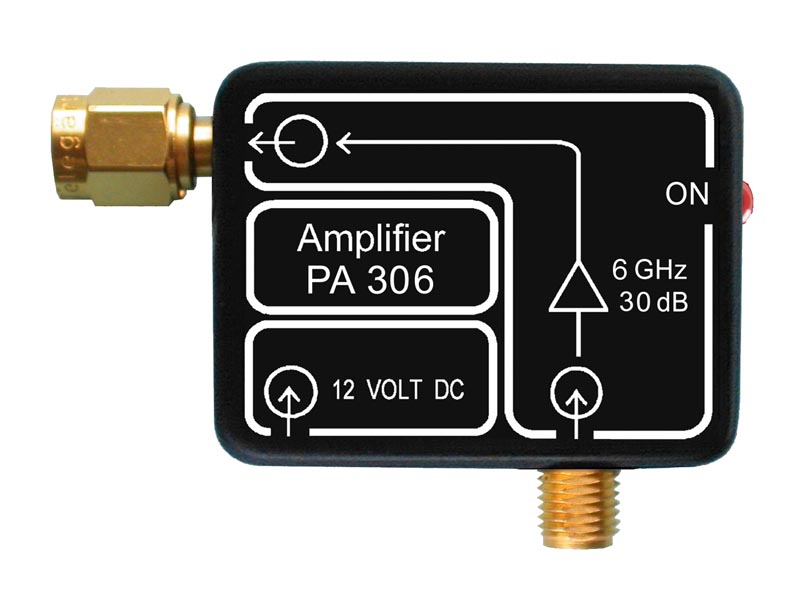

PA 306 SMA

Preamplifier 100 kHz up to 6 GHz

The PA 306 serves for amplifying weak measurement signals, for example from near-field probes or antennas. It is distinguished by its low noise output and high dynamic scope over a wide frequency range.
