P750

RF Voltage Probe 150 Ohm

Send enquiry Datasheet
  • P750, RF Voltage Probe 150 Ohm

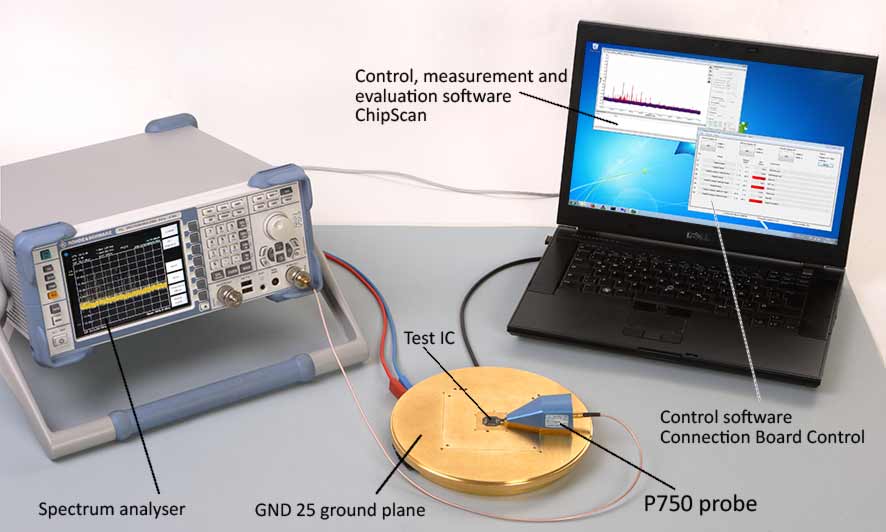

  • Application with P750
    Application with P750
P750, RF Voltage Probe 150 Ohm Application with P750

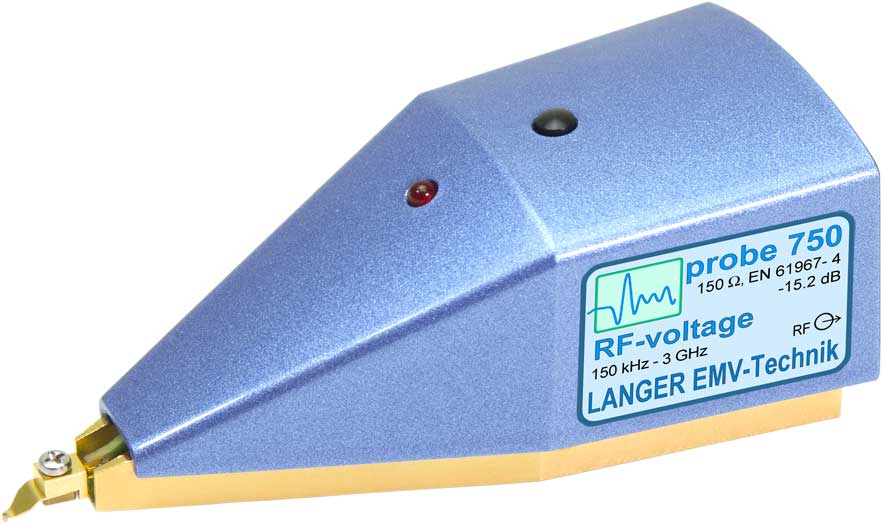

  • P750, RF Voltage Probe 150 Ohm
  • Application with P750
Short description

The P750 RF voltage probe corresponds to a 150 ohm coupling network according to IEC 61967-4 for the RF voltage measurement at IC pins.
The P750 probe has of a high resistance, capacitive coupled input. RF voltages can be measured at different pins of the device under test.

Technical parameters
Frequency response Equivalent circuit Design, view 1
Frequency range 150 kHz ... 3 GHz
Input resistance 150 Ω
Measuring output 50 Ω, SMB
Transfer factor voltage -15.2 dB
Max. input voltage DC 50 V
Max. input voltage RF 3.5 V

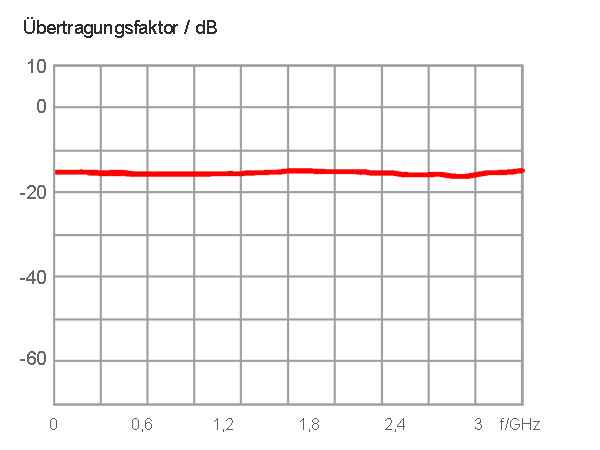

Frequency response Frequency response

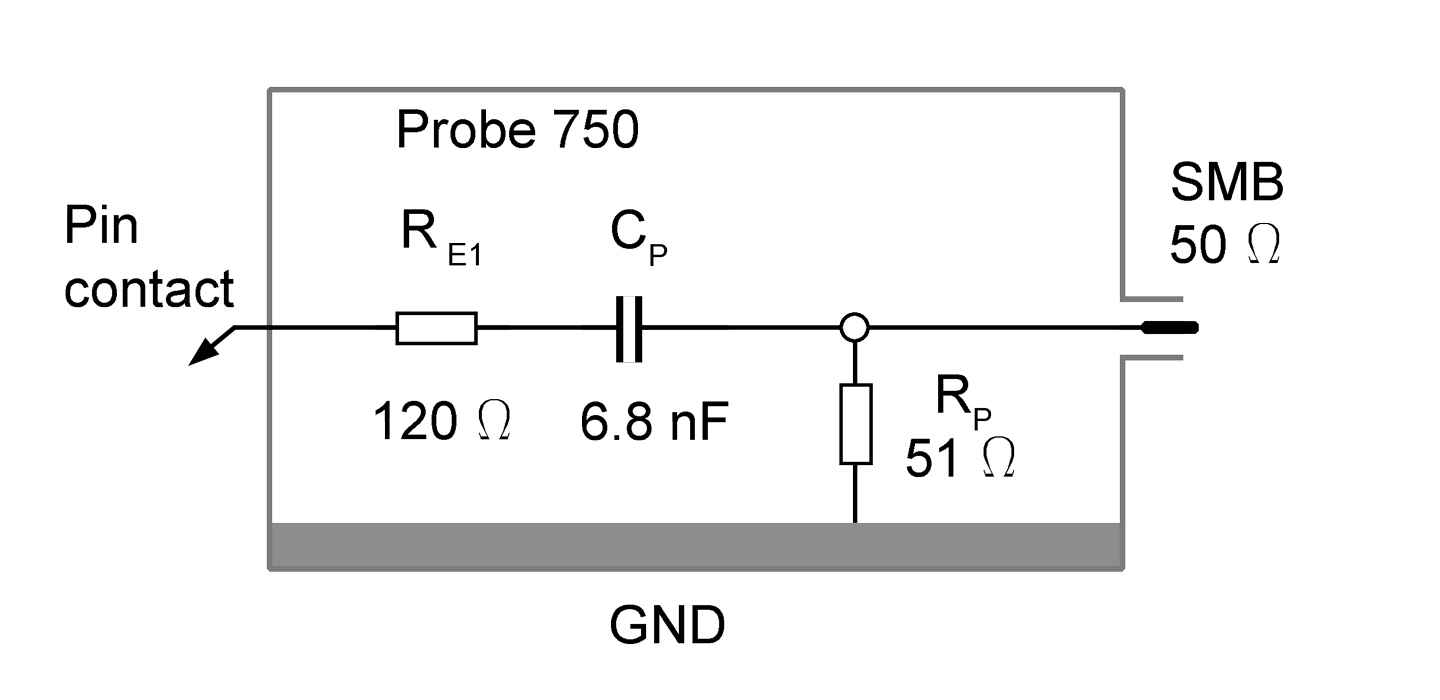

Equivalent circuit Equivalent circuit

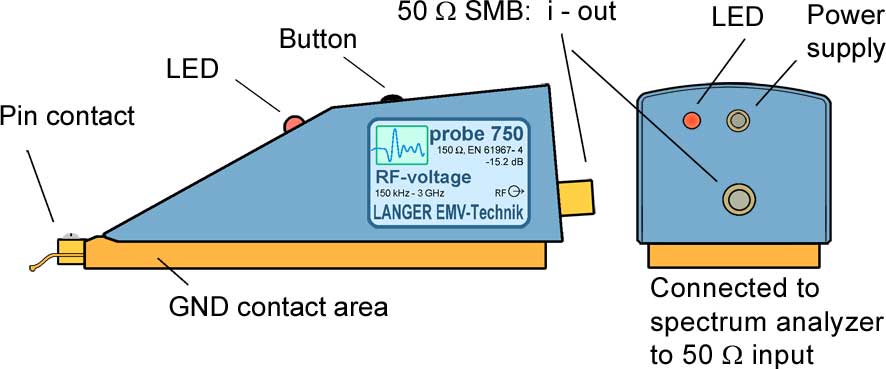

Design, view 1 Design, view 1
