P1602

RF Magnetic Field Probe

Send enquiry Datasheet
  • P1602, RF Magnetic Field Probe

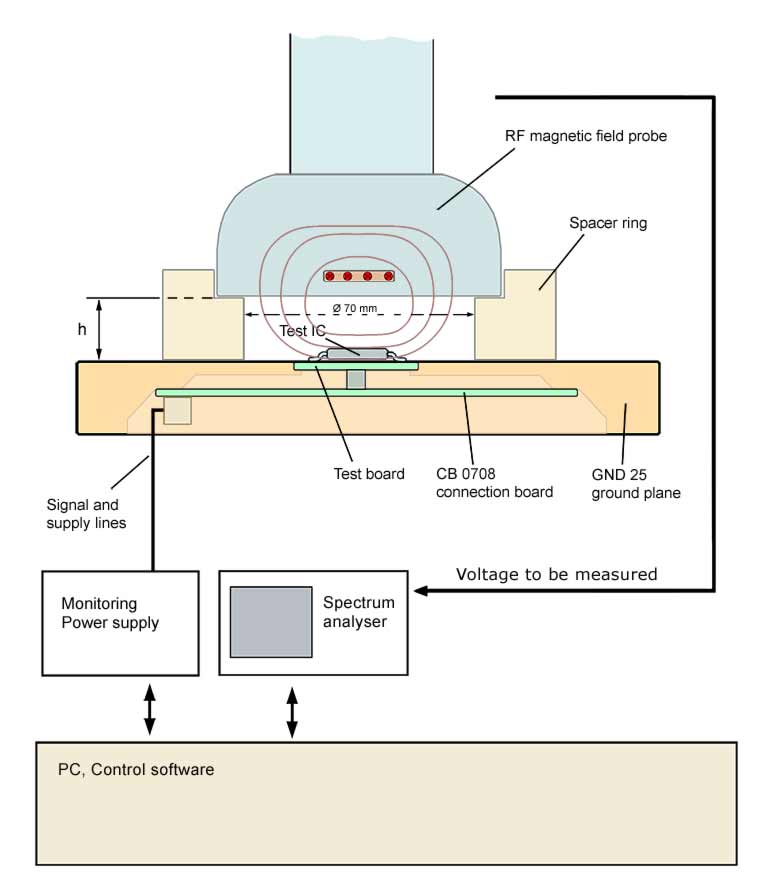

  • Scheme measurement set-up P1602 magnetic field
    Scheme measurement set-up P1602 magnetic field
P1602, RF Magnetic Field Probe Scheme measurement set-up P1602 magnetic field
  • P1602, RF Magnetic Field Probe
  • Scheme measurement set-up P1602 magnetic field
Short description

The P1602 RF magnetic field probe is used to measure magnetic near fields up to 3 GHz, which are coupled out from an IC. These fields induce a voltage inside the field probe’s conductor. The induced voltage is measured by a connected spectrum analyzer.

The RF magnetic field probe has a 50 ohm RF measuring output. In order to locate the magnetic field current in different orientations the RF magnetic field probe is 360° rotatable above the IC. With the help of a distance ring (3 or 10 mm) the RF magnetic field probe is positioned in a defined distance above the IC.

Technical parameters
Frequency response Design, view 1
Frequency range (0 ... 3) GHz
Connector - output N-Connector (50 Ω)
Dimension H-field source (30 x 22) mm
Weight 745 g
Sizes (L x W x H) (180 x 96 x 96) mm

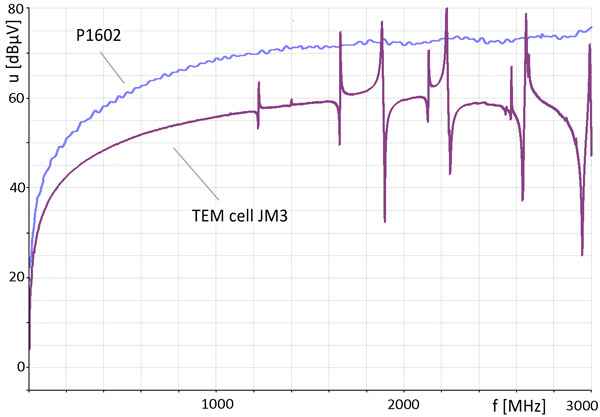

Frequency response Frequency response

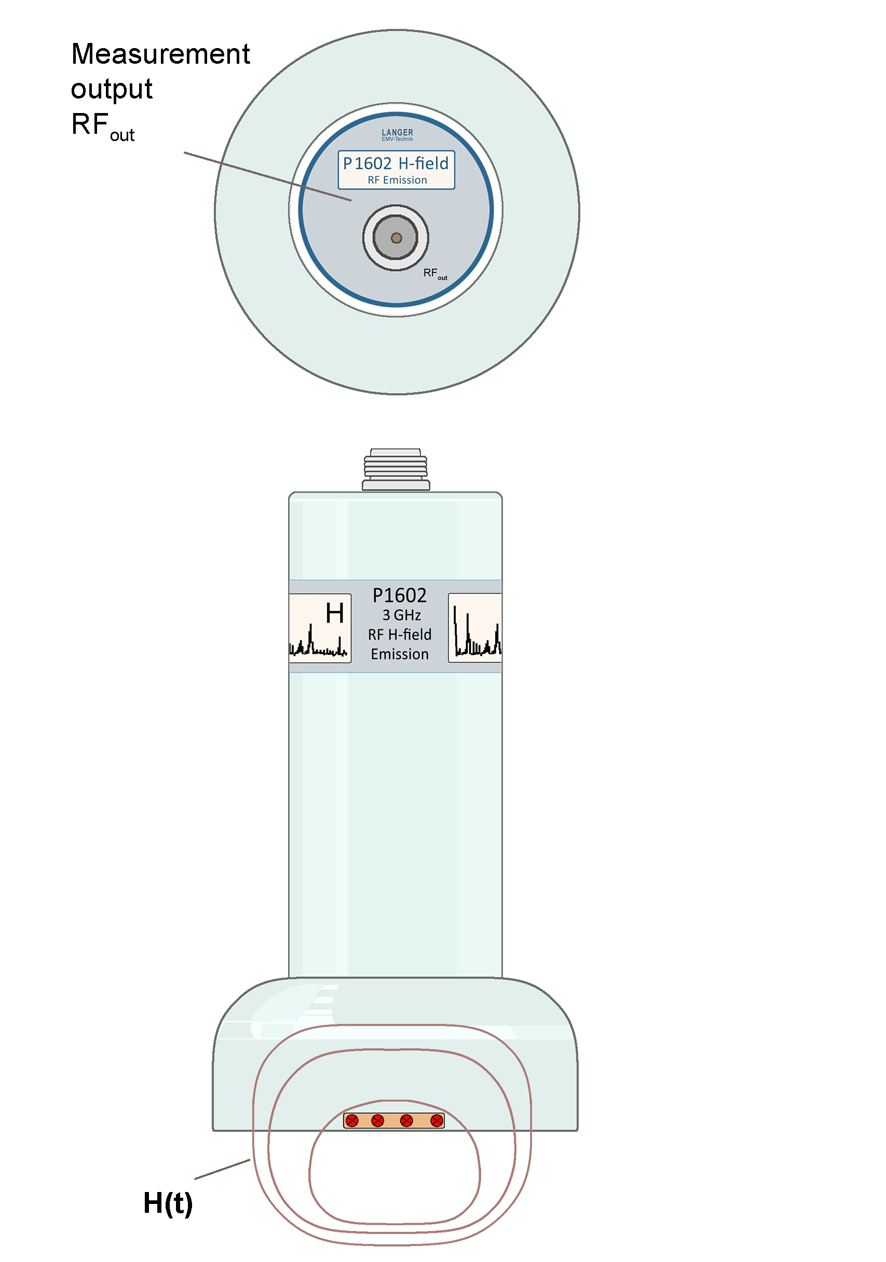

Design, view 1 Design, view 1
