P750
RF Voltage Probe 150 Ohm

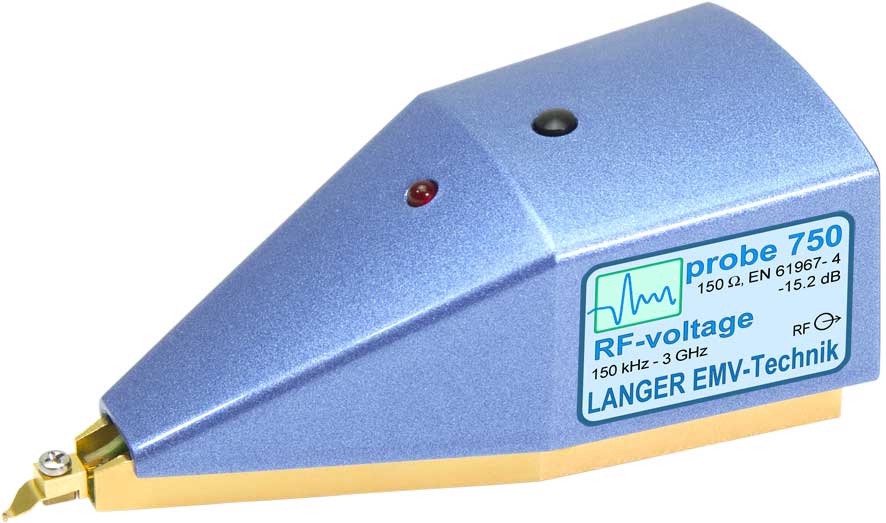

![P750, RF Voltage Probe 150 Ohm](/fileadmin/Bilder300/2018.09.25 P750 Einzelprobe_9210010.jpg?v=1721132662499)

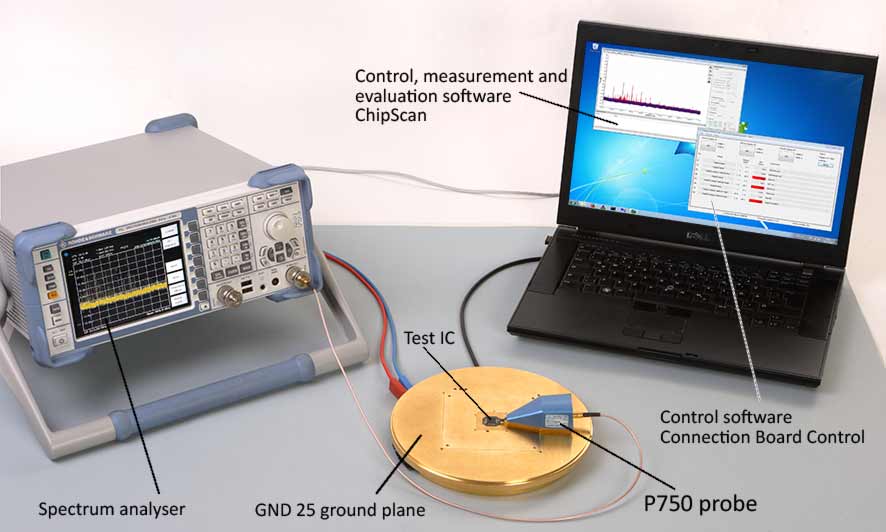

![Application with P750](/fileadmin/Bilder300/2013.09.16 P750 application wen.jpg?v=1721132664612)
Short description

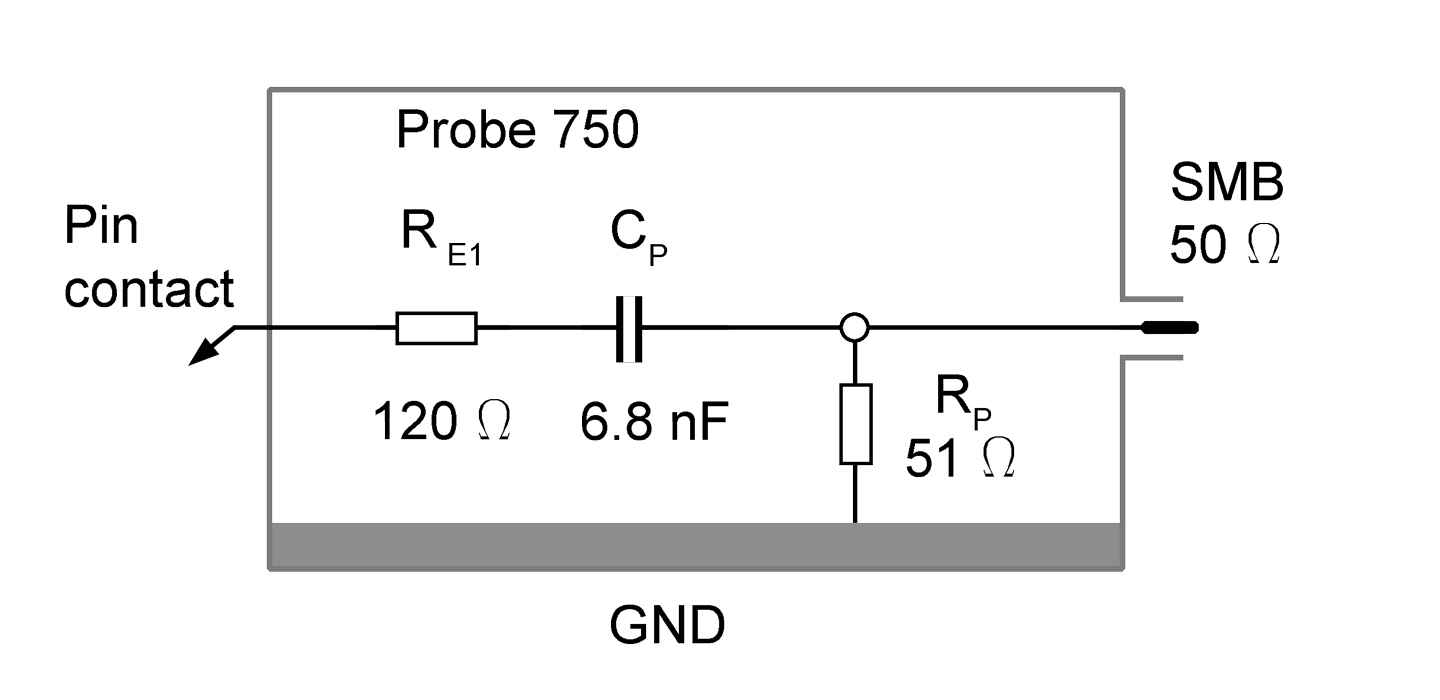

The P750 RF voltage probe corresponds to a 150 ohm coupling network according to IEC 61967-4 for the RF voltage measurement at IC pins.
The P750 probe has of a high resistance, capacitive coupled input. RF voltages can be measured at different pins of the device under test.
