HR-R 8-1 set
Near-Field Probe Set up to 40 GHz B-field
-
-

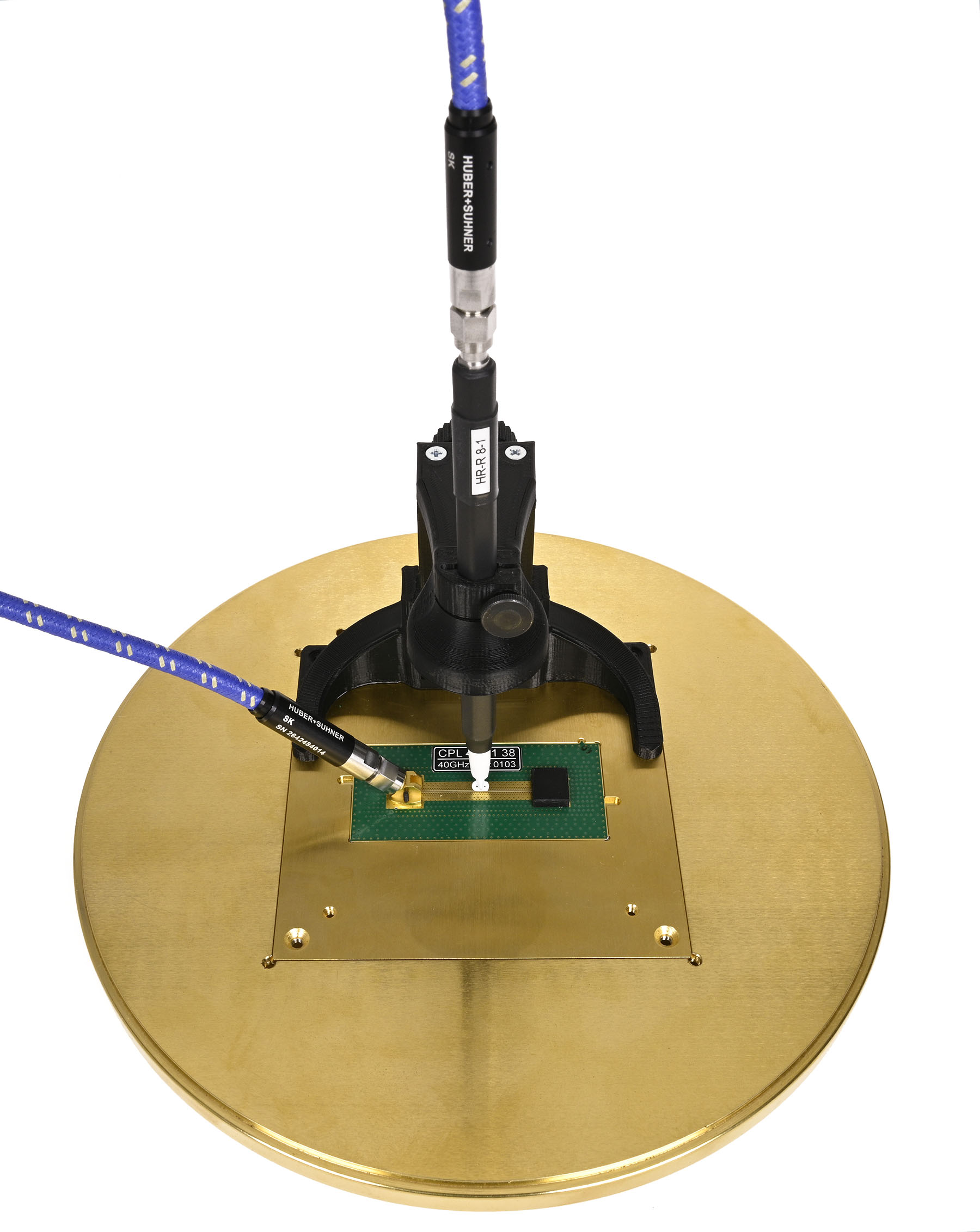

Measurement setup B-field probe HR-R 8-1 over 40 GHz coplanar line
Short description

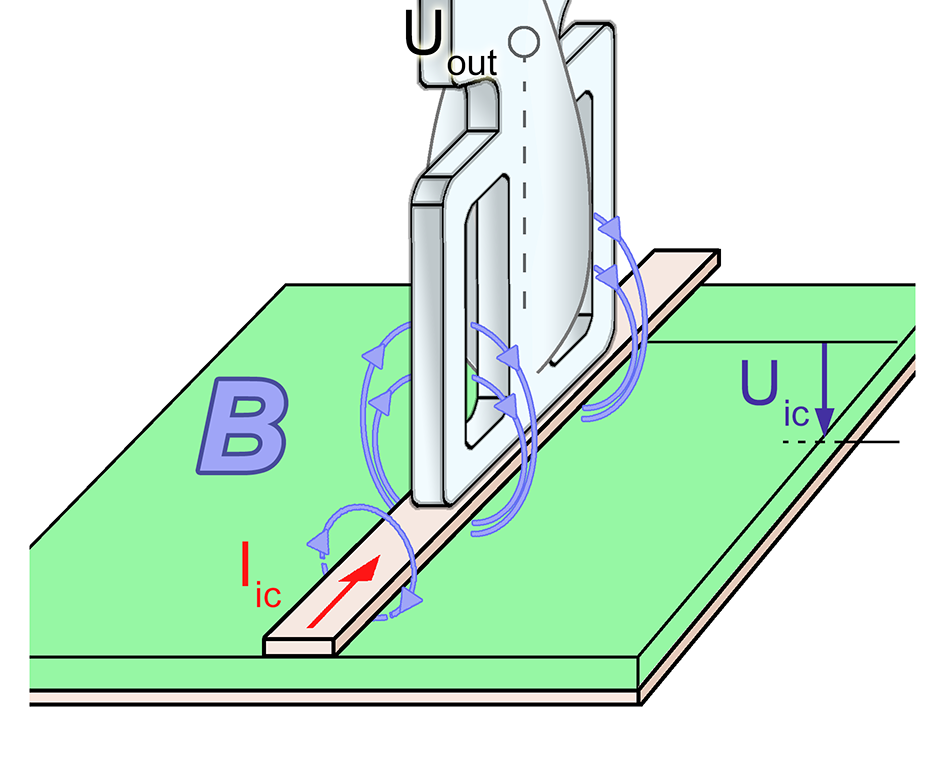

The HR-R 8-1 set contains the HR-R 8-1 B field probe. With this probe magnetic field measurements up to 40 GHz can be performed. The special probe head of the HR-R 8-1 allows measurements on IC’s, circuit board structures and components for the localization of high frequency magnetic fields.

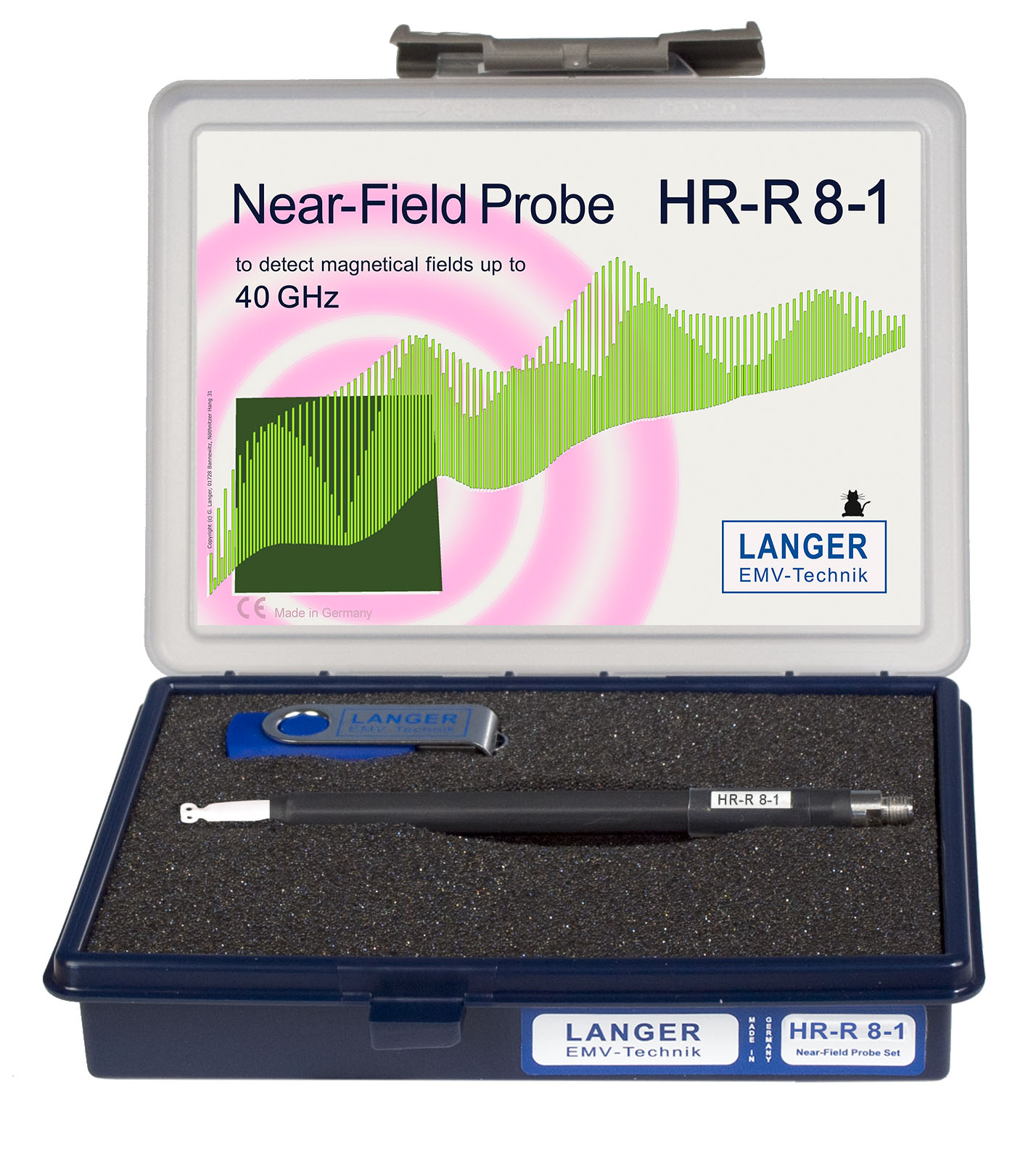

Scope of delivery
- 1x HR-R 8-1, Near-field probe up to 40 GHz B-field
- 1x CS-ESA Viewer, ChipScan-ESA Viewer Software / USB
- 1x HR-R char, HR-R 8-1 Characteristic
- 1x HR-R 8-1 m, User manual
- 1x Case 4, System Case Near-Field Probes for 4 probes
Recommended products
Technical parameters
| upper cut-off frequency | 40 GHz |
| Connector - output | 2.92 mm (K), female, jack |
