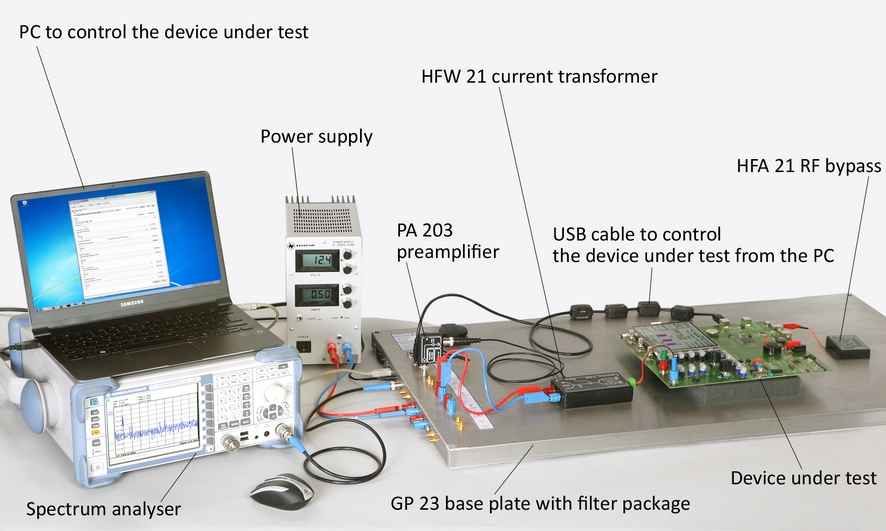

The RF-current transformer measures high-frequency currents at the DUT's lines. For reproducible measurements a metallic ground plane is needed as a reference plane. The small-scale measurement set-up at the developer's workspace allows for fast analysis of EMC measuring effects.
The HFW 21 allows for the separate measurement of common-mode currents and differential-mode currents.

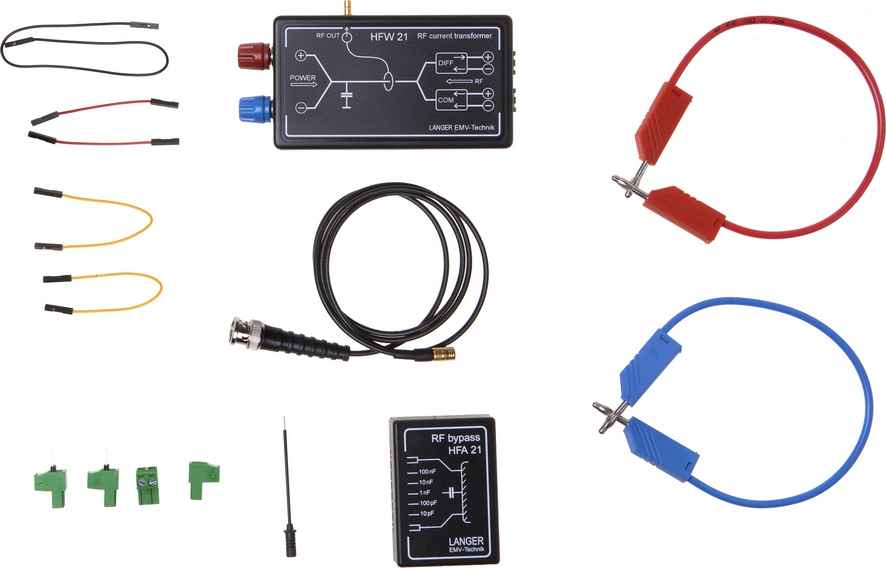

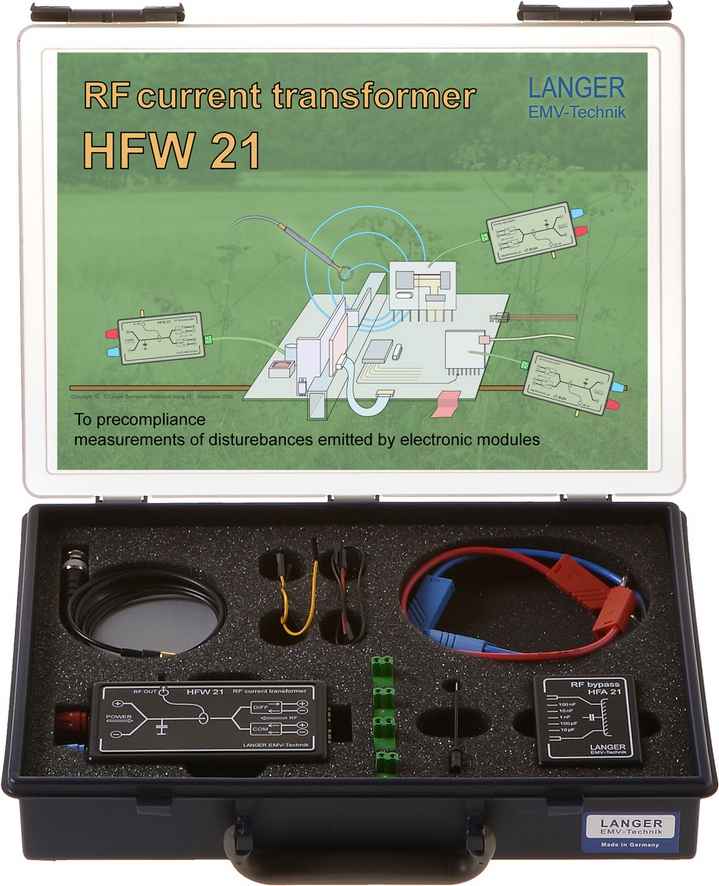

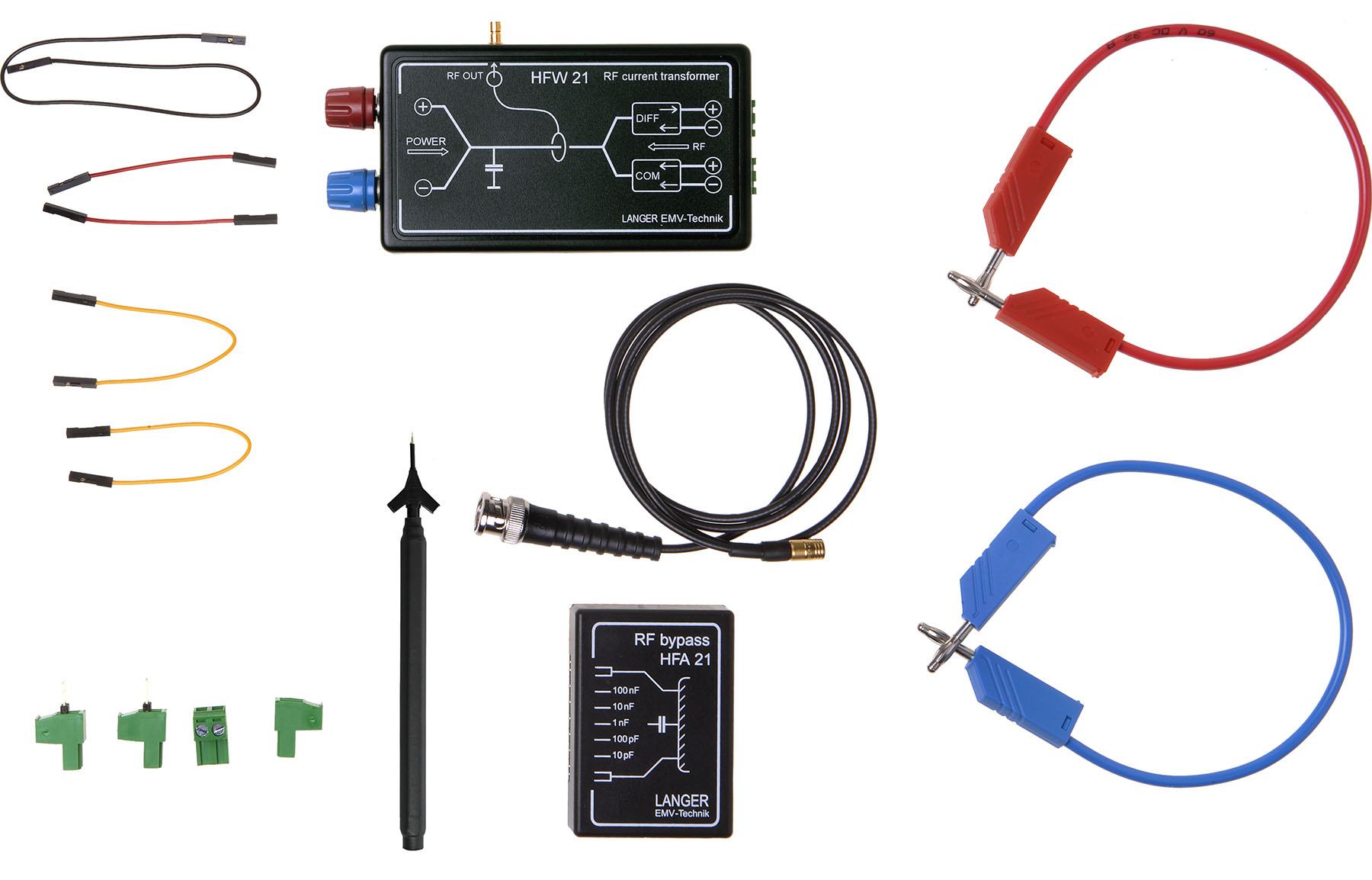

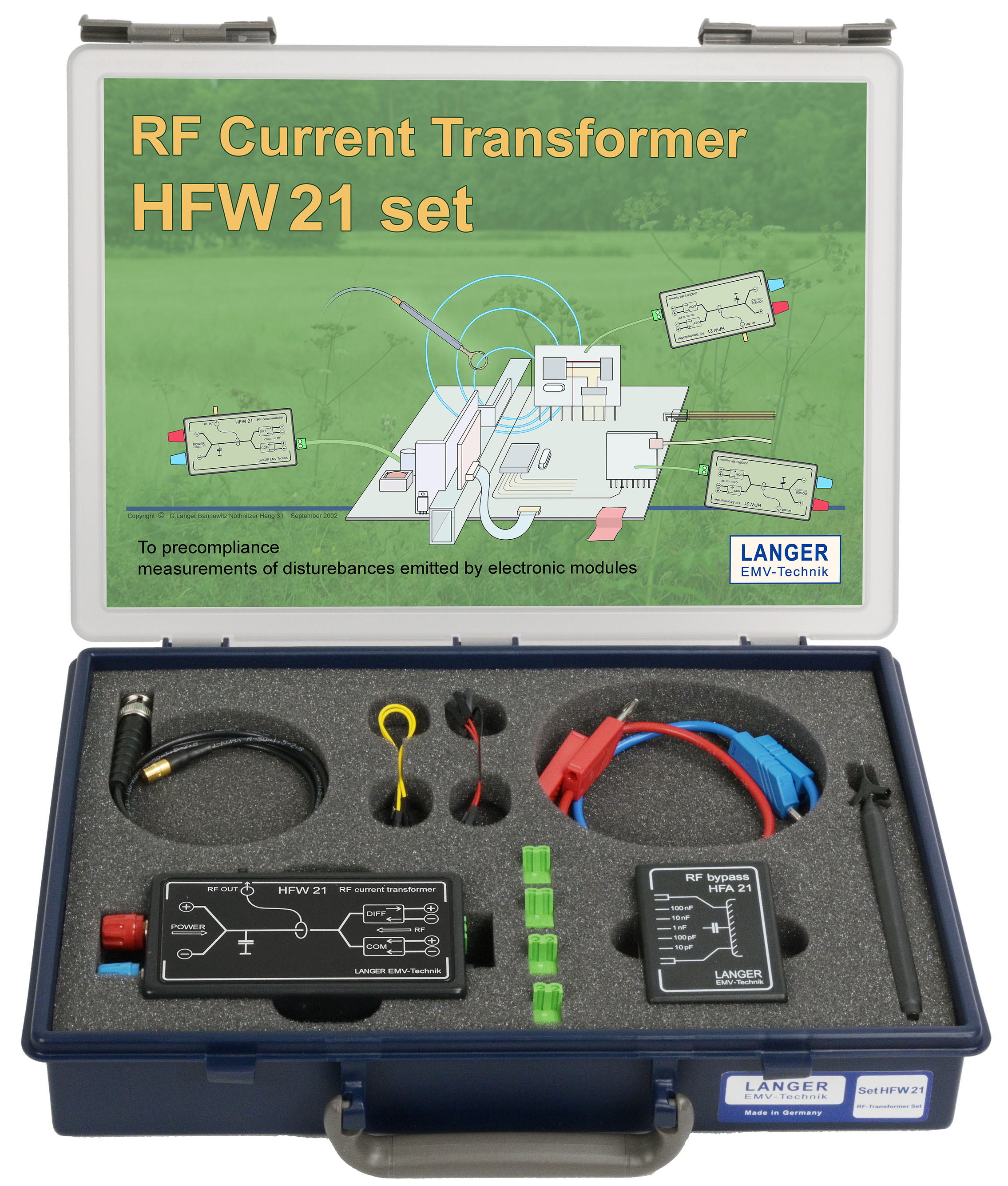

Scope of delivery
|Frequency range||100 kHz - 1 GHz|
Scope of delivery details
The RF current transformer measures high-frequency currents within the device under test. It discharges the currents on the ground plane and allows for the separate measurements of common-mode current and differential-mode current. This can be helpful for the improvement of switching-power supplies.…
