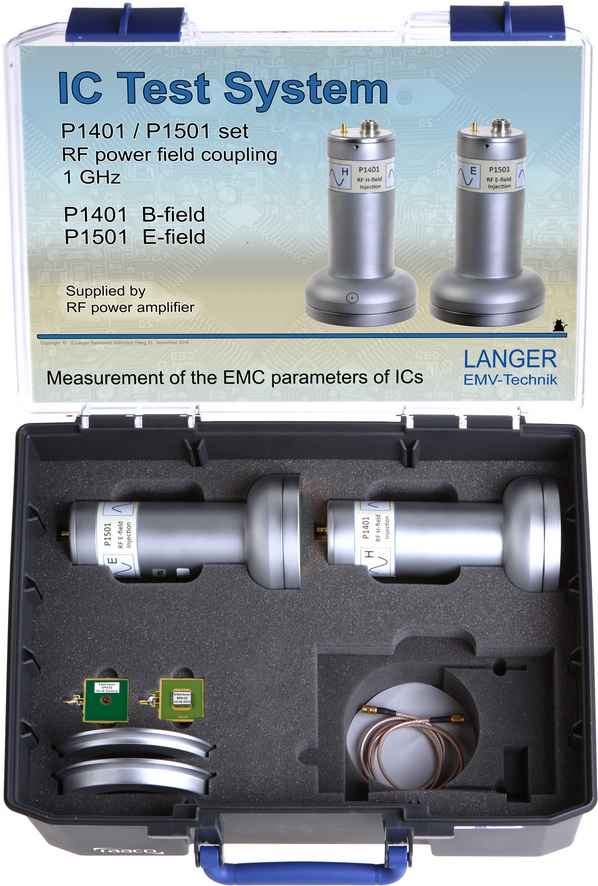

P1401 / P1501 set
RF Field Coupling up to 1 GHz
-
-

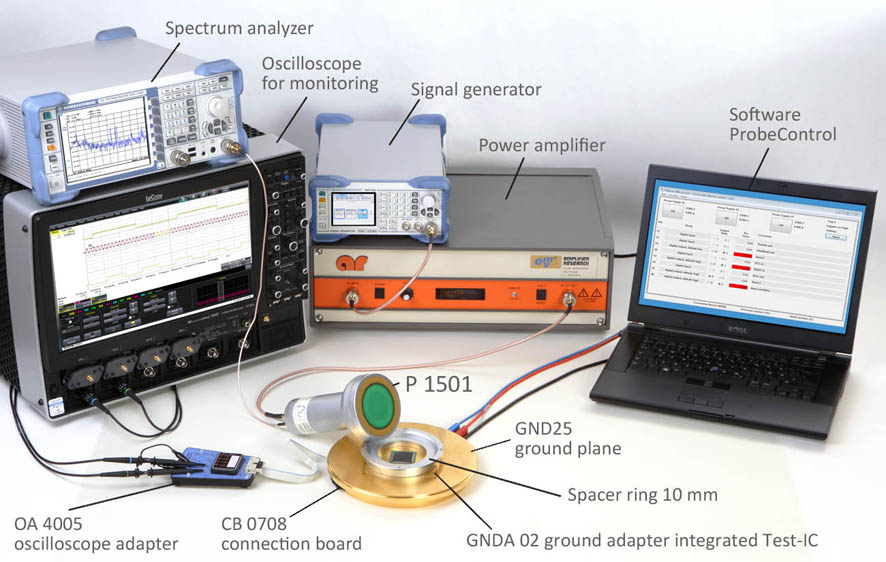

Measurement set-up with P1501 RF E-Field source -

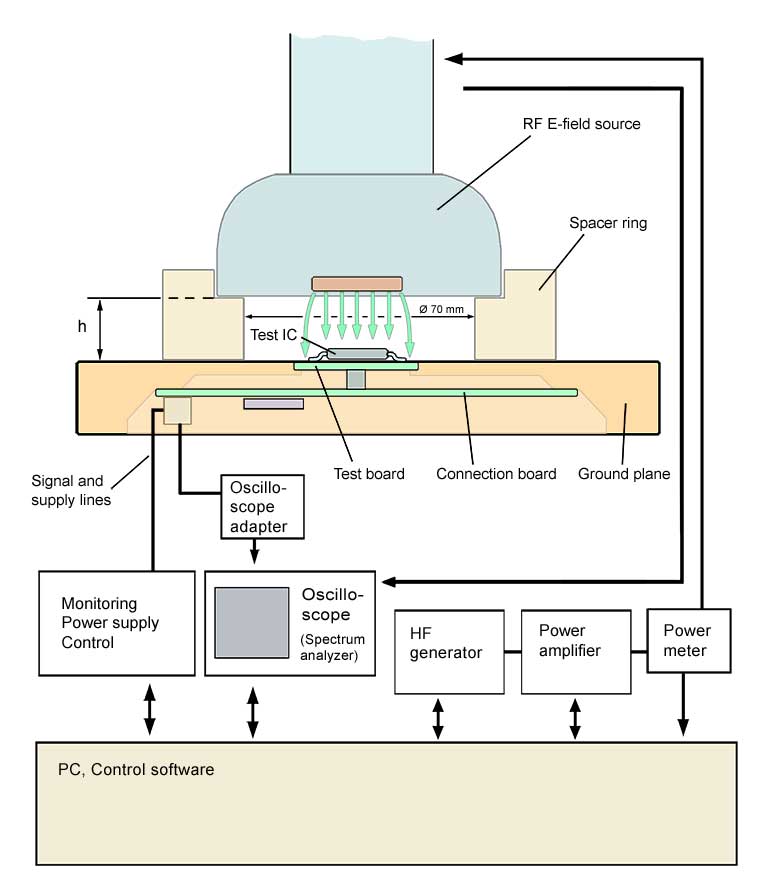

Measurement assembly with P1501 RF E-Field source (schematic) -

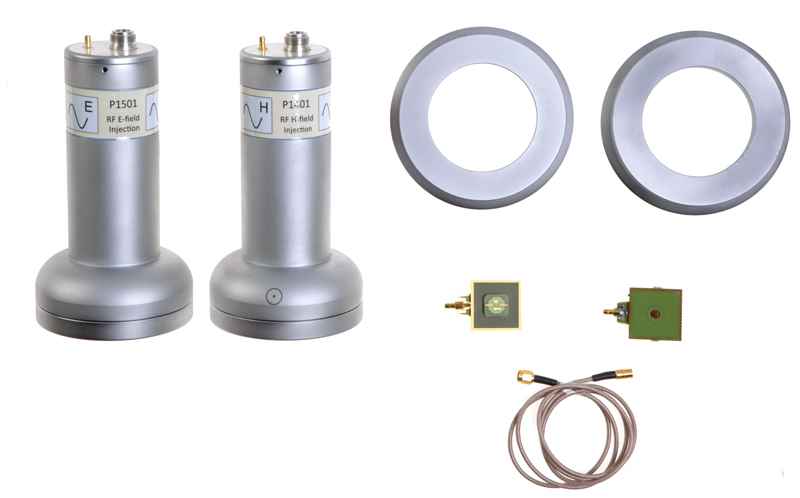

Scope of delivery Set 1401 / 1501 -

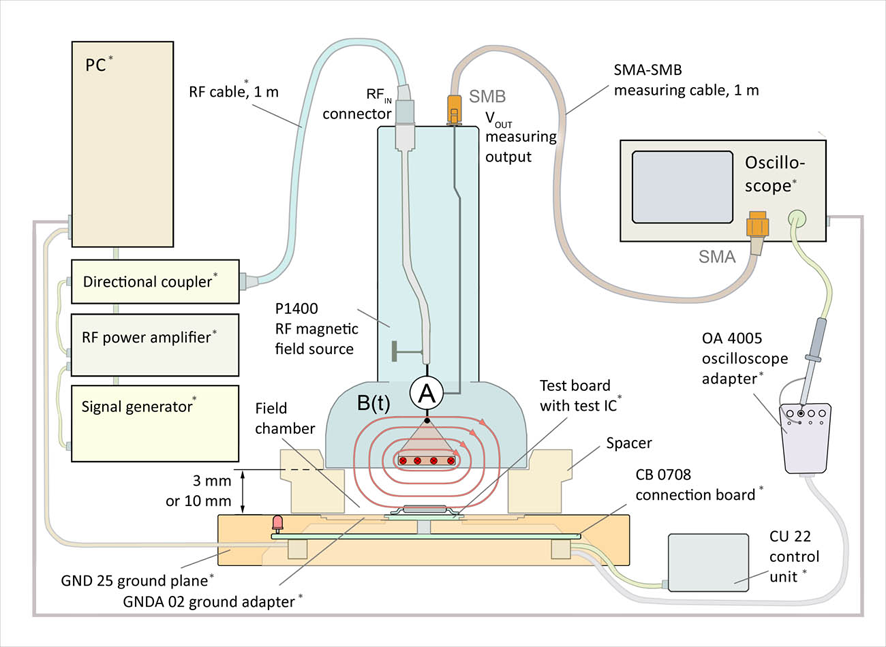

Measurement assembly to RF field injection
![P1401 / P1501 set, RF Field Coupling up to 1 GHz](/fileadmin/Bilder300/2013.11.19 P1401 P1501 Koffer_freigestellt_wPZ.jpg?v=1721026804401)
![Measurement set-up with P1501 RF E-Field source](/fileadmin/Bilder300/IC disturbance immunity_RF coupling_field source_ P1501 set-up_eng_wGM.jpg?v=1721026806847)
![Measurement assembly with P1501 RF E-Field source (schematic)](/fileadmin/Bilder300/2018.03.26 HF-Messplatz P1500-e.jpg?v=1721026806847)
![Scope of delivery Set 1401 / 1501](/fileadmin/Bilder alt_neu/P1401_1501-201311.19-LU-weng.jpg?v=1721026806847)
![Measurement assembly to RF field injection](/fileadmin/Bilder300/IC disturbance immunity_RF coupling_field source_P1400 set-up scheme_eng_wGM.png?v=1721026806847)
Short description
The RF field coupling up to 1 GHz probe set tests the ICs in terms of their immunity under the influence of RF magnetic fields (P1401) or RF E-fields (P1501).
These analyzes are the basis for an EMC compatible development of ICs. Furthermore, the determined RF parameters are helpful for the IC user to develop optimal IC applications.
In addition to the test set-up an ICE1 test environment, a RF generator and a power amplifier are needed.
Field sources can only be run in connection with a short circuit- and open circuit proof power amplifier.
Scope of delivery
- 1x P1401, RF Magnetic Field Source up to 1 GHz
- 1x P1501, RF E-Field Source up to 1 GHz
- 1x D70 h03, Spacer Ring, 3 mm
- 1x D70 h10, Spacer Ring, 10 mm
- 2x SMA-SMB 1 m, SMA-SMB Measuring Cable
- 1x P1401 / P1501 case, System Case
- 1x P1400 / P1500 m, P1401 / P1501 Set User Manual
Scope of delivery details
-

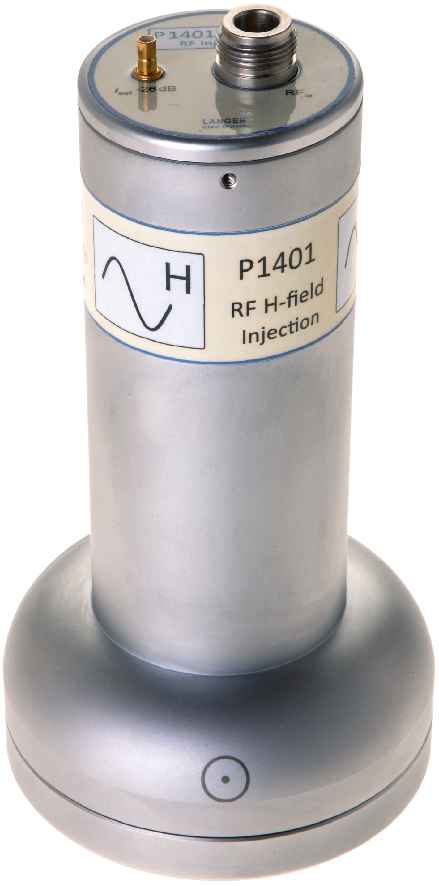

P1401
RF Magnetic Field Source up to 1 GHz
The P1401 RF magnetic field source tests the ICs in terms of their immunity under the influence of RF magnetic fields. The IC to be tested is tested while it is running. The P1401 magnetic field source is operated in connection with a power amplifier and a RF signal generator.
-

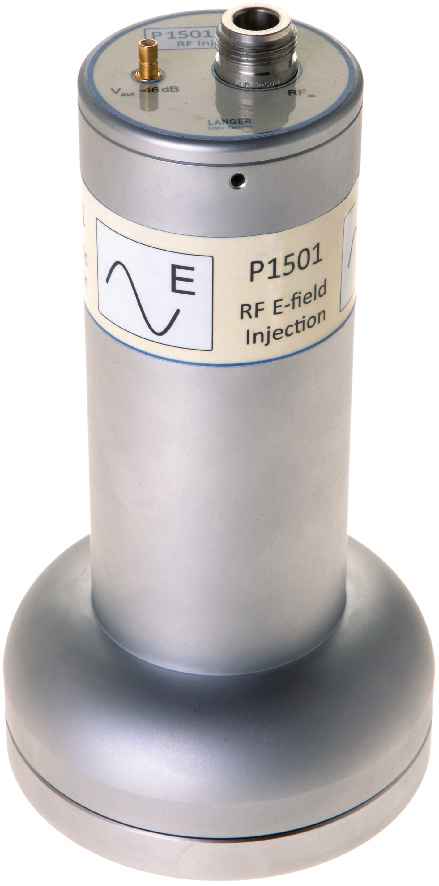

P1501
RF E-Field Source up to 1 GHz
The P1501 RF E-field source tests the ICs in terms of their immunity under the influence of RF E-fields. The IC to be tested is tested while it is running. The P1501 E-field source is operated in connection with a power amplifier and a RF signal generator.
