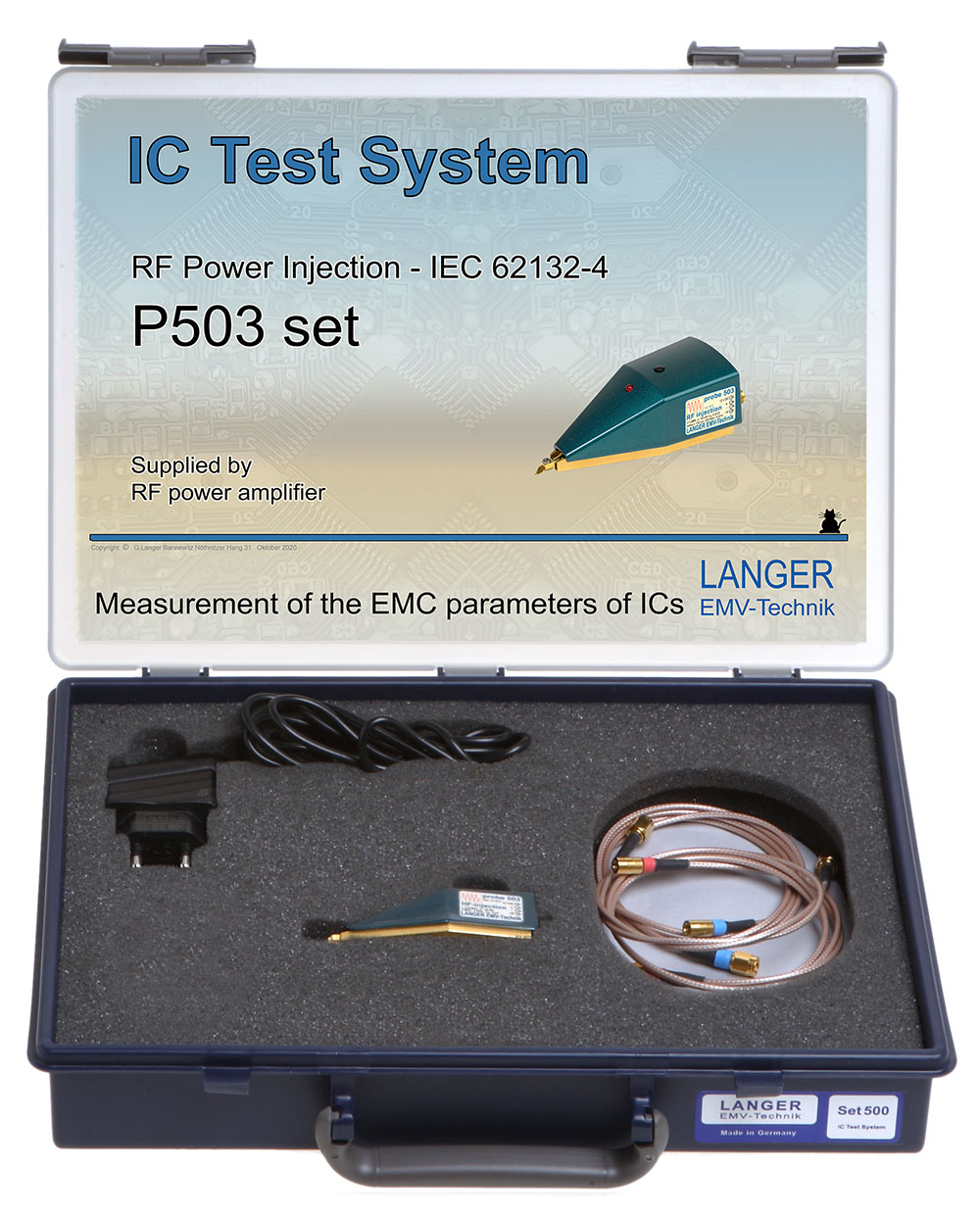

P503 set
RF Power Injection IEC 62132-4 up to 1 GHz
-
-

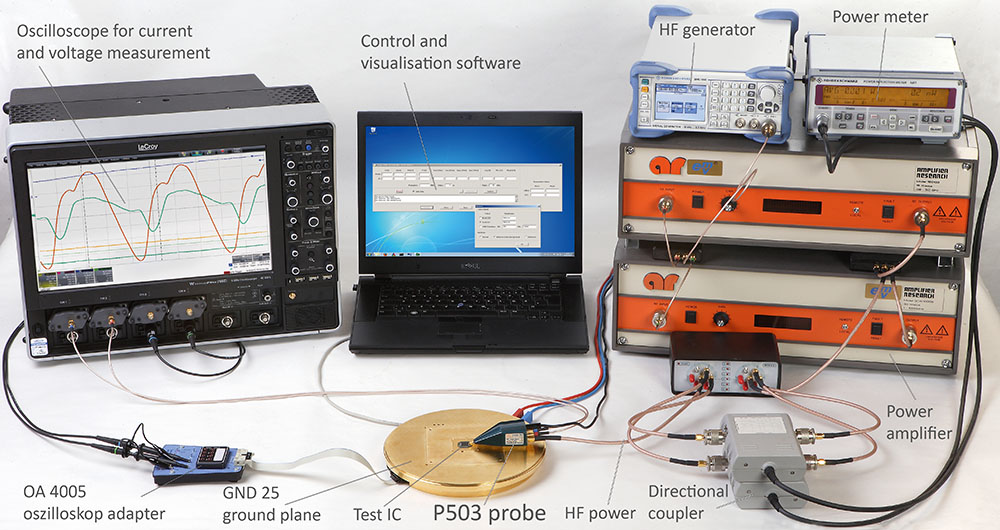

Measurement set-up with P503 probe -

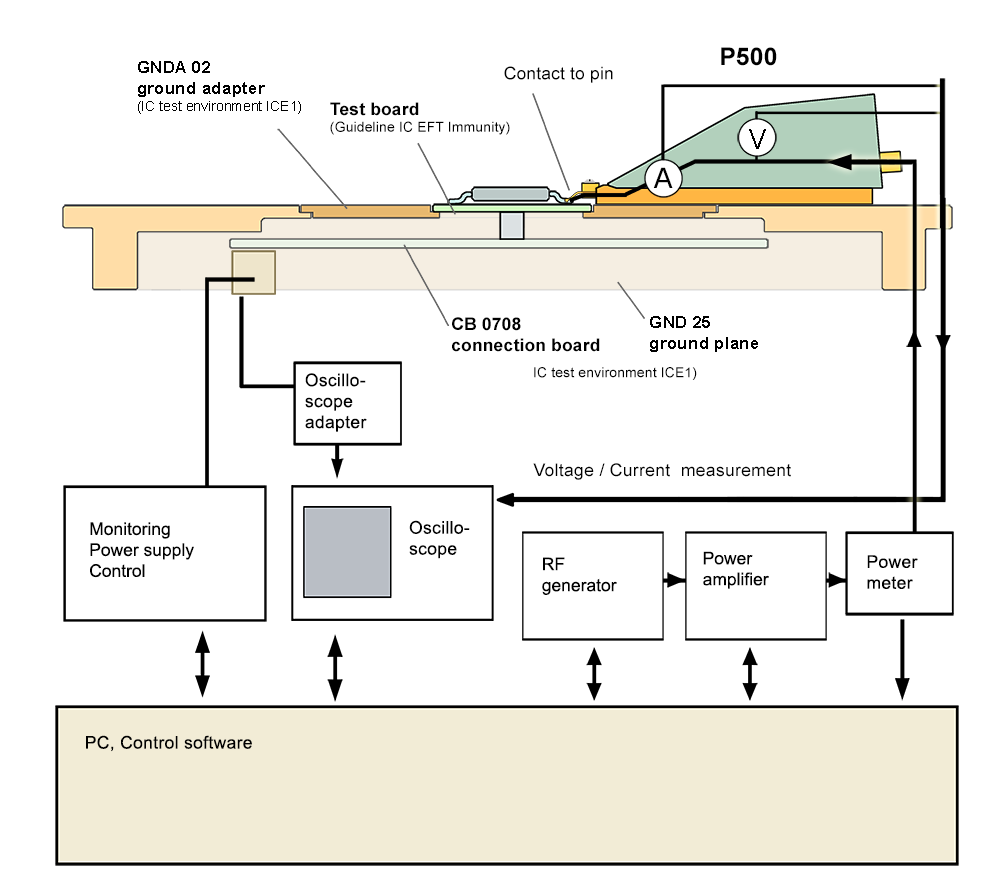

Schematic measurement set up with P500 -

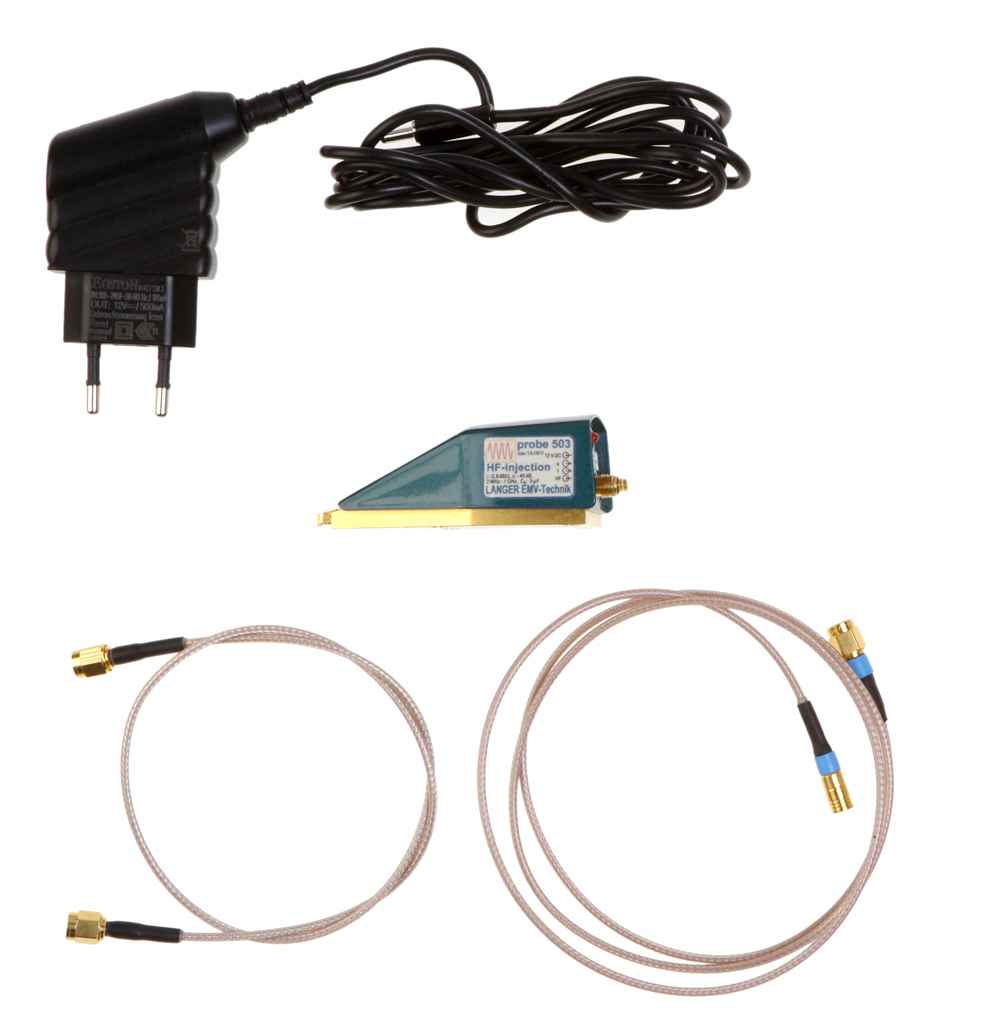

Scope of delivery P503 set
![P503 set, RF Power Injection IEC 62132-4 up to 1 GHz](/fileadmin/Bilder300/2019.11.19 P503 Koffer 039_CS6.jpg?v=1721026804401)
![Measurement set-up with P503 probe](/fileadmin/Bilder300/2020.05.05_P500_A_0349 wen _GM.jpg?v=1721026806847)
![Schematic measurement set up with P500](/fileadmin/Bilder300/2019.04.26-04 P500 Meßplatz enw.png?v=1721026806847)
![Scope of delivery P503 set](/fileadmin/Bilder alt_neu/2014-Set-503-L-w.jpg?v=1721026806847)
Short description
The P503 probe set is used for conducted measurements of immunity according to IEC 62132-4. The gained knowledge of immunity parameters allows the IC optimization as well as the definition of the application requirements.
Scope of delivery
- 1x P503, DPI Coupling Network up to 1 GHz, 50 V
- 1x SMA-SMA 1 m ds, SMA-SMA Double-Shielded Measurement Cable
- 2x SMA-SMB 1 m ds, SMA-SMB Double-Shielded Measurement Cable
- 1x NT FRI EU, Power Supply Unit
- 1x P500 case, System Case
- 1x P500 m, P500 Set User Manual
