RF-E 03

E-Field Probe 30 MHz up to 3 GHz

Send enquiry Datasheet
  • RF-E 03, E-Field Probe 30 MHz up to 3 GHz

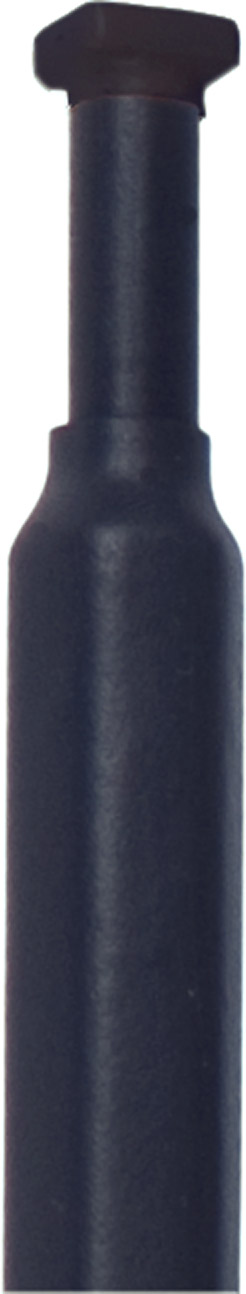

  • Probe head
    Probe head
RF-E 03, E-Field Probe 30 MHz up to 3 GHz Probe head
  • RF-E 03, E-Field Probe 30 MHz up to 3 GHz
  • Probe head
Short description

The electrode underneath the RF-E 03 probe head is approx. 4 x 4 mm. With it small E field sources can be localized, e.g. conducting paths, single component of Printed circuit boards. The RF-E 03 probe was developed for Langer scanner.

The RF-E 03 is a passive near field probe. Normally the probe head is positioned directly on the measured object (high electrical field strength). The near field probe is small and handy. It has a sheath current attenuation and is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. The E field probe has an internal terminating resistance.

Technical parameters
Frequency response E- field correction curve [dBµV/mm] / [dBµV] Measuring principles
Frequency range 30 MHz - 3 GHz
Connector - output SMB, male, jack
Electrode surface area ≈ (4 x 4) mm
Frequency response Frequency response
E- field correction curve [dBµV/mm] / [dBµV] E- field correction curve [dBµV/mm] / [dBµV]

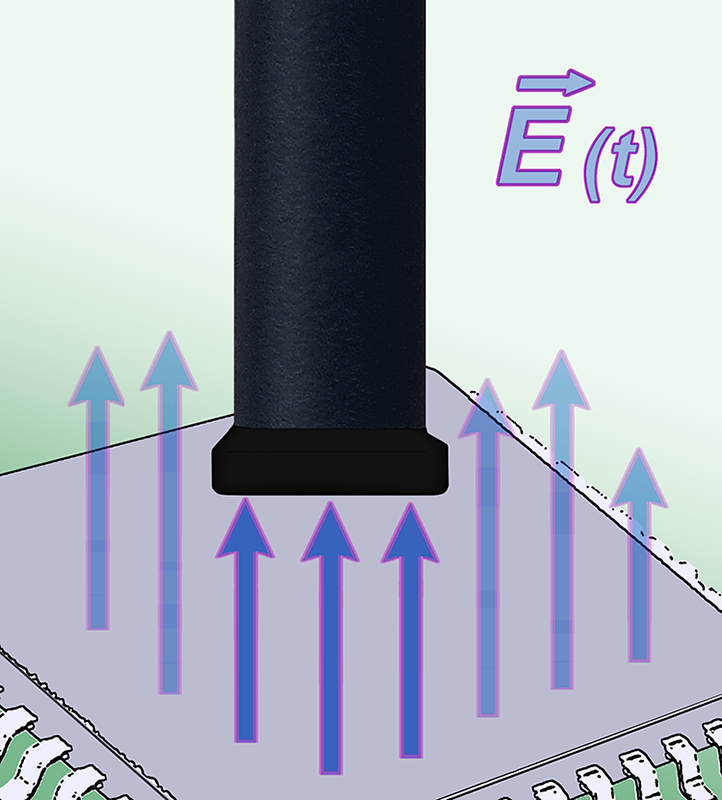

Measuring principles Measuring principles
