PA 2522 set
Preamplifier 10 MHz up to 22 GHz
-
-

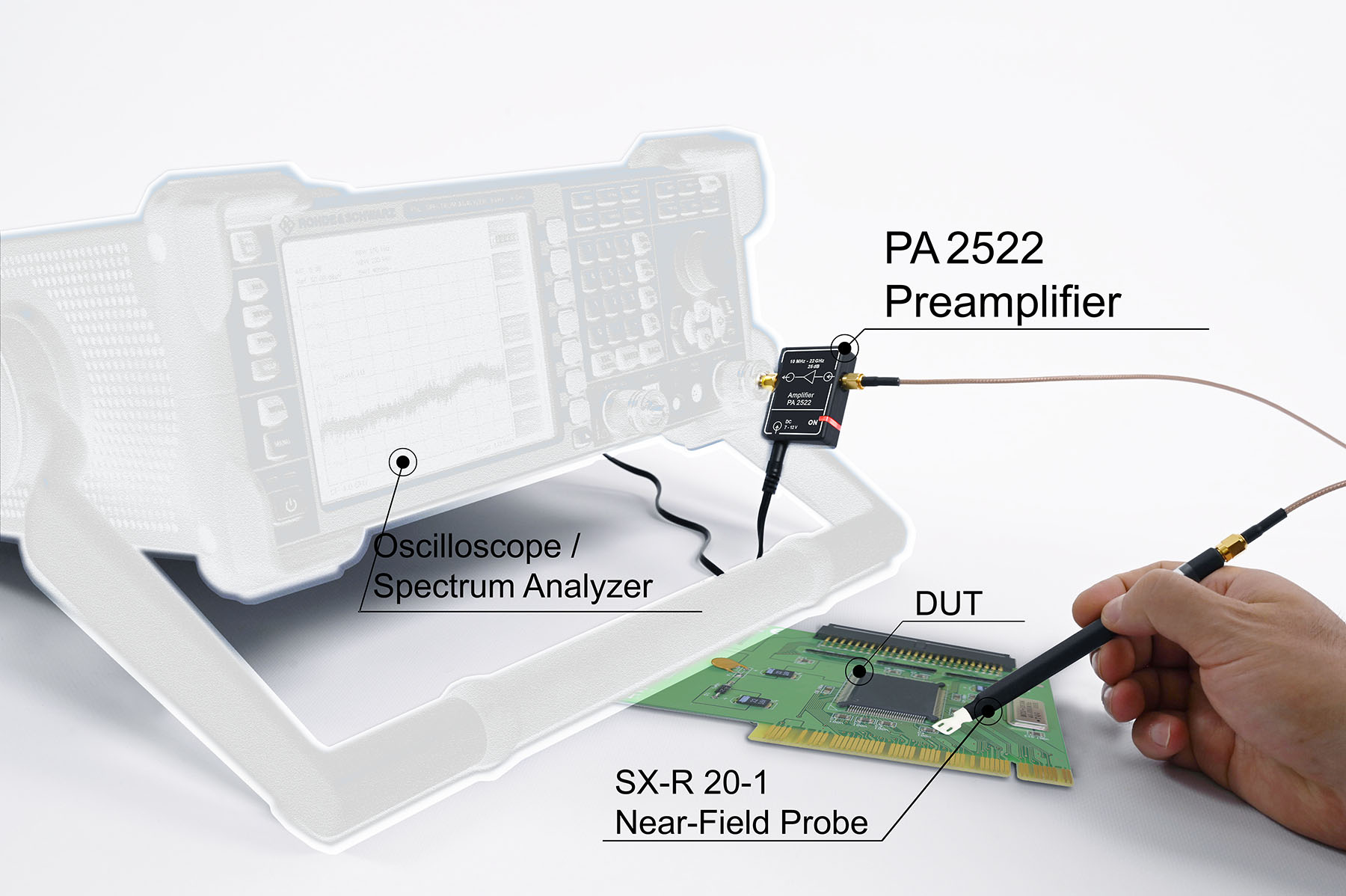

Measurement set-up with PA 2522 -
Scope of Delivery
Short description
The PA 2522 preamplifier was designed for the amplification of measuring signals, e.g. weak signals of near-field probes with high resolution. The PA 2522 is to be used with the 50 ohm input of a spectrum analyzer or an oscilloscope and is powered by the plug-in power supply. With the correct cable a near-field probe can be connected to the input of the preamplifier. Input and output of the PA 2522 are SMA connectors.
Scope of delivery
- 1x PA 2522, Preamplifier 10 MHz up to 22 GHz
- 1x NT FRI EU, Power Supply Unit
- 1x Case 5, System Case Near-Field Probes for 5 Probes
Recommended products
Technical parameters
| Frequency range | 10 MHz - 22 GHz |
| Gain | 25 dB |
| Weight | 400 g |
