HR-E 40-1 set
Near-Field Probe Set up to 40 GHz E-field
-
-

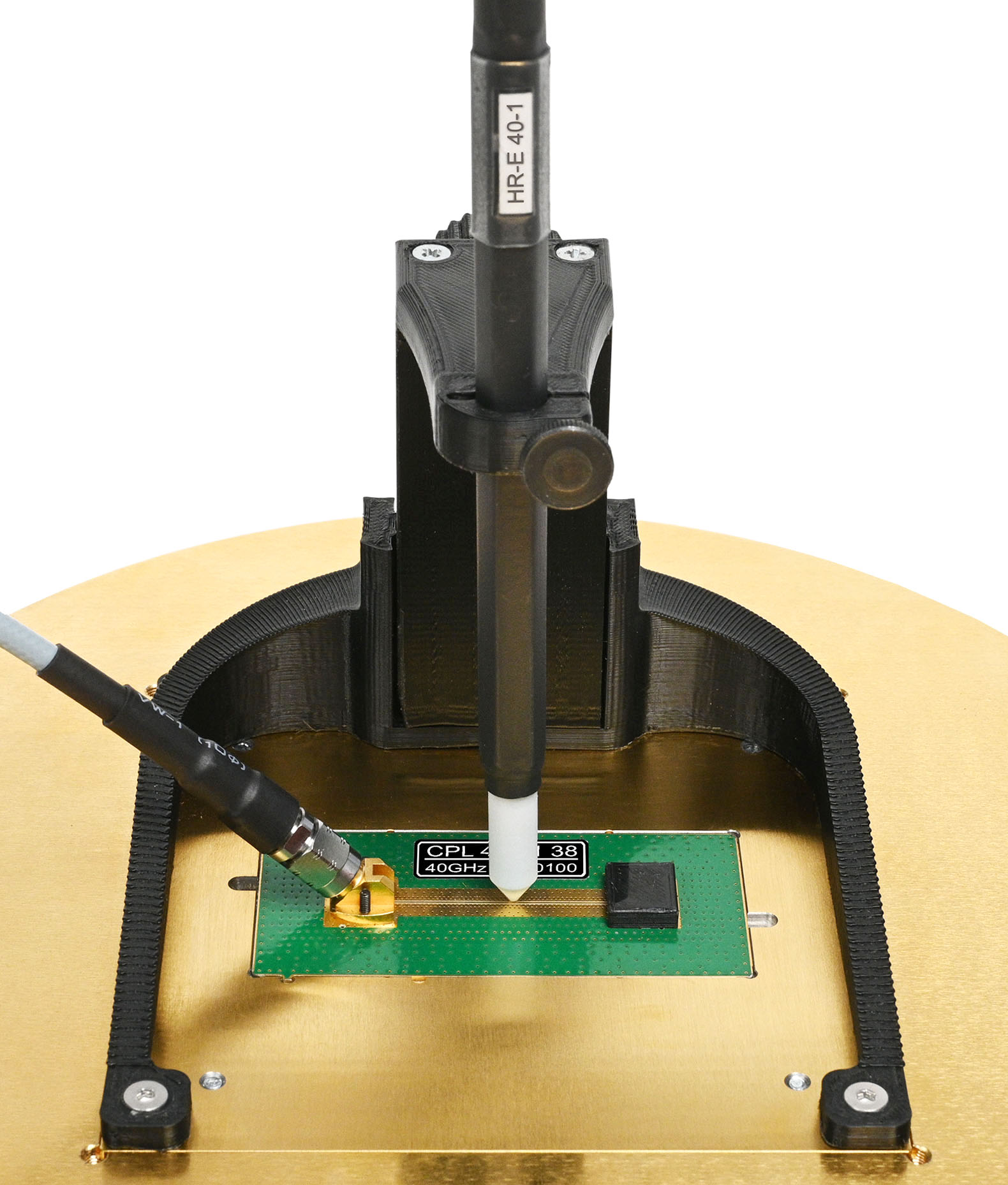

Measurement setup E-field probe HR-E 40-1 on 40 GHz coplanar line
Short description
The HR-E 40-1 set contains the HR-E 40-1 E-field probe. With this field probe measurements up to 40 GHz can be performed.
The special probe head of the HR near-field probe enables measurements to be taken directly on individual conductor tracks to localize E-field sources.

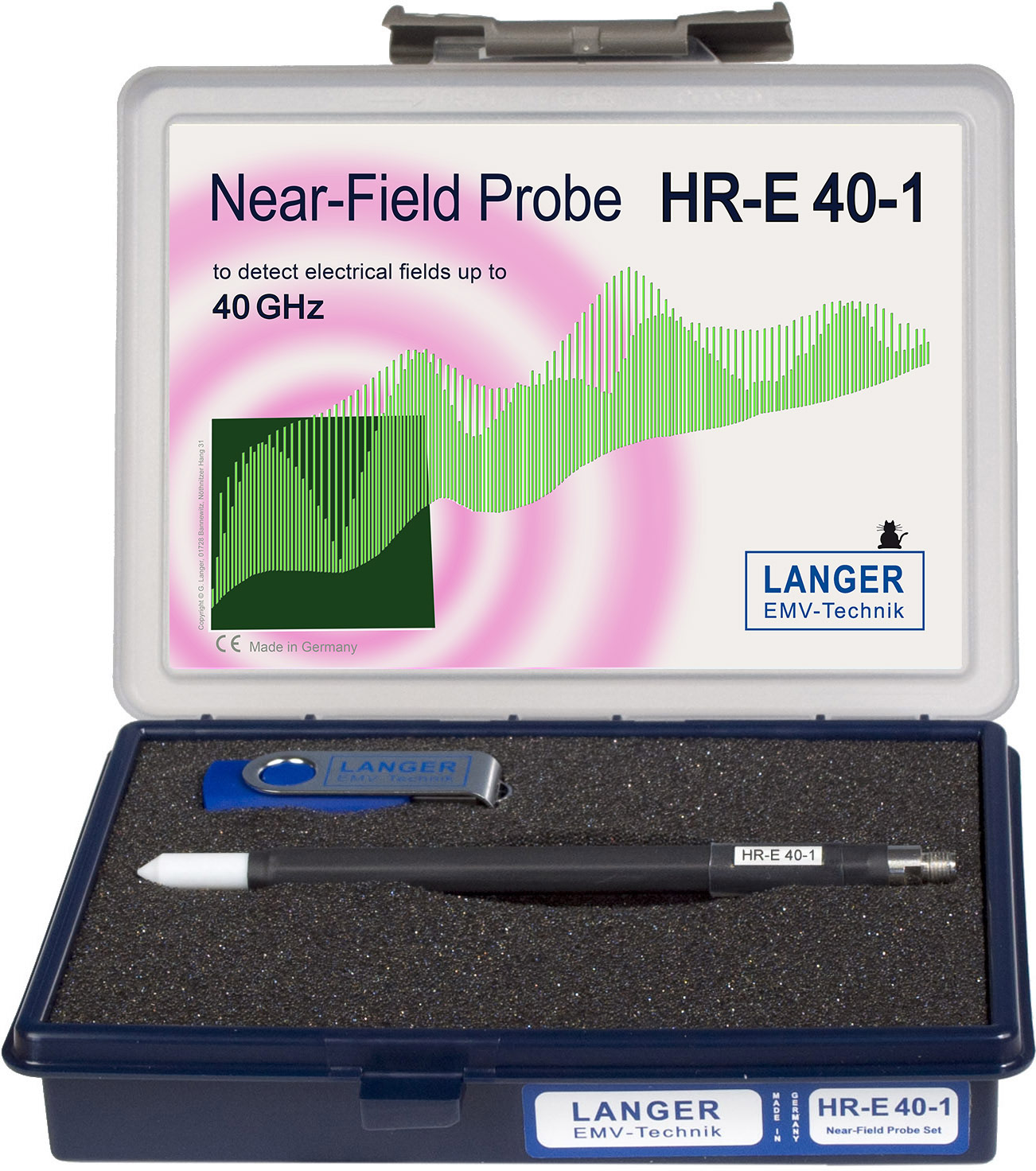

Scope of delivery
- 1x HR-E 40-1, E-Field Probe up to 40 GHz
- 1x CS-ESA Viewer, ChipScan-ESA Viewer Software / USB
- 1x HR-E char, HR-E 40-1 Characteristic
- 1x HR-E 40-1 m, User manual
- 1x Case 4, System Case Near-Field Probes for 4 probes
Recommended products
Technical parameters
| upper cut-off frequency | 40 GHz |
| Resolution | 0.2 mm |
| Connector - output | 2.92 mm (K), female, jack |
