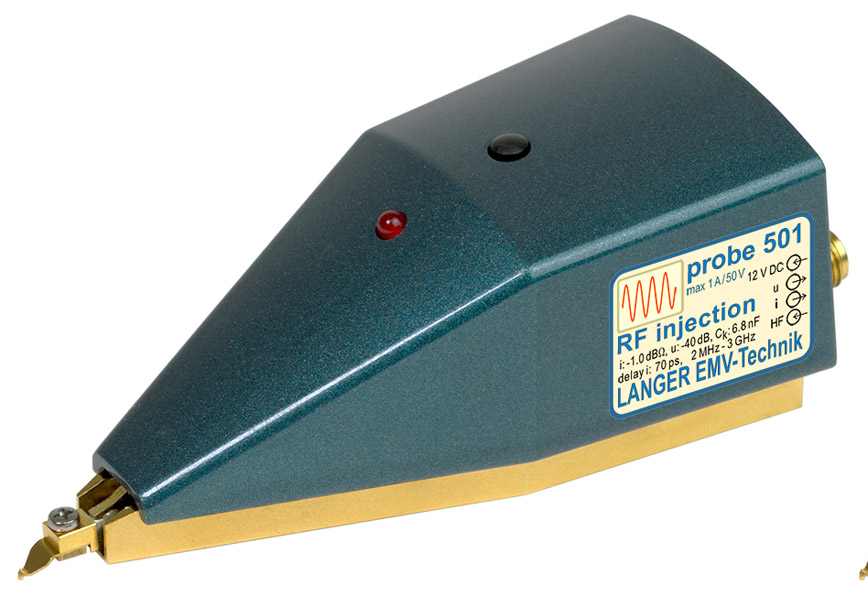

P501
DPI Coupling Network up to 3 GHz, 50 V
Short description
The P501 DPI coupling network is designed for RF direct power injection (DPI) in IC pins according to IEC 62132-4. Current and voltage can be measured seperately during the power injection via integrated measuring outputs. The P501 coupling network is connected to a power amplifier.
Technical parameters
| Coupling capacity | 3 µF |
| Voltage probe | without preamplifier |
| Frequency range | 16 kHz ... 3 GHz |
| Measurement output | 50Ω, SMB |
| Transfer factor | -40 dB |
| Ammeter /current probe | with preamplifier |
| -1 dB compression point (output) | 120 dBµV |
| Frequency range | 2 MHz ... 3 GHz |
| IP3 | 134 dBµV |
| Correction curve R (2 MHz - 40 MHz) [dBΩ] | characteristic curve |
| Correction curve R (40 MHz - 3 GHz) dBΩ, typical | 0 dBΩ ( = 1 V/A) |
| Measurement output | 50Ω, SMB |
| Noise figure | 4.5 dB |
| Delay from current to voltage, typical | 135 ps |
| Supply voltage | 12 V / DC |
| Max. forward power | 30 W |
| Max. input voltage RF | 50 Veff |
| Max. input current RF | 1 A |
| Connector - input | 50Ω, SMA |

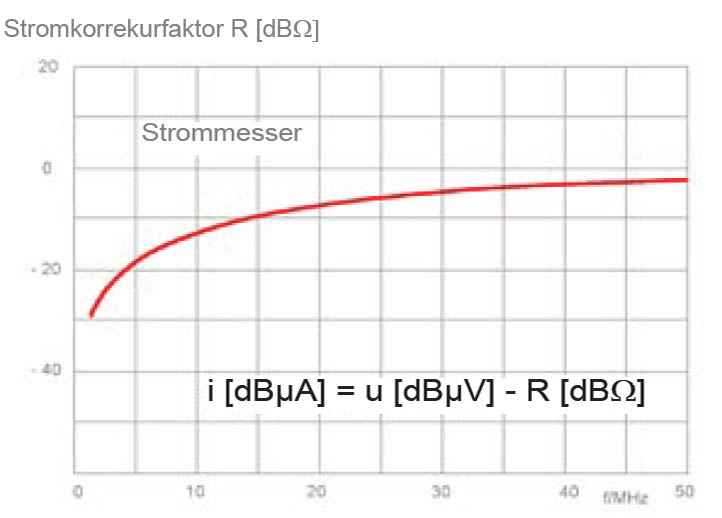

| Frequency response (detail) |
|
| Equivalent circuit |
|

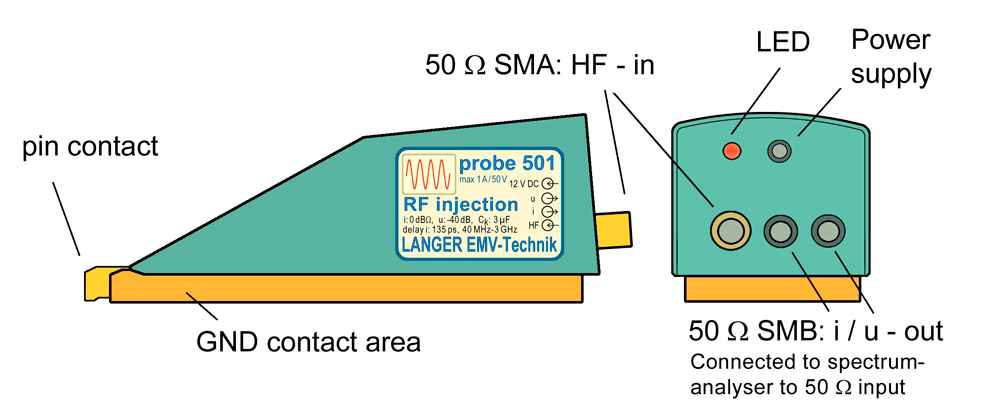

| Design, view 1 |
|
