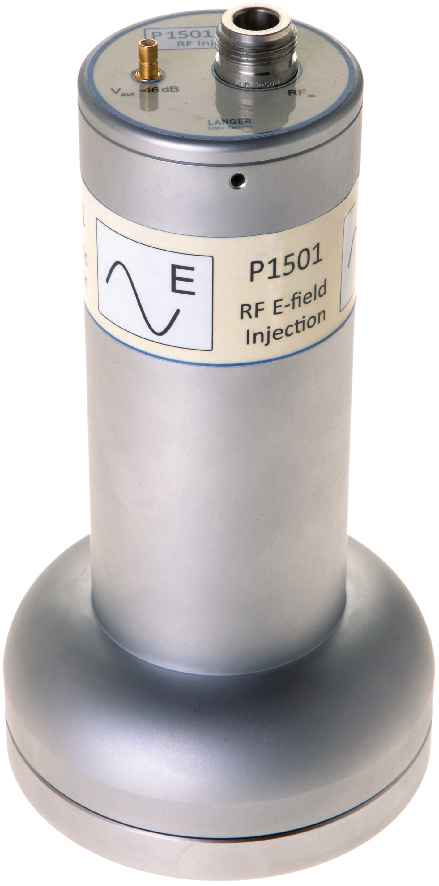

P1501
RF E-Field Source up to 1 GHz
Short description
The P1501 RF E-field source tests the ICs in terms of their immunity under the influence of RF E-fields. The IC to be tested is tested while it is running.
The P1501 E-field source is operated in connection with a power amplifier and a RF signal generator.
Attention: The largest part of the fed power is reflected by the probe (no 50 Ω adaptation). The used power amplifier must be designed for it.
Technical parameters
| Frequency range | 0 ... 1 GHz |
| Input impedance | 5 kΩ |
| Generated electric field strength E (h = 10 mm) | 14 kV/m |
| Generated electric field strength E | 47 kV/m |
| Voltage probe | 5 kΩ |
| Correction factor | 60 dB |
| Measurement output | 50 Ω, SMB |
| Max. forward power | 100 W |
| Connector - input | N-Connector (50 Ω) |
| Weight | 700 g |
| Sizes (L x W x H) | (180 x 96 x 96) mm |

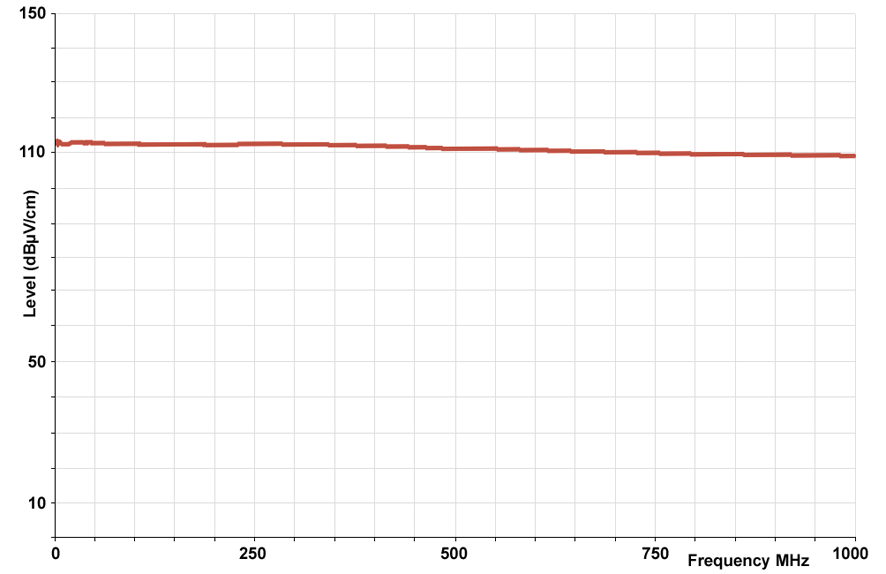

| Frequency response |
|

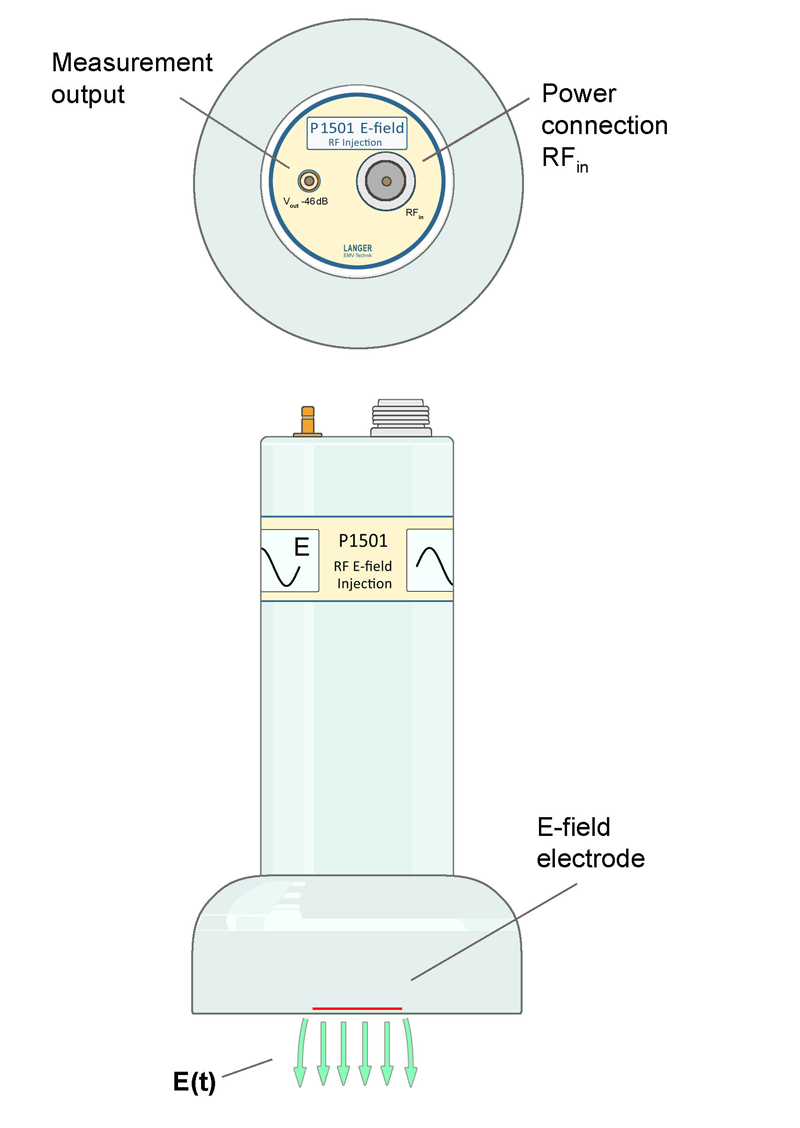

| Design, view 1 |
|
