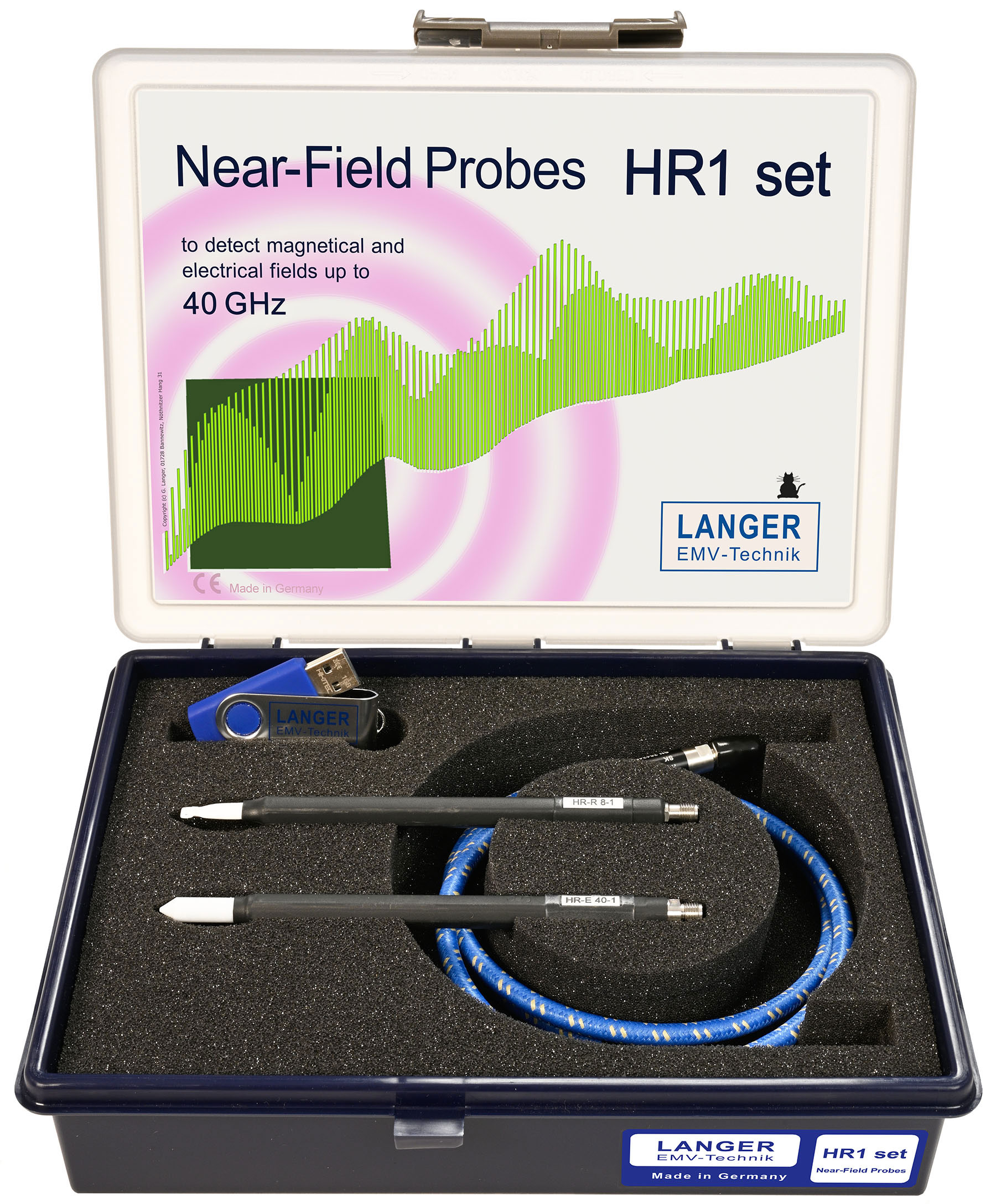

HR1 set
Near-Field Probes up to 40 GHz
-
-
Measurement setup E-field probe HR-E 40-1 on 40 GHz coplanar line -

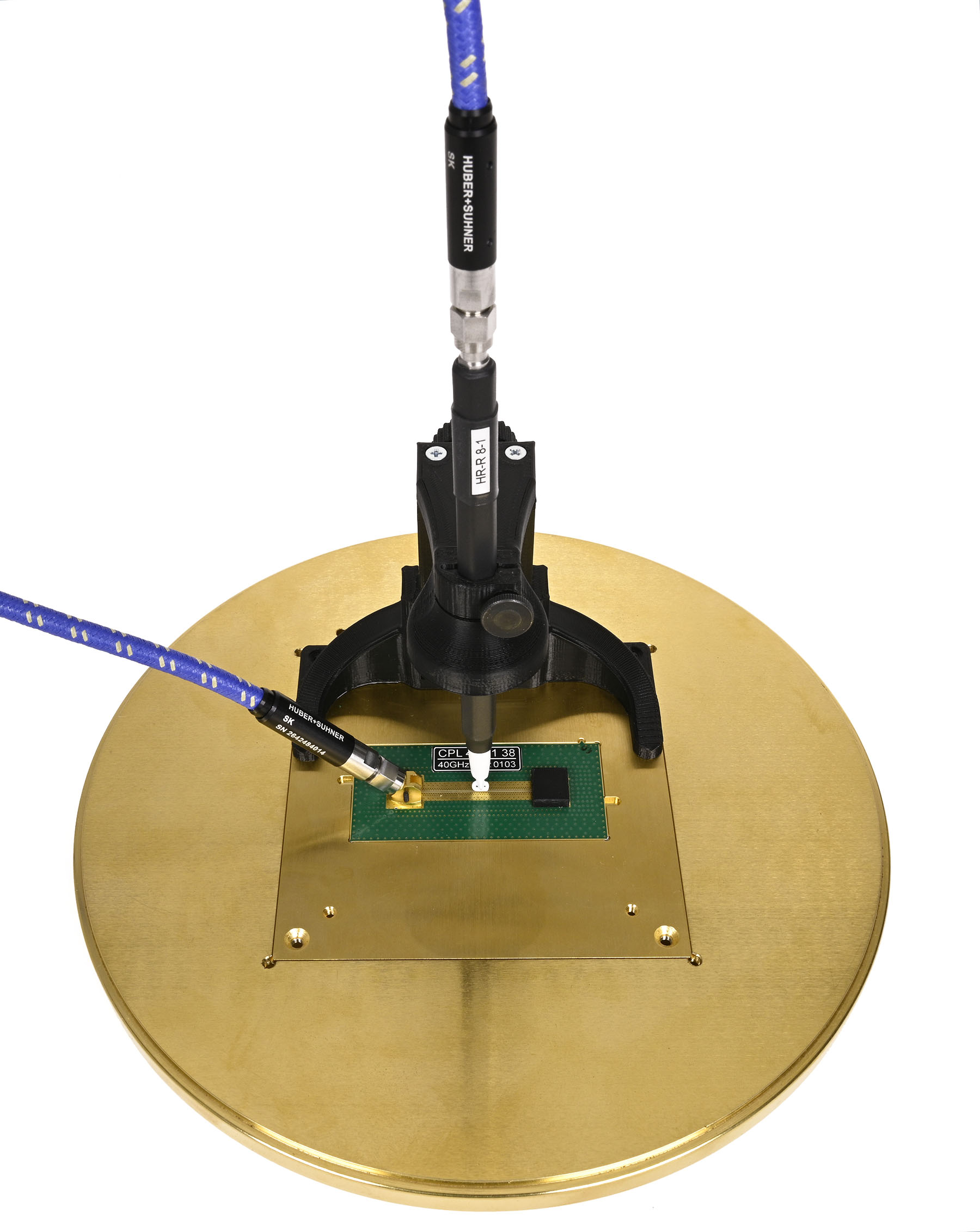

Measurement setup B-field probe HR-R 8-1 over 40 GHz coplanar line -

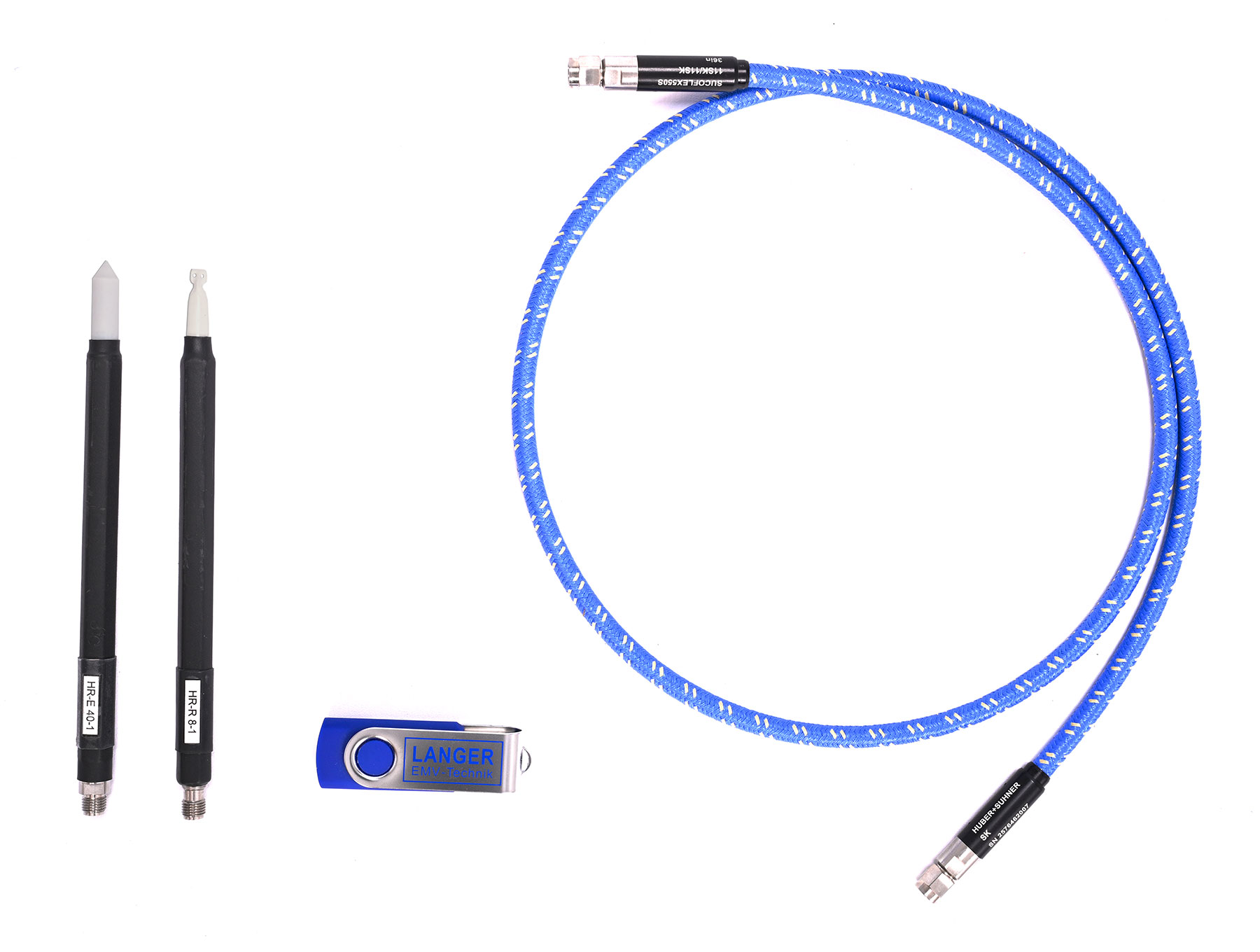

Scope of delivery HR1 set
![HR1 set, Near-Field Probes up to 40 GHz](/fileadmin/2023.07.17-HR1-set_case_with-cable-and-Stick_Langer EMV-Technik_www.jpg?v=1722063603981)
![Measurement setup E-field probe HR-E 40-1 on 40 GHz coplanar line](/fileadmin/Bilder300/2022.03.16 HR-E 40-1_CPL 40-01 38_Messaufbau_Ausschnitt_6021.jpg?v=1722063606464)
![Measurement setup B-field probe HR-R 8-1 over 40 GHz coplanar line](/fileadmin/Bilder300/2022.11.24 HR-R 8-1_mit Probehalter über Copolarline_CPL 40-01 38_Messaufbau_DSC1855.jpg?v=1722063606464)
![Scope of delivery HR1 set](/fileadmin/2023.07.19-HR1-set_LU_Langer-EMV-Technik_www.jpg?v=1722063606464)
Short description
The HR1 set contains one E-field probe HR-E 40-1 and one magnetic field probe HR-R 8-1 each for the development-accompanying measurement of magnetic and electric field in the frequency range up to 40 GHz.
Scope of delivery
- 1x HR-R 8-1, Near-field probe up to 40 GHz B-field
- 1x HR-E 40-1, E-Field Probe up to 40 GHz
- 1x HR SF550S, Microwave Cable up to 40 GHz
- 1x CS-ESA Viewer, ChipScan-ESA Viewer Software / USB
- 1x HR-E char, HR-E 40-1 Characteristic
- 1x HR-R char, HR-R 8-1 Characteristic
- 1x HR1 set qg, Quick Guide
- 1x HR-R 8-1 m, User manual
- 1x HR-E 40-1 m, User manual
- 1x A5 case, System case
Recommended products
Technical parameters
upper cut-off frequency | 40 GHz |
Connector - output | 2.92 mm (K), female, jack |
Scope of delivery details
-
HR-R 8-1
Near-field probe up to 40 GHz B-field
The HR-R 8-1 is a passive near-field probe for measuring magnetic fields up to 40 GHz. The measuring tip is decoupled from the cable shield by special damping systems. In addition, the probe contains a current attenuator. The probe has a internal matching network to 50 ohm.
-
HR-E 40-1
E-Field Probe up to 40 GHz
The HR-E 40-1 is a passive near-field probe for measuring electric fields up to 40 GHz. The measuring tip is decoupled from the cable shield by special damping systems. In addition, the probe contains a current attenuator.
-
HR SF550S
Microwave Cable up to 40 GHz
The HR SF550S is a microwave cable with 2.92 mm male connectors and a maximum frequncy of 40 GHz. The HR SF550S is recommended for measurements with the HR-E 40-1 40 GHz near-field probe. Country of manufacture: Switzerland
